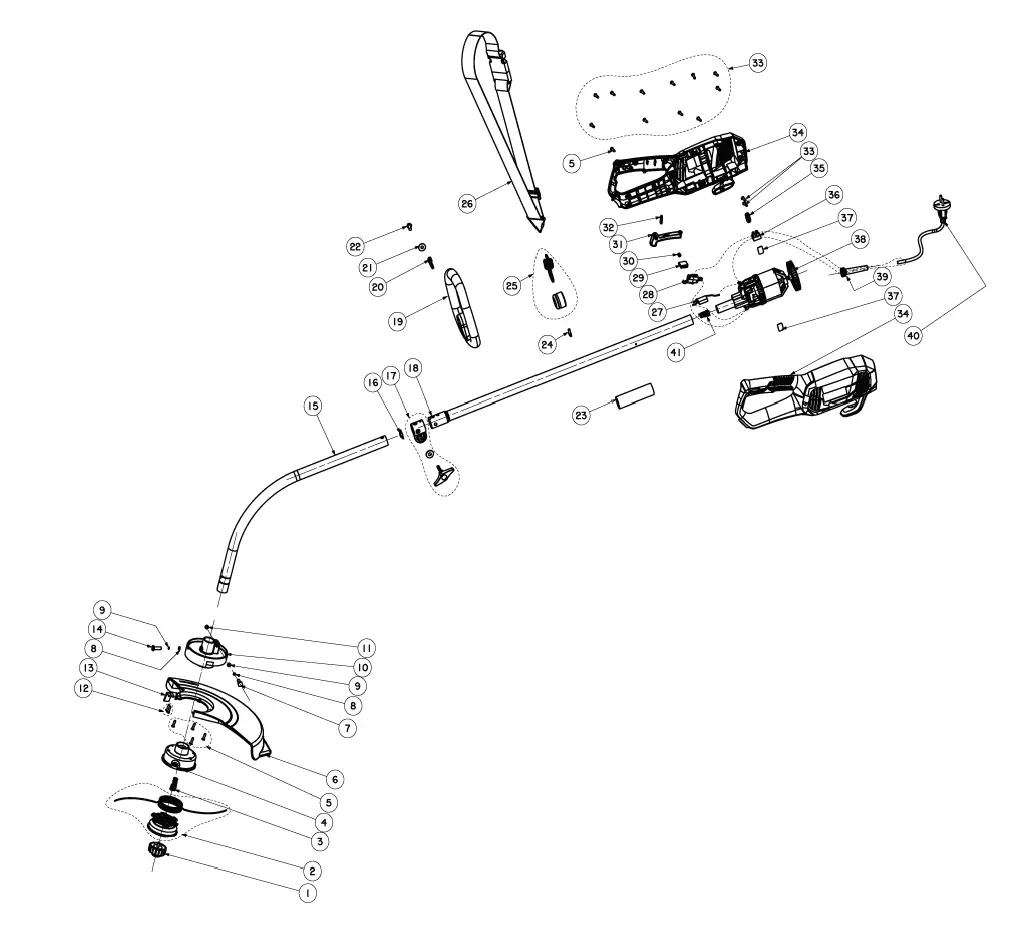

RLT 7038 (5133001243) 600W
| П-п | Арт | Название |
|---|---|---|
| 1 | KNOB 4058546118273 | |
| 2 | RAC120 SPOOL FITS RLT70381038 4892210817686 | |
| 3 | SPRING 4058546118280 | |
| 4 | HOUSING 4058546118297 | |
| 5 | SCREW 4058546117856 | |
| 6 | GUARD 4058546118303 | |
| 7 | SCREW 4058546118310 | |
| 8 | WASHER 4058546118327 | |
| 9 | WASHER 4058546118334 | |
| 10 | SAFTY GUARD 4058546118341 | |
| 11 | SPRING 4058546118129 | |
| 11 | NUT 4058546118358 | |
| 12 | SCREW 4058546118365 | |
| 13 | BLADE 4058546118372 | |
| 14 | SCREW 4058546118389 | |
| 15 | TUBE 4058546118396 | |
| 16 | SPRING 4058546118129 | |
| 17 | CLAMP 4058546182250 | |
| 18 | TUBE (two holes) 4058546118020 | |
| 19 | HANDLE 4058546118402 | |
| 20 |  |
KNOB 4058546118419 |
| 21 |  |
WASHER 4058546118426 |
| 22 |  |
BOLT 4058546118433 |
| 23 |  |
BUSHING 4058546118013 |
| 24 |  |
SCREW 4058546118044 |
| 25 |  |
HOOK 4058546118037 |
| 26 |  |
BAND 4058546118051 |
| 27 |  |
CONNECTION CABLE 4058546118006 |
| 28 |  |
SWITCH 4058546117993 |
| 29 |  |
LOCK 4058546117986 |
| 30 |  |
SPRING 4058546117979 |
| 31 |  |
TRIGGER 4058546117948 |
| 32 |  |
SPRING |
| 33 |  |
SCREW 4058546117863 |
| 34 |  |
HOUSING 4058546117870 |
| 35 |  |
CLAMP 4058546182236 |
| 36 |  |
CONNECTION |
| 37 |  |
RUBBER SLEEVE |
| 38 |  |
MOTOR 4058546118440 |
| 39 |  |
CABLE ENTRY SLEEVE 4058546117900 |
| 40 |  |
WIRE 4058546117894 |
| 41 |  |
SPRING 4058546117962 |
