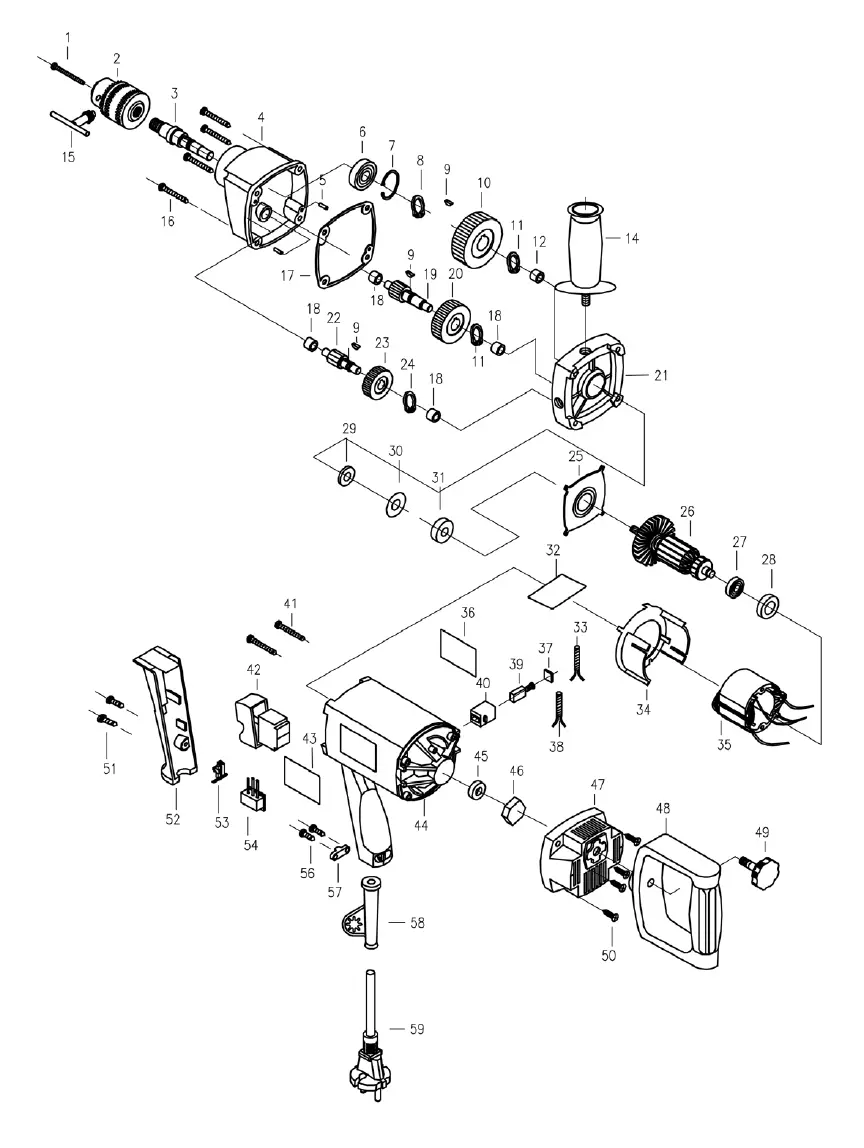

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Countersunk head screw (left)M6X22 |
| 2 |  |
Drill chuck |
| 3 | Spindle | |
| 4 | Gear box | |
| 5 | Parallel pin Φ3X8 | |
| 6 | Ball bearing6002.2RS | |
| 7 | Circlip for hole Φ32 | |
| 8 | Circlip for shalf φ15 | |
| 9 | Key3X3.7X10 | |
| 10 | Gear | |
| 11 | Circlip for shalf φ12 | |
| 12 | Needle bearing HK1012 | |
| 14 | Auxiliary handle | |
| 15 | Chuck key | |
| 16 | Tapping screw ST5x55 | |
| 17 | Gasket | |
| 18 | Needle bearing HK0810 | |
| 19 | 2nd intermediate shaft | |
| 20 | 2nd eintermediate gear | |
| 21 | Gear box cover | |
| 22 | 1st reduction shaft | |
| 23 | 1st intermediate gear | |
| 24 | Circlip for shalf φ10 | |
| 25 | Bearing cover | |
| 26 | Amature230V | |
| 27 | Ball bearing608.2Z | |
| 28 | Bearing bush | |
| 29 | Felt ring φ9Xφ18X4 | |
| 30 | O-ring | |
| 31 | Ball bearing6000.2RS | |
| 32 | Insulanting paper | |
| 33 | Inductor | |
| 34 | Baffle | |
| 35 | Stator 230V | |
| 36 | Rating label | |
| 36 | Rating label | |
| 37 | Brush holder cap | |
| 38 | Inductor | |
| 39 | Carbon brush 230V | |
| 40 | Brush holder | |
| 41 | Tapping screw ST4x55 | |
| 42 | Switch 230v | |
| 43 | Brand label | |
| 44 | Housing Pos.52,44 supplied as a set | |
| 45 | Nut cover | |
| 46 | Hex.nut M8 | |
| 47 | Rear cover | |
| 48 | Spade Handle | |
| 49 | Locking screw | |
| 50 | Tapping screw ST4x16F | |
| 51 | Tapping screw ST4x18 | |
| 52 | Handle Pos.52,44 supplied as a set | |
| 53 | Lock button | |
| 54 | Capacitor | |
| 56 | Tapping screw ST4x16C Included In Pos.57 | |
| 57 | Cord clamp Including Pos.56 | |
| 58 | Cord sleeve | |
| 59 | Cord |
