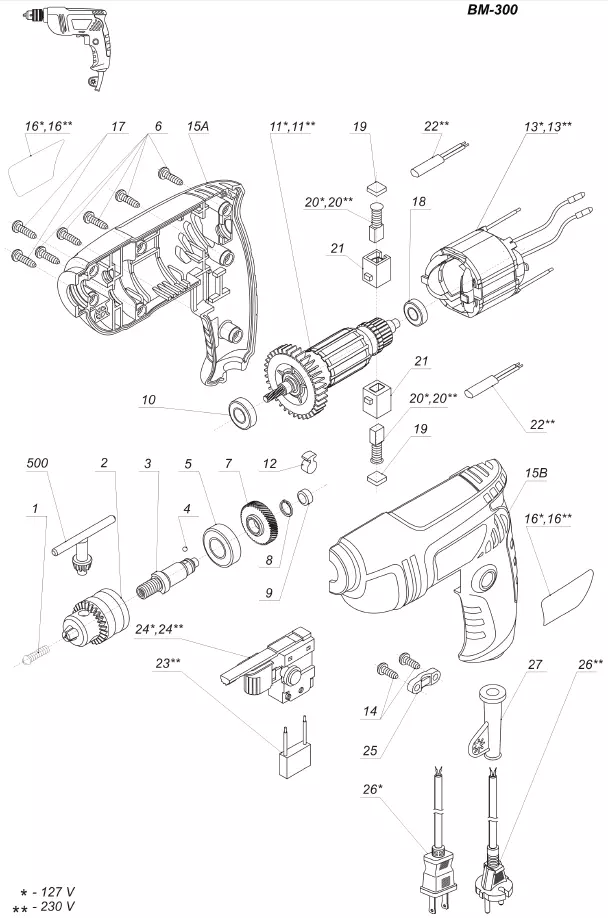

| П-п | Арт | Название |
|---|---|---|
| 1 | Screw M5x18L | |
| 2 | Chuck 6 mm | |
| 3 | Spindle | |
| 4 | Steel ball TP-82 | |
| 4 | Steel ball Ø3 | |
| 5 | Ball bearing 6001.RS | |
| 5 | Ball bearing 6001 | |
| 6 | Screw ST4x18 | |
| 7 | Big gear | |
| 8 | Circlip for shaft Ø10 | |
| 9 | Bronze bush Ø6xØ10x5 | |
| 10 | Ball bearing 608.RS | |
| 11* | Armature 127V | |
| 11** | Armature 230V | |
| 12 | Oiling felt | |
| 13** | Stator 230V | |
| 13* | Stator 127V | |
| 14 | Screw ST4x14 | |
| 15A | Housing A | |
| 15B | Housing B | |
| 15A | Housing A | |
| 15B | Housing B | |
| 16** | Brand label 230V | |
| 16* | Brand label 127V | |
| 17 | Screw ST4x16 | |
| 18 | Ball bearing 626.2RS | |
| 19 | Brush cap | |
| 20** | Carbon brush 230V | |
| 20* | Carbon brush 127V | |
| 21 | Brush holder | |
| 22** | Inductor 230V | |
| 23** | Condenser 0.22uF 230V | |
| 23** | Condenser 0.22μF 230V | |
| 24* | Switch 127V | |
| 24** | Switch 230V | |
| 24* | Switch 127V | |
| 25 | Cord clip | |
| 26* | Cord 127V | |
| 26** | Cord 230V | |
| 27 |  |
Rubber sleeve |
| 500 |  |
Chuck key |
