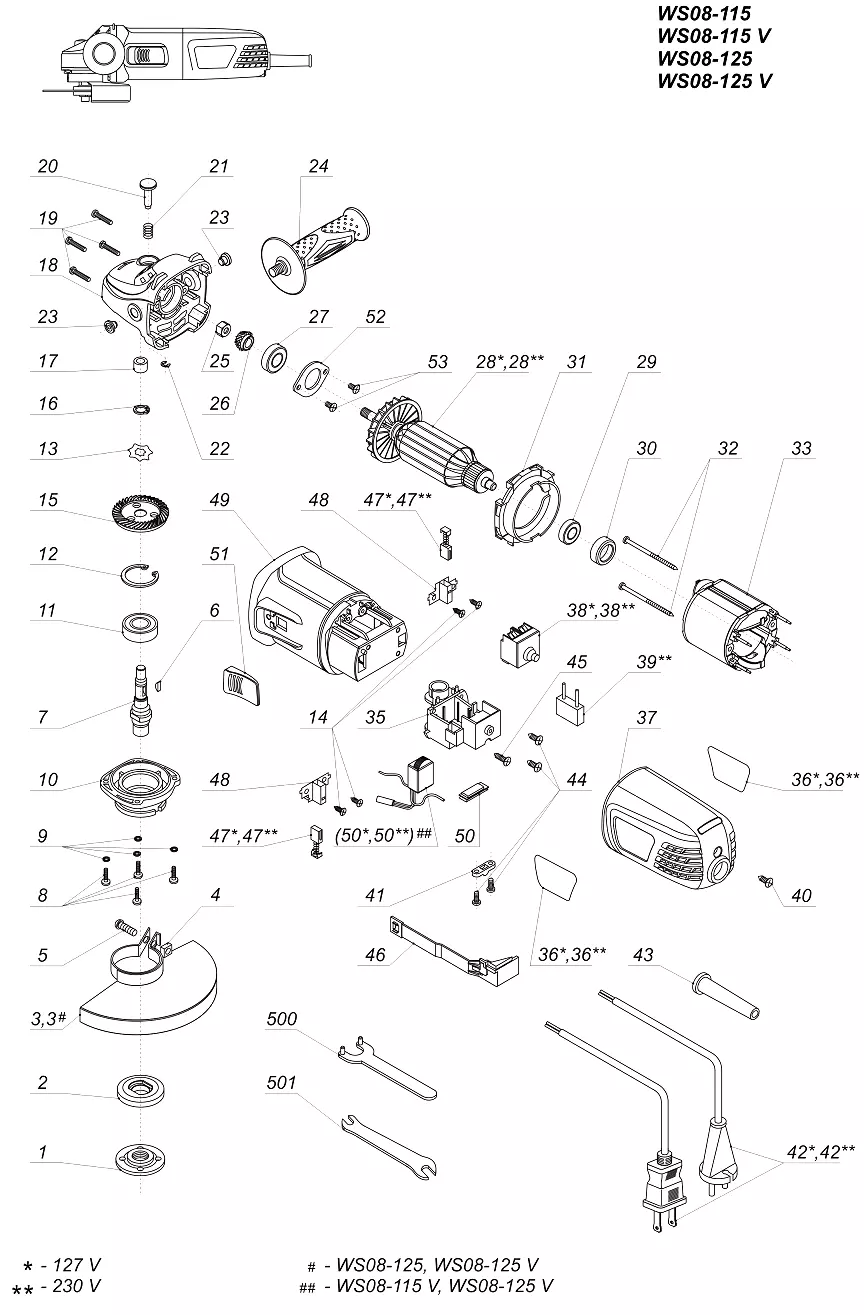

WS 08-115/V, WS 08-125/V
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Outside flange |
| 2 |  |
Inner flange |
| 3 |  |
Wheel guard Ø115 (WS08-115, WS08-115 V) |
| 3# |  |
Wheel guard Ø125 (WS08-125, WS08-125 V) |
| 4 |  |
Square nut M5 |
| 5 |  |
Screw M5x20 |
| 6 |  |
Key 3x3.7x10 |
| 7 |  |
Spindle |
| 8 |  |
Screw M4x14 (4) |
| 9 |  |
Spring washer Ø4 (4) |
| 10 |  |
Gear housing cover |
| 11 |  |
Ball bearing 6201.RS |
| 12 |  |
Circlip for hole Ø32 |
| 13 |  |
Wave spring washer Ø10xØ15 |
| 14 |  |
Screw ST4x10 (4) |
| 15 |  |
Big gear |
| 16 |  |
Circlip for shaft Ø10 |
| 17 |  |
Bronze bush Ø12xØ8x10 |
| 18 |  |
Gear housing |
| 19 |  |
Screw ST4x22 (4) |
| 20 |  |
Brake pin |
| 21 |  |
Brake spring |
| 22 |  |
C ring 4.7 |
| 23 |  |
Rubber plunge (2) |
| 24 |  |
Side handle |
| 25 |  |
Lock nut M8x1 |
| 26 |  |
Small gear |
| 27 |  |
Ball bearing 6000.RS |
| 28* |  |
Armature 127V |
| 28** |  |
Armature 230V |
| 29 |  |
Ball bearing 608.RS |
| 30 |  |
Bearing bush Ø25xØ22x9 |
| 31 |  |
Guide wind circle |
| 32 |  |
Screw ST4x65 (2) |
| 33* |  |
Stator 127V |
| 33** |  |
Stator 230V |
| 34** |  |
Inductor 10µH (2) 230 V (WS08-115 V,125V) |
| 35 |  |
Switch seat |
| 36* |  |
Brand label (2) 127 V (WS08-115 ) |
| 36** |  |
Brand label (2) 230 V (WS08-115 ) |
| 36* |  |
Brand label (2) 127 V (WS08-115 V) |
| 36** |  |
Brand label (2) 230 V (WS08-115 V) |
| 36* |  |
Brand label (2) 127 V (WS08-125) |
| 36** |  |
Brand label (2) 230 V (WS08-125) |
| 36* |  |
Brand label (2) 127 V (WS08-125 V) |
| 36** |  |
Brand label (2) 230 V (WS08-125 V) |
| 37 |  |
Back handle |
| 38* |  |
Switch 127V |
| 38** |  |
Switch 230V |
| 39** |  |
Condenser 0.22µF 230V |
| 40 |  |
Screw ST4x14 (4) |
| 41 |  |
Cord clip |
| 42* |  |
Cord 127V |
| 42** |  |
Cord 230V |
| 43 |  |
Rubber sleeve |
| 44 |  |
Screw ST4x12 (4) |
| 45 |  |
Sunk screw ST4x14 |
| 46 |  |
Control rod |
| 47* |  |
Carbon brush (2) 127V |
| 47** |  |
Carbon brush (2) 230V |
| 48 |  |
Brush holder (2) |
| 49 |  |
Housing |
| 50 |  |
Cover plate |
| 50* |  |
VS wheel switch 127V(WS08-115TV,WS08-125TV) |
| 50** |  |
VS wheel switch 230V(WS08-115TV,WS08-125TV) |
| 51 |  |
Push button |
| 52 |  |
Bearing cover № 2 |
| 53 |  |
Sunk screw M5x10 (2) |
| 500 |  |
Spanner |
