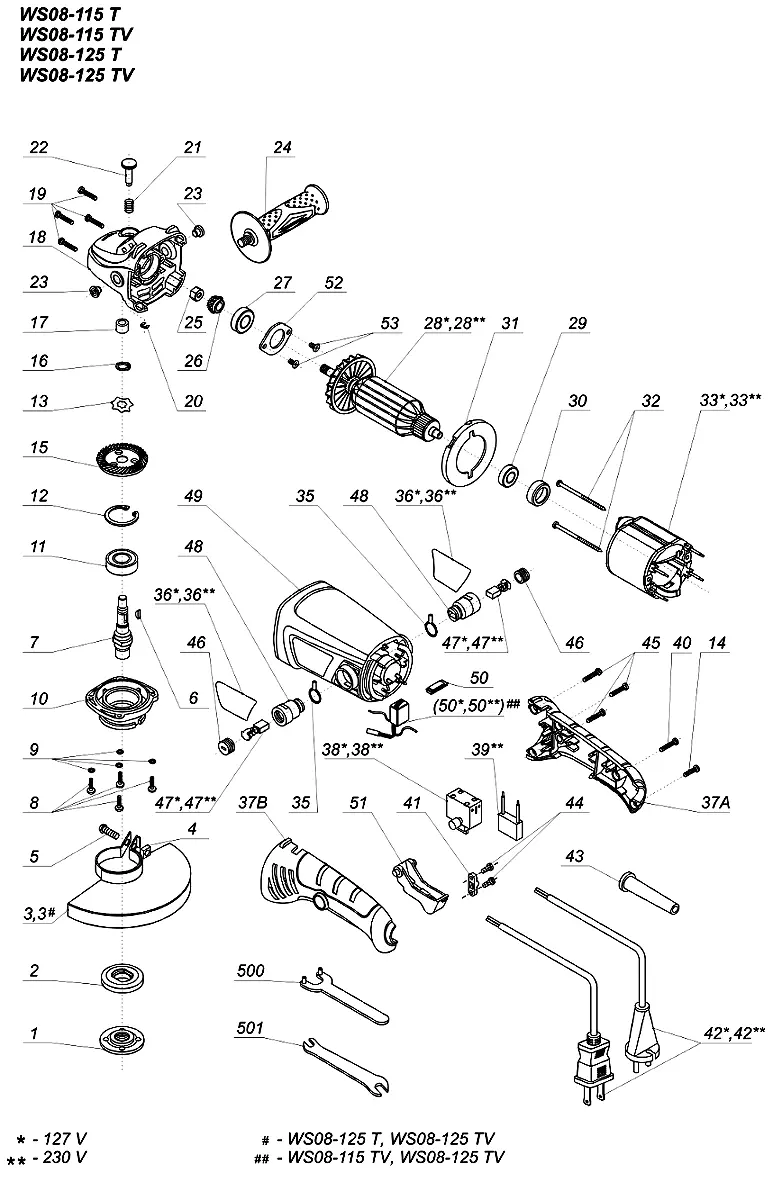

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Outside flange |
| 2 |  |
Inner flange |
| 3# |  |
Wheel guard Ø125 |
| 4 |  |
Square nut M5 |
| 5 |  |
Screw M5x20 |
| 6 | Key 3x3.7x10 | |
| 7 | Spindle | |
| 8 | Screw M4x14 | |
| 8 | Snap ring Ø28 | |
| 9 | Spring washer Ø4 | |
| 10 | Gear housing cover | |
| 11 | Ball bearing 6201.RS | |
| 12 | Circlip for hole Ø32 | |
| 13 | Wave spring washer Ø10xØ15 | |
| 14 | Screw ST4x10 | |
| 15 | Big gear | |
| 16 | Circlip for shaft Ø10 | |
| 17 | Bronze bush Ø12xØ8x10 | |
| 18 | Gear housing | |
| 19 | Screw ST4x22 | |
| 19 | Screw ST4x20 | |
| 20 | Brake pin | |
| 21 | Brake spring | |
| 22 | C ring Ø4,7 | |
| 23 | Rubber plunge | |
| 24 | Side handle | |
| 25 | Lock nut M8x1 | |
| 26 | Small gear | |
| 27 | Ball bearing 6000.RS | |
| 28* | Armature 127V | |
| 28** | Armature 230V | |
| 29 | Ball bearing 608.RS | |
| 30 | Bearing bush Ø25xØ22x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST4x65 | |
| 33* | Stator 127V | |
| 33** | Stator 230V | |
| 35 | Connection spring Ø12.5 | |
| 36* | Brand label 127V | |
| 36** | Brand label 230V | |
| 37A | Handle A | |
| 37B | Handle B | |
| 38* | Switch 127V | |
| 38** | Switch 127-230V | |
| 38** | Switch 230V | |
| 38* | Switch 127V | |
| 39** | Condenser 0.22μF 230V | |
| 39** | Condenser 0.22uF 230V | |
| 40 | Screw ST4x14 | |
| 41 |  |
Cord clip |
| 42** |  |
Cord 230V |
| 42* |  |
Cord 127V |
| 43 |  |
Rubber sleeve |
| 44 |  |
Screw ST4x12 |
| 45 |  |
Screw ST4x16 |
| 46 |  |
Brush cap |
| 47* |  |
Carbon brush 127V |
| 47** |  |
Carbon brush 230V |
| 48 |  |
Brush holder |
| 49 |  |
Housing |
| 50 |  |
Cover plate |
| 51 |  |
Switch button |
| 52 |  |
Bearing cover No 2 |
| 53 |  |
Sunk screw ST4x10 |
