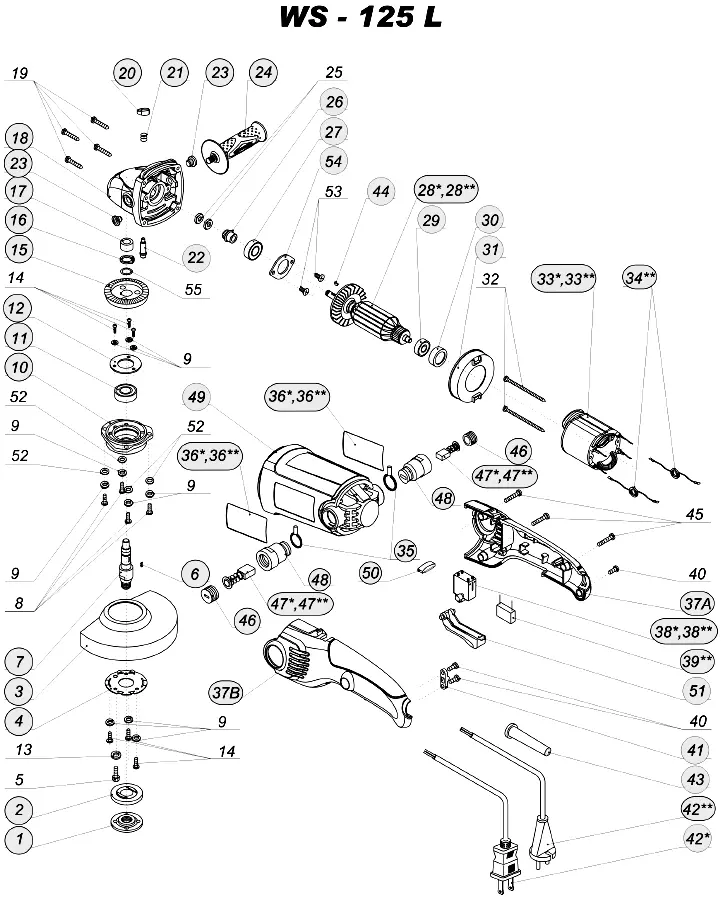

| П-п | Арт | Название |
|---|---|---|
| 1 | Outside flange | |
| 2 | Inner flange | |
| 3 | Wheel guard Ø125 | |
| 4 | Wheel guard cover | |
| 5 | Screw M5x10 | |
| 6 | Key 3x3.7x10 | |
| 7 | Spindle | |
| 8 | Screw M4x14 (4) | |
| 9 | Spring washer Ø5 | |
| 10 | Gear housing cover | |
| 11 | Ball bearing 6201.RS | |
| 12 | Bearing cover №1 | |
| 13 | Spring washer Ø4 (10) | |
| 14 | Screw M4x10 (6) | |
| 15 | Big gear | |
| 16 | Circlip for shaft Ø10 | |
| 17 | Bronze bush Ø14xØ8x10 | |
| 18 | Gear housing | |
| 19 | Screw ST4x22 (4) | |
| 20 | Brake cap | |
| 21 | Brake spring | |
| 22 | Brake pin | |
| 23 | Rubber plunge (2) | |
| 24 | Side handle | |
| 25 | Thin nut M8x1 (2) | |
| 26 | Small gear | |
| 27 | Ball bearing 6000.RS | |
| 28* | Armature 127V | |
| 28** | Armature 230V | |
| 29 | Ball bearing 608.RS | |
| 30 | Bearing bush Ø25xØ22x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST4x65 (2) | |
| 33* | Stator 127V | |
| 33** | Stator 230V | |
| 34** | Inductor Ø10xØ6x3.5 (2) 230V | |
| 35 | Connection spring Ø12.5 (2) | |
| 36* | Name plate (2) 127 V | |
| 36** | Name plate (2) 230 V | |
| 37A | Back handle A | |
| 37B | Back handle B | |
| 38* | Switch 127V | |
| 38** | Switch 230V | |
| 39** | Condenser 0.22 µF 230V | |
| 40 | Screw ST4x14 (3) | |
| 41 | Cord clip | |
| 42* | Cord 127V | |
| 42** | Cord 230V | |
| 43 | Rubber sleeve | |
| 44 | Key 2,9x3.7x10 | |
| 45 | Screw ST4x18 (3) | |
| 46 | Brush cap (2) | |
| 47* | Carbon brush (2) 127V | |
| 47** | Carbon brush (2) 230V | |
| 48 | Brush holder (2) | |
| 49 | Housing | |
| 50 | Cover plate | |
| 51 | Switch button | |
| 52 | Washer Ø4 (4) | |
| 53 | Sunk screw M5x10 (2) | |
| 54 | Bearing cover №2 | |
| 55 | Wave spring washer Ø10 |
