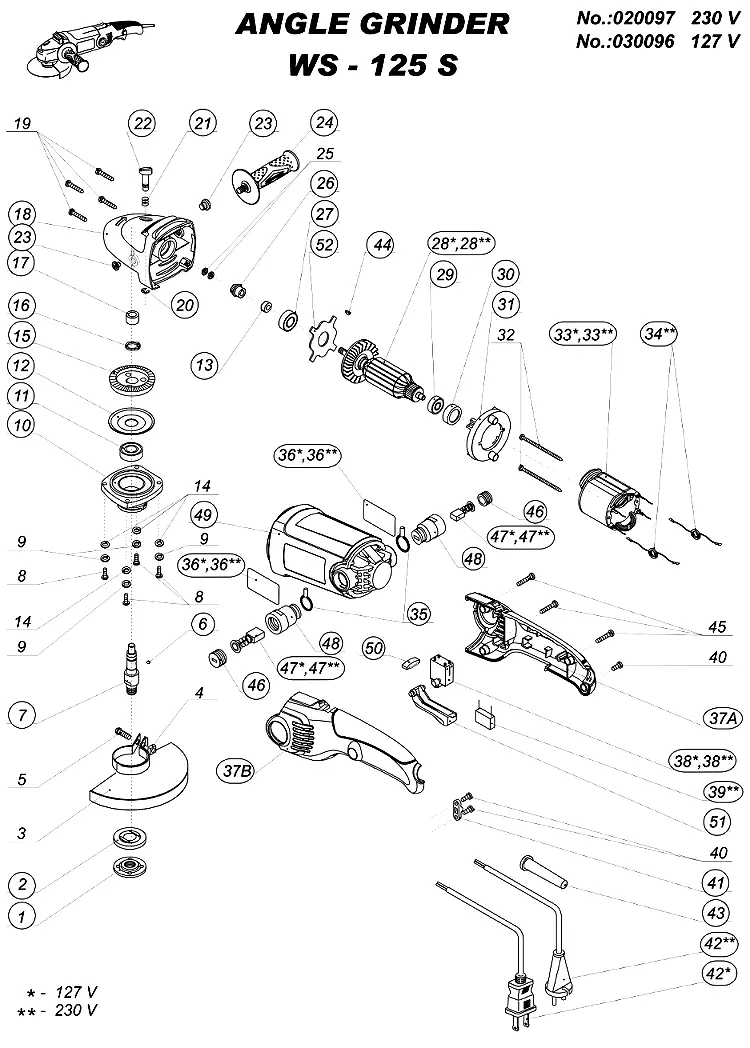

| П-п | Арт | Название |
|---|---|---|
| 1 | Outside flange | |
| 2 | Inner flange | |
| 3 | Wheel guard Ø125 | |
| 4 | Square nut M5 | |
| 5 | Screw M5x20 | |
| 6 | Steel ball Ø3 | |
| 7 | Spindle | |
| 8 | Screw M4x14 (4) | |
| 9 |  |
Spring washer Ø4 (4) |
| 10 |  |
Gear housing cover |
| 11 |  |
Ball bearing 6201.RS |
| 12 |  |
Bearing cover Ø53.5 |
| 13 |  |
Bush Ø14.5 xØ8x6 |
| 14 |  |
Washer Ø4 (4) |
| 15 |  |
Big gear |
| 16 |  |
Circlip for shaft Ø10 |
| 17 |  |
Bronze bush Ø14xØ8x10 |
| 18 |  |
Gear housing |
| 19 |  |
Screw ST4x32 (4) |
| 20 |  |
“E” ring Ø4 |
| 21 |  |
Brake spring |
| 22 |  |
Brake pin |
| 23 |  |
Rubber plunge (2) |
| 24 |  |
Side handle |
| 25 |  |
Thin nut M8x1 (2) |
| 26 |  |
Small gear |
| 27 |  |
Ball bearing 6000.RS |
| 28* |  |
Armature 127V |
| 28** |  |
Armature 230V |
| 29 |  |
Ball bearing 608.RS |
| 30 |  |
Bearing bush Ø25xØ22x9 |
| 31 |  |
Guide wind circle |
| 32 |  |
Screw ST4x70 (2) |
| 33* |  |
Stator 127V |
| 33** |  |
Stator 230V |
| 34** |  |
Inductor Ø16xØ10x3.5 (2) 230V |
| 35 |  |
Connection spring Ø12.5 (2) |
| 36* |  |
Name plate (2) 127 V |
| 36** |  |
Name plate (2) 230 V |
| 37A |  |
Back handle A |
| 37B |  |
Back handle B |
| 38* |  |
Switch 127V |
| 38** |  |
Switch 230V |
| 39** |  |
Condenser 0.33µF 230V |
| 40 |  |
Screw ST4x14 (3) |
| 41 |  |
Cord clip |
| 42* |  |
Cord 127V |
| 42** |  |
Cord 230V |
| 43 |  |
Rubber sleeve |
| 44 |  |
Key 2,9x3.7x10 |
| 45 |  |
Screw ST4x18 (3) |
| 46 |  |
Brush cap (2) |
| 47* |  |
Carbon brush (2) 127V |
| 47** |  |
Carbon brush (2) 230V |
| 48 |  |
Brush holder (2) |
| 49 |  |
Housing |
| 50 |  |
Cover plate |
| 51 |  |
Switch button |
| 52 |  |
Bearing cover |
