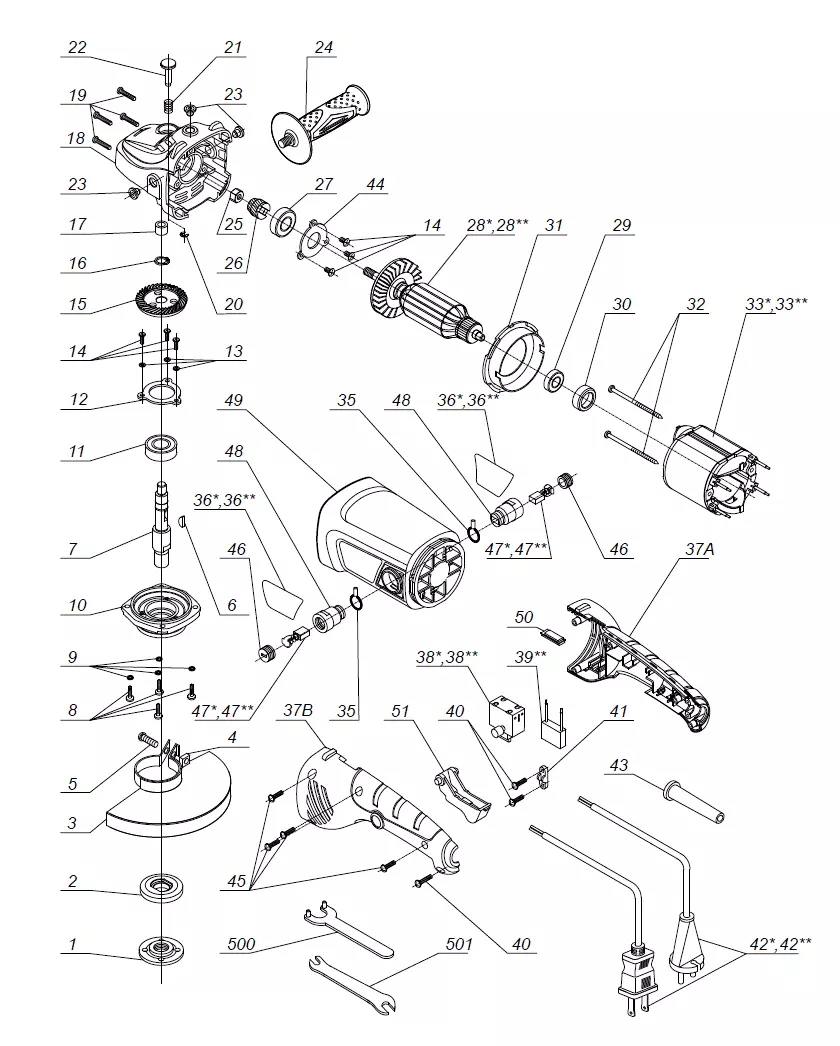

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Outside flange |
| 2 |  |
Inner flange |
| 3 |  |
Wheel guard Ø180 |
| 4 |  |
Square nut M8 |
| 5 |  |
Screw M8x25 |
| 6 |  |
Key 4x5x13 |
| 7 |  |
Spindle |
| 8 |  |
Screw M5x16 (4) |
| 9 |  |
Spring washer Ø5 (4) |
| 10 |  |
Gear housing cover |
| 11 |  |
Ball bearing 6002.RS |
| 12 |  |
Bearing cover Ø28 |
| 13 |  |
Spring washer Ø4 |
| 14 |  |
Screw M4x10 |
| 15 |  |
Big gear |
| 16 |  |
Circlip for shaft Ø15 |
| 17 |  |
Bronze bush Ø15xØ10x10 |
| 18 |  |
Gear housing |
| 19 |  |
Screw ST5x35 (4) |
| 20 |  |
C ring 6,3 |
| 21 |  |
Brake spring |
| 22 |  |
Brake pin |
| 23 |  |
Rubber plunge (2) |
| 24 |  |
Side handle |
| 25 |  |
Lock nut M8x1.25 |
| 26 |  |
Small gear |
| 27 | Ball bearing 6201.RS | |
| 28* | Armature 127V | |
| 28** | Armature 230V | |
| 29 | Ball bearing 608.RS | |
| 30 | Bearing bush Ø25xØ22x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST4x75 (2) | |
| 33* | Stator 127V | |
| 33** |  |
Stator 230V |
| 35 |  |
Connection spring Ø12.5 (2) |
| 36* |  |
Brand label (2) 127 V |
| 36** |  |
Brand label (2) 230 V |
| 37A |  |
Handle A |
| 37B |  |
Handle B |
| 38* |  |
Switch 127V |
| 38** |  |
Switch 230V |
| 39** |  |
Condenser 0.33 μF 230V |
| 40 |  |
Screw ST4x14 (4) |
| 41 |  |
Cord clip |
| 42* |  |
Cord 127V |
| 42** |  |
Cord 230V |
| 43 |  |
Rubber sleeve |
| 44 |  |
Bearing cover Ø19,5 |
| 45 |  |
Screw ST4x16 (4) |
| 46 |  |
Brush cap (2) |
| 47* |  |
Carbon brush (2) 127V |
| 47** |  |
Carbon brush (2) 230V |
| 48 |  |
Brush holder (2) |
| 49 |  |
Housing |
| 50 |  |
Cover plate |
| 51 |  |
Switch button |
| 500 |  |
Spanner |
| 501 |  |
Wrench spanner M8 |
