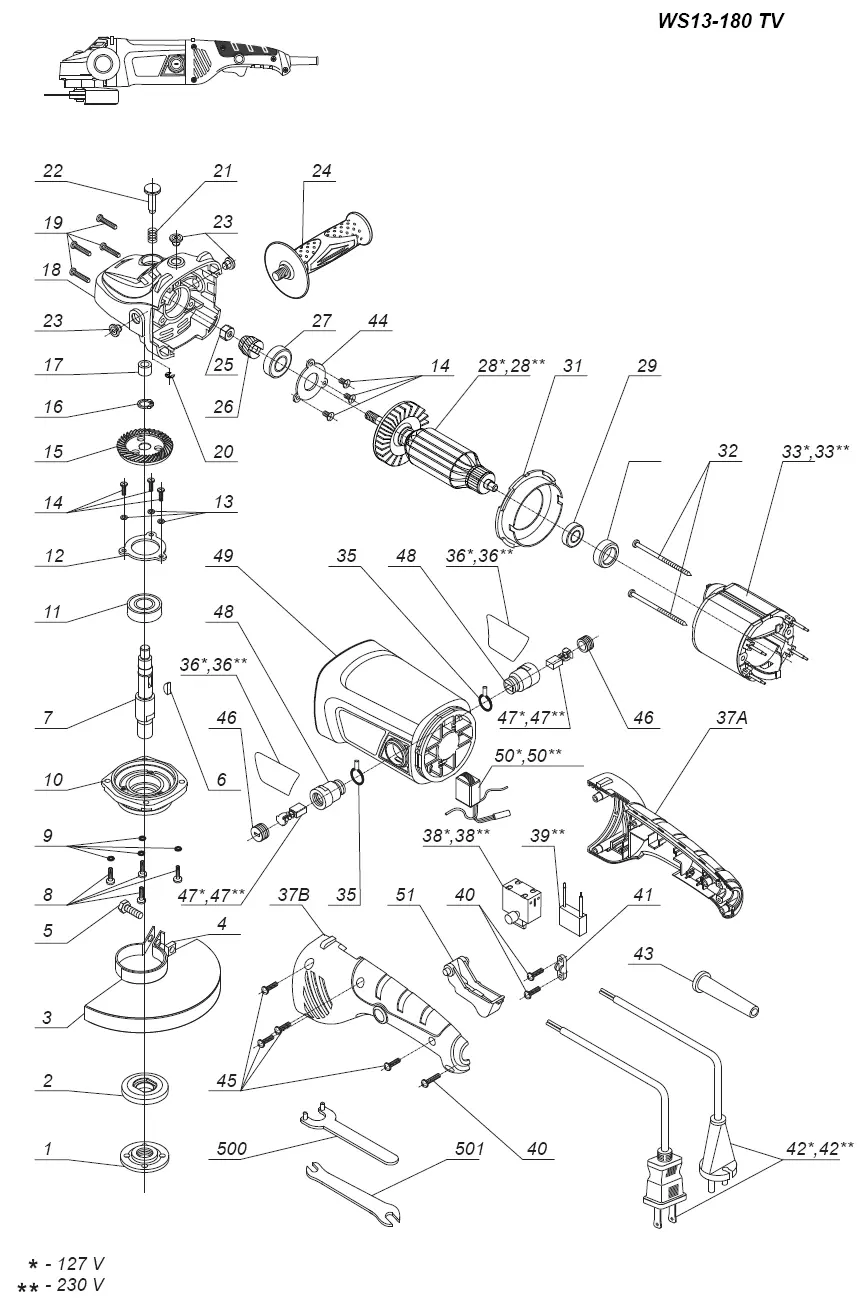

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Outside flange |
| 2 |  |
Inner flange |
| 3 |  |
Wheel guard 0180 |
| 4 |  |
Square nut M8 |
| 5 |  |
Screw M8x25 |
| 6 |  |
Key 4x5x13 |
| 7 |  |
Spindle |
| 8 |  |
Screw M5x16 (4) |
| 9 |  |
Spring washer 05 (4) |
| 10 |  |
Gear housing cover |
| 11 |  |
Ball bearing 6002. RS |
| 12 |  |
Bearing cover 028 |
| 13 |  |
Spring washer 04 |
| 14 |  |
Screw M4x10 |
| 15 |  |
Big gear |
| 16 |  |
Circlip for shaft 015 |
| 17 |  |
Bronze bush 015x010x10 |
| 18 |  |
Gear housing |
| 19 |  |
Screw ST5x35 (4) |
| 20 |  |
C ring 6,3 |
| 21 |  |
Brake spring |
| 22 |  |
Brake pin |
| 23 |  |
Rubber plunge (2) |
| 24 |  |
Side handle |
| 25 |  |
Lock nut M8x1.25 |
| 26 |  |
Small gear |
| 27 | Ball bearing 6201. RS | |
| 28* | Armature 127V | |
| 28** | Armature 230V | |
| 29 | Ball bearing 608. RS | |
| 30 | Bearing bush 025x022x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST4x75 (2) | |
| 33* | Stator 127V | |
| 33** | Stator 230V | |
| 35 | Connection spring 012.5 (2) | |
| 36* | Brand label (2) 127 V | |
| 36** | Brand label (2) 230 V | |
| 37A | Handle A | |
| 37B | Handle B | |
| 38* | Switch 127V | |
| 38** | Switch 230V | |
| 39** | Condenser 0.33 \\iF 230V | |
| 40 | Screw ST4x14 (4) | |
| 41 | Cord clip | |
| 42* | Cord 127V | |
| 42** | Cord 230V | |
| 43 | Rubber sleeve | |
| 44 |  |
Bearing cover 019,5 |
| 45 |  |
Screw ST4x16 (4) |
| 46 |  |
Brush cap (2) |
| 47* |  |
Carbon brush (2) 127V |
| 47** |  |
Carbon brush (2) 230V |
| 48 |  |
Brush holder (2) |
| 49 |  |
Housing |
| 50* |  |
VS wheel switch 127V |
| 50** |  |
VS wheel switch 230V |
| 51 |  |
Switch button |
| 500 |  |
Spanner |
| 501 |  |
Wrench spanner M8 |
