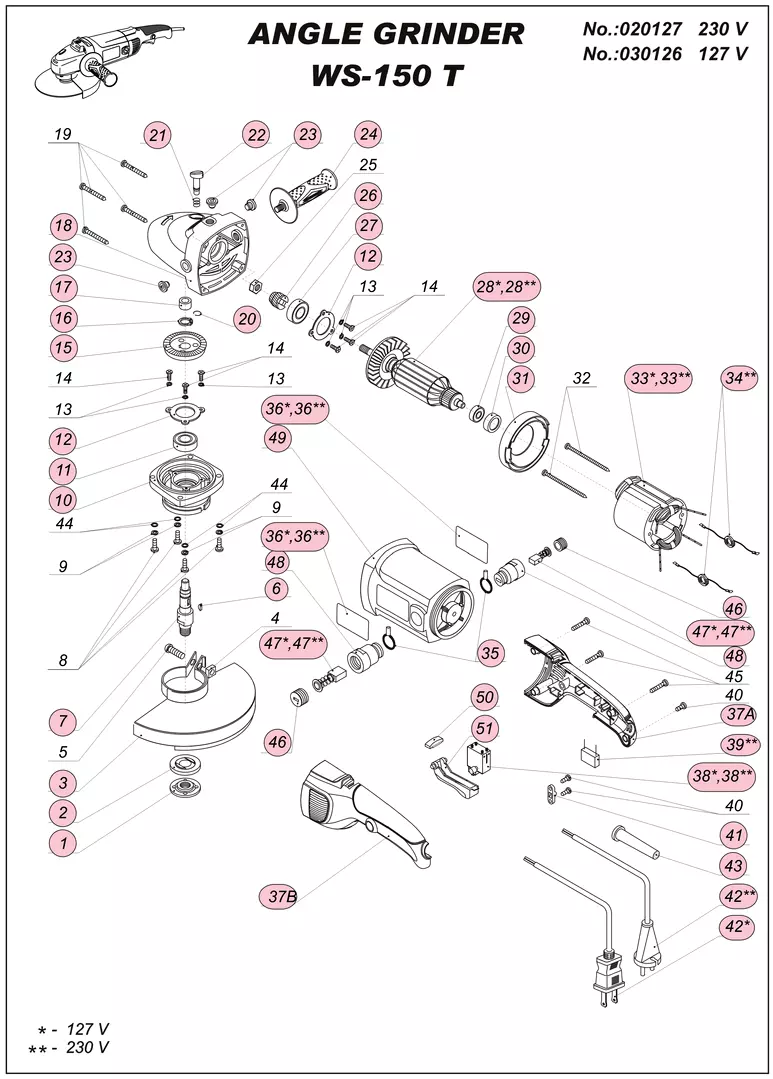

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Outside flange |
| 2 |  |
Inner flange |
| 3 |  |
Wheel guard Ø150 |
| 4 |  |
Square nut M6 |
| 5 |  |
Screw M6x25 |
| 6 |  |
Key 4x5x13 |
| 7 |  |
Spindle |
| 8 |  |
Screw M5x16 (4) |
| 9 |  |
Spring washer Ø5 (4) |
| 10 |  |
Gear housing cover |
| 11 |  |
Ball bearing 6002.RS |
| 12 |  |
Bearing cover №3 (2) |
| 13 |  |
Spring washer Ø4 (6) |
| 14 |  |
Screw M4x10 (6) |
| 15 |  |
Big gear |
| 16 |  |
Circlip for shaft Ø15 |
| 17 |  |
Bronze bush Ø15xØ10x10 |
| 18 |  |
Gear housing |
| 19 |  |
Screw ST5x40 (4) |
| 20 |  |
“C” ring Ø6,3 |
| 21 |  |
Brake spring |
| 22 |  |
Brake pin |
| 23 |  |
Rubber plunge (3) |
| 24 |  |
Side handle |
| 25 |  |
Lock nut M8x1 |
| 26 |  |
Small gear |
| 27 |  |
Ball bearing 6201.RS |
| 28* |  |
Armature 127 V |
| 28** |  |
Armature 230 V |
| 29 |  |
Ball bearing 608.RS |
| 30 |  |
Bearing bush Ø25xØ22x9 |
| 31 |  |
Guide wind circle |
| 32 |  |
Screw ST4x75 (2) |
| 33* |  |
Stator 127V |
| 33** |  |
Stator 230V |
| 34** |  |
Inductor Ø16xØ10x3.5 (2) 230V |
| 35 |  |
Connection spring Ø12.5 (2) |
| 36* |  |
Name plate (2) 127V |
| 36** |  |
Name plate (2) 230V |
| 37A |  |
Back handle A |
| 37B |  |
Back handle B |
| 38* |  |
Switch 127V |
| 38** |  |
Switch 230V |
| 39** |  |
Condenser 0.33µF 230V |
| 40 | Screw ST4x14 (3) | |
| 41 | Cord clip | |
| 42* | Cord 127V | |
| 42** | Cord 230V | |
| 43 | Rubber sleeve | |
| 44 | Washer Ø 5 (4) | |
| 45 | Screw ST4x18 (3) | |
| 46 | Brush cap (2) | |
| 47* | Carbon brush (2) 127V | |
| 47** | Carbon brush (2) 230V | |
| 48 | Brush holder (2) | |
| 49 | Housing | |
| 50 | Cover plate | |
| 51 | Switch button |
