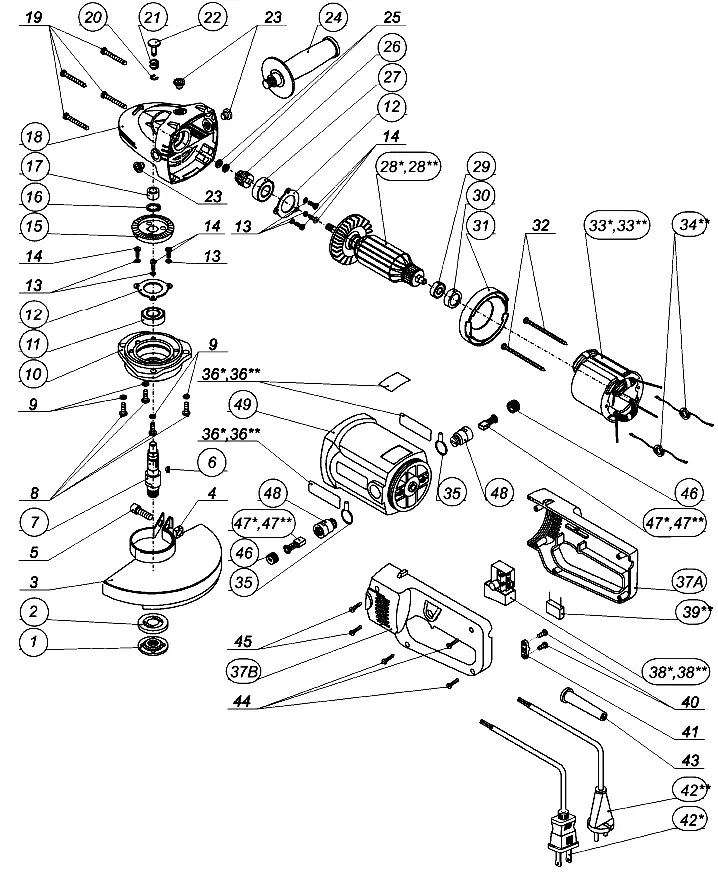

| П-п | Арт | Название |
|---|---|---|
| 1 | Outside flange | |
| 2 | Inner flange | |
| 4 | Square nut M8 | |
| 5 | Hex screw M8x25 | |
| 6 | Key 4x5x13 | |
| 7 | Spindle | |
| 8 | Screw M5x16 (4) | |
| 9 | Spring washer Ø5 (4) | |
| 10 | Gear housing cover | |
| 11 | Ball bearing 6002.RS | |
| 12 | Bearing cover №3 (2) | |
| 13 | Spring washer Ø4 (6) | |
| 14 | Screw M4x10 (6) | |
| 15 | Big gear | |
| 16 | Circlip for shaft Ø15 | |
| 17 | Bronze bush Ø16xØ10x10 | |
| 18 | Gear housing cover | |
| 19 | Screw ST5x45 (4) | |
| 20 | E ring Ø8 | |
| 21 | Brake spring | |
| 22 | Brake pin | |
| 24 | Side handle | |
| 25 | Thin nut M8x1 (2) | |
| 26 | Small gear | |
| 27 | Ball bearing 6201.RS | |
| 28** | Armature 230V | |
| 29 | Ball bearing 608.RS | |
| 30 | Bearing bush Ø25xØ22x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST4x75 (2) | |
| 33** | Stator 230V | |
| 34** | Inductor Ø16xØ10x3.5 (2) | |
| 35 | Connection spring Ø12.5 (2) | |
| 37A | Back handle A | |
| 37B | Back handle B | |
| 38** | Switch 230V | |
| 39** | Condenser 0.33 μF 230V | |
| 40 | Screw ST4x14 (2) | |
| 42* | Cord 127V | |
| 42** | Cord 230V | |
| 43 | Rubber sleeve | |
| 44 | Screw ST4x16 (3) | |
| 46 | Screw ST4x22 (2) |
