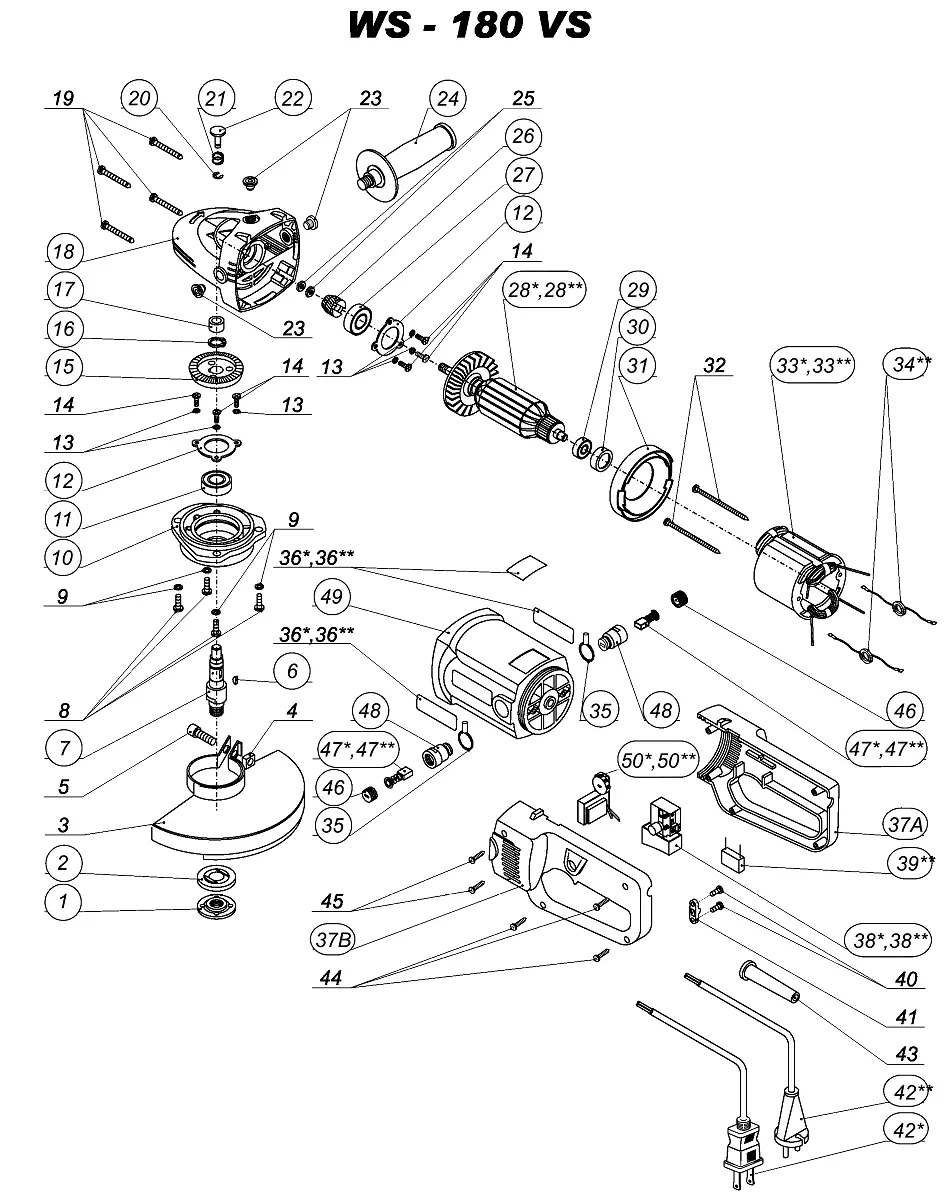

| П-п | Арт | Название |
|---|---|---|
| 1 | Outside flange | |
| 2 | Inner flange | |
| 3 | Wheel guard Ø180 | |
| 4 | Square nut M8 | |
| 5 | Hex. head bolt screw M8x25 | |
| 6 | Key 4x5x13 | |
| 7 | Spindle | |
| 8 | Screw M5x16 (4) | |
| 9 | Spring washer Ø5 (4) | |
| 10 | Gear housing cover | |
| 11 | Ball bearing 6002.RS | |
| 12 | Bearing cover №3 (2) | |
| 13 | Spring washer Ø4 (6) | |
| 14 | Screw M4x10 (6) | |
| 15 | Big gear | |
| 16 | Circlip for shaft Ø15 | |
| 17 | Bronze bush Ø16xØ10x10 | |
| 18 | Gear housing | |
| 19 | Screw ST5x45 (4) | |
| 20 | “E” ring Ø8 | |
| 21 | Brake spring | |
| 22 | Brake pin | |
| 23 | Rubber plunge (3) | |
| 24 |  |
Side handle |
| 25 |  |
Thin nut M8 (2) |
| 26 |  |
Small gear |
| 27 |  |
Ball bearing 6201.RS |
| 28* |  |
Armature 127 V |
| 28** |  |
Armature 230 V |
| 29 |  |
Ball bearing 608.Z |
| 30 |  |
Bearing bush Ø25xØ22x9 |
| 31 |  |
Guide wind circle |
| 32 |  |
Screw ST4x75 (2) |
| 33* |  |
Stator 127V |
| 33** |  |
Stator 230V |
| 34** |  |
Inductor Ø16xØ10x3.5 (2) 230V |
| 35 |  |
Connection spring Ø12.5 (2) |
| 36* |  |
Name plate (3) 127V |
| 36** |  |
Name plate (3) 230V |
| 37A |  |
Back handle A |
| 37B |  |
Back handle B |
| 38* |  |
Switch 127V |
| 38** |  |
Switch 230V |
| 39** |  |
Condenser 0.33mF 230V |
| 40 |  |
Screw ST4x14 (2) |
| 41 |  |
Cord clip |
| 42* |  |
Cord 127V |
| 42** |  |
Cord 230V |
| 43 |  |
Rubber sleeve |
| 44 |  |
Screw ST4x16 (3) |
| 45 |  |
Screw ST4x22 (2) |
| 46 |  |
Brush cap (2) |
| 47* |  |
Carbon brush (2) 127V |
| 47** |  |
Carbon brush (2) 230V |
| 48 |  |
Brush holder (2) |
| 49 |  |
Housing |
| 50* |  |
VS wheel switch 127V |
| 50** |  |
VS wheel switch 230V |
