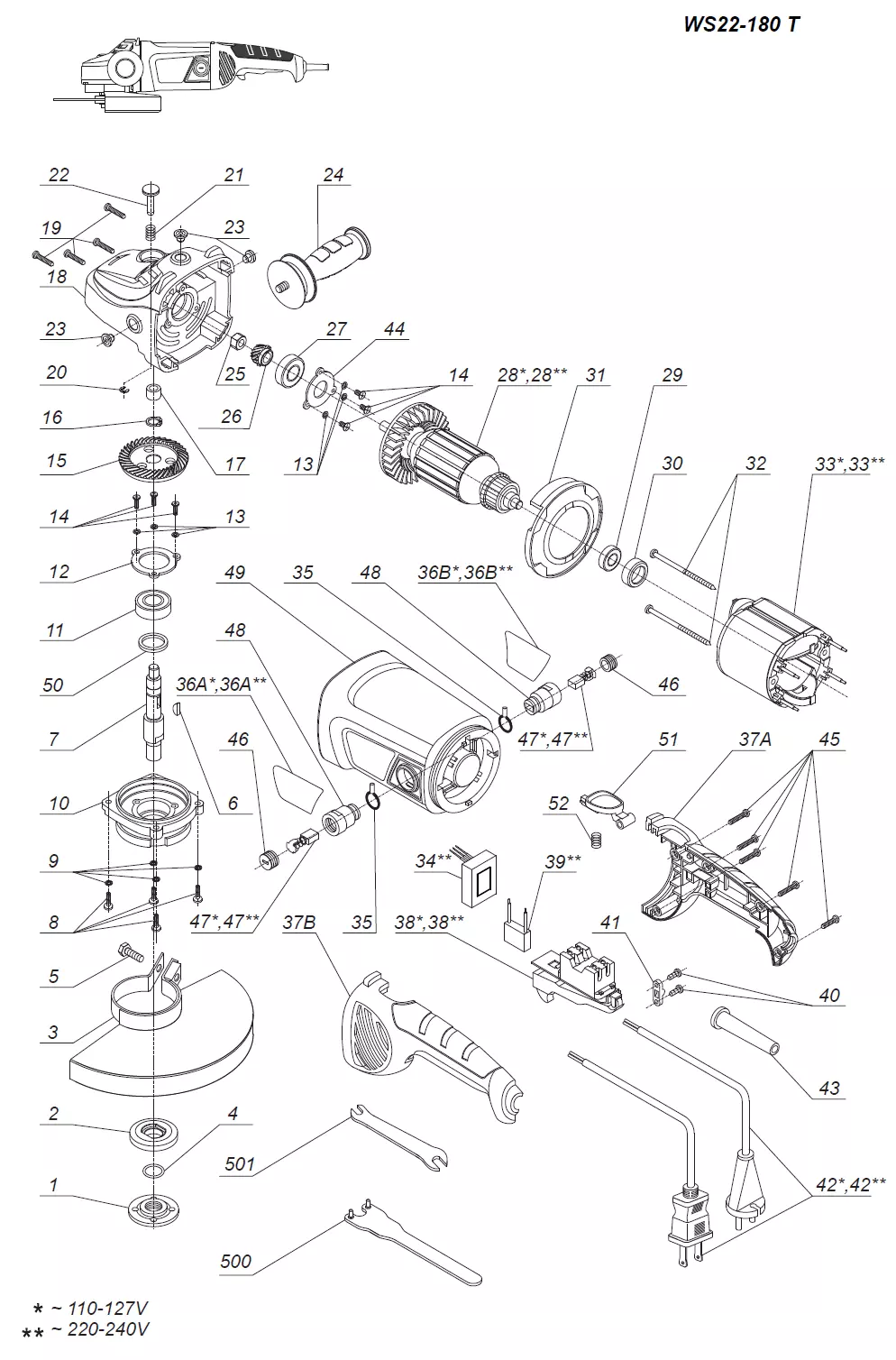

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Outside flange |
| 2 |  |
Inner flange |
| 3# |  |
Wheel guard Ø230 (WS22-230T) |
| 4 |  |
O-Ring |
| 5 |  |
Screw M8x25 |
| 6 |  |
Key 4x5x13 |
| 7 |  |
Spindle |
| 8 |  |
Screw M5x16 (4) |
| 9 |  |
Spring washer Ø5 (4) |
| 10 |  |
Gear housing cover |
| 11 |  |
Ball bearing 6202.RS |
| 12 |  |
Bearing cover Ø28 |
| 13 |  |
Spring washer Ø4(6) |
| 14 |  |
Screw M4x10(6) |
| 15 |  |
Big gear(WS22-230T) |
| 16 |  |
Circlip for shaft Ø15 |
| 17 |  |
Bronze bush Ø16xØ10x10 |
| 18 |  |
Gear housing |
| 19 |  |
Screw ST5x35 (4) |
| 20 |  |
Brake pin |
| 21 |  |
Brake spring |
| 22 |  |
C ring 6,3 |
| 23 |  |
Rubber plunge (2) |
| 24 |  |
Shock absorbing handle |
| 25 |  |
Lock nut M8x1 |
| 26 |  |
Small gear(WS22-230T) |
| 27 |  |
Ball bearing 6201.RS |
| 28* | Armature 110-127V | |
| 28** | Armature 220-240V | |
| 29 | Ball bearing 629.RS | |
| 30 | Bearing bush Ø32xØ26x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST5x70 (2) | |
| 33* | Stator 110-127V | |
| 33** | Stator 220-240V | |
| 34** | Soft start 220-240V | |
| 35 | Connection spring Ø12.5 (2) | |
| 36A* | Brand label 110-127 V (WS22-230T) | |
| 36A** | Brand label 220-240 V (WS22-230T) | |
| 36B* | Spec.label 110-127V (WS22-230T) | |
| 36B** | Spec.label 220-240V (WS22-230T) | |
| 37A | Handle A | |
| 37B | Handle B | |
| 38* | Switch 110-127V | |
| 38** | Switch 220-240V | |
| 39** | Condenser 0.33μF 220-240V | |
| 40 | Screw ST4x14(2) | |
| 41 | Cord clip | |
| 42* | Cord 110-127V | |
| 42** | Cord 220-240V | |
| 43 | Rubber sleeve | |
| 44 | Felt ringØ30xØ20x5 | |
| 45 | Screw ST4x16 (5) | |
| 46 | Brush cap (2) | |
| 47* | Carbon brush (2) 110-127V | |
| 47** | Carbon brush (2) 220-240V | |
| 48 | Brush holder (2) | |
| 49 | Housing | |
| 50 | Bearing cover Ø19,5 | |
| 51 | Rotary button | |
| 52 | Spring Ø 6x12 | |
| 500 | Spanner(WS22-230T) | |
| 501 | Hex.spanner M6 |
