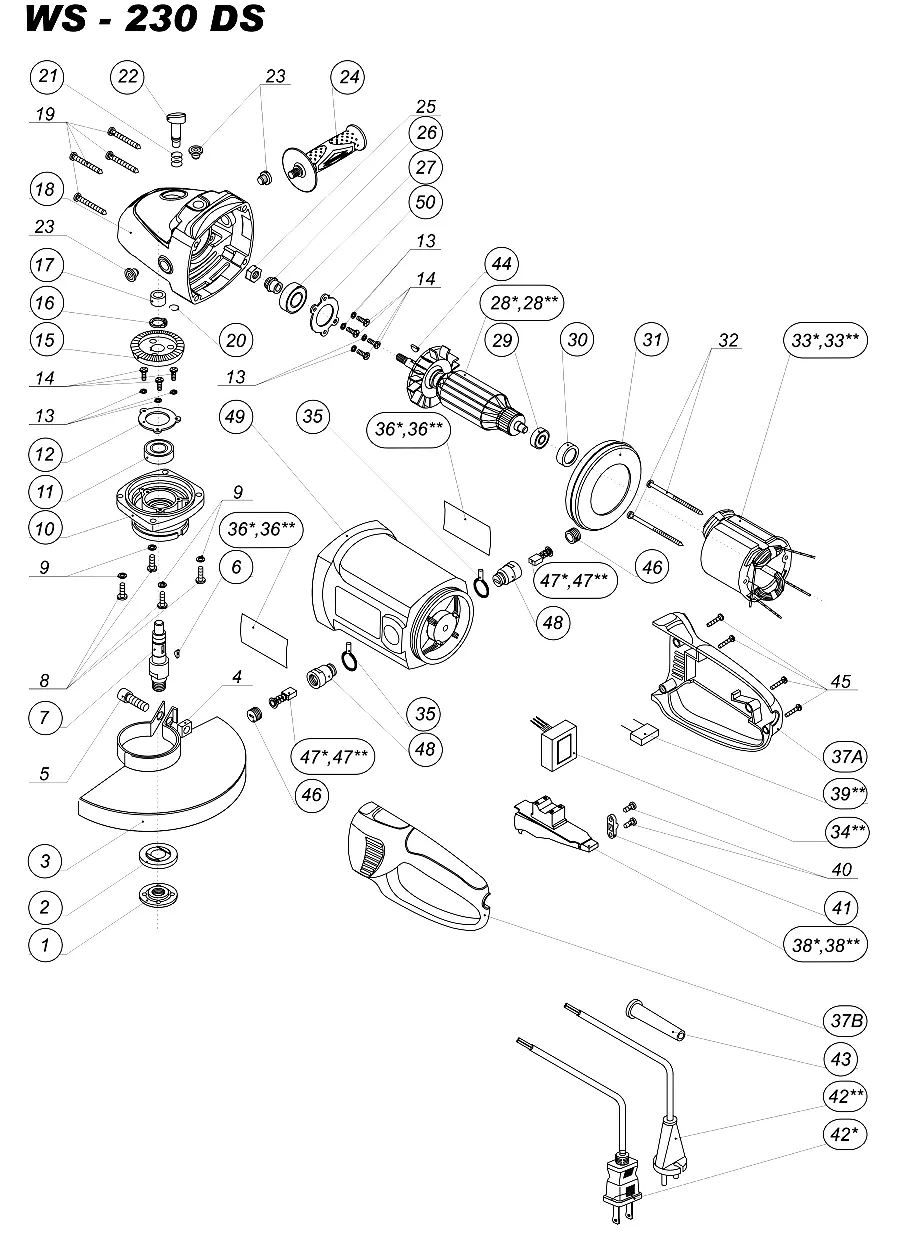

| П-п | Арт | Название |
|---|---|---|
| 1 | Outside flange | |
| 2 | Inner flange | |
| 3 | Wheel guard Ø230 | |
| 4 | Square nut M8 | |
| 5 | Hex. screw M8x25 | |
| 6 | Key 4x5x13 | |
| 7 | Spindle | |
| 8 | Screw M5x16 (4) | |
| 9 | Spring washer Ø5 (4) | |
| 10 | Gear housing cover | |
| 11 | Ball bearing 6202.RS | |
| 12 | Bearing cover №3 | |
| 13 | Spring washer Ø4 (7) | |
| 14 | Screw M4x10 (7) | |
| 15 | Big gear | |
| 16 | Circlip for shaft Ø15 | |
| 17 | Bronze bush Ø16xØ10x10 | |
| 18 | Gear housing | |
| 19 | Screw ST5x45 (4) | |
| 20 | “C” ring Ø6,3 | |
| 21 | Brake spring | |
| 22 | Brake pin | |
| 23 | Rubber plunge (3) | |
| 24 | Side handle | |
| 25 | Lock nut M8x1 | |
| 26 | Small gear | |
| 27 | Ball bearing 6201.RS | |
| 28* | Armature 127V | |
| 28** | Armature 230V | |
| 29 | Ball bearing 629.RS | |
| 30 | Bearing bush Ø32xØ26x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST4x70 (2) | |
| 33* | Stator 127V | |
| 33** | Stator 230V | |
| 34** | Soft start 230V | |
| 35 | Connection spring Ø17.5 (2) | |
| 36* | Name plate (2) 127V | |
| 36** | Name plate (2) 230V | |
| 37A | Back handle A | |
| 37B | Back handle B | |
| 38* | Switch 127V | |
| 38** | Switch 230V | |
| 39** | Condenser 0.33µF 230V | |
| 40 | Screw ST4x14 (2) | |
| 41 | Cord clip | |
| 42* | Cord 127V | |
| 42** | Cord 230V | |
| 43 | Rubber sleeve | |
| 44 | Key 2.9x5x13 | |
| 45 | Screw ST4x18 (4) | |
| 46 | Brush cap (2) | |
| 47* | Carbon brush (2) 127V | |
| 47** | Carbon brush (2) 230V | |
| 48 | Brush holder (2) | |
| 49 | Housing | |
| 50 | Bearing cover №4 |
