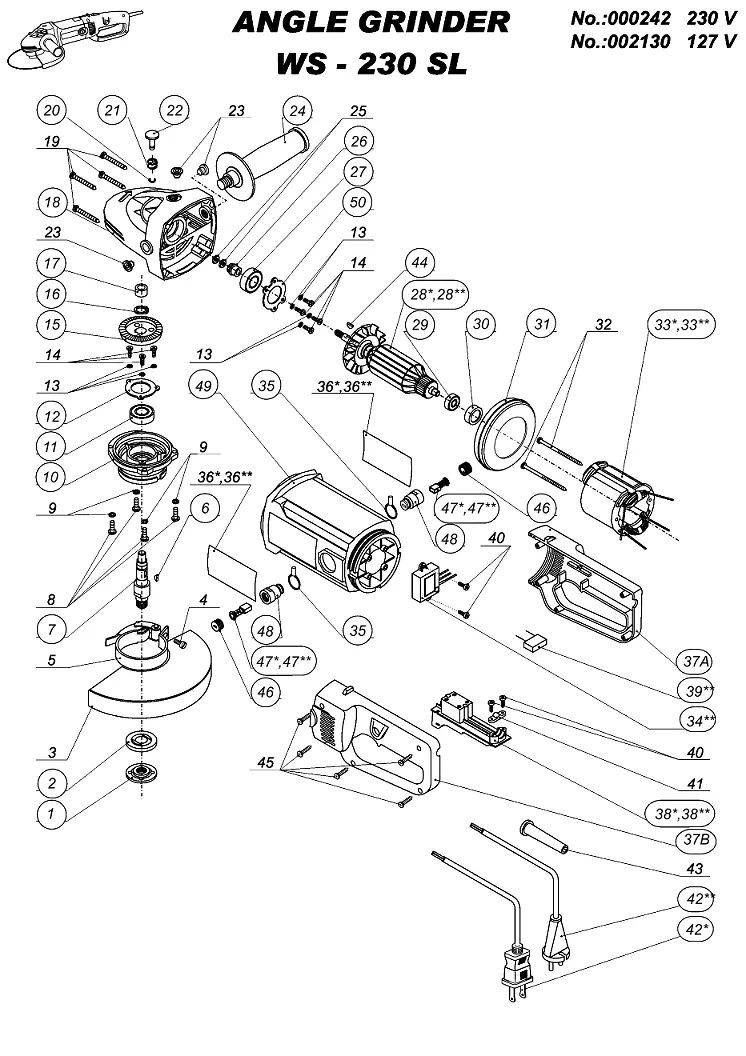

| П-п | Арт | Название |
|---|---|---|
| 1 | Outside flange | |
| 2 | Inner flange | |
| 4 | Key 4x5x13 | |
| 5 | Spindle | |
| 6 | Screw M5x16 (4) | |
| 7 | Spring washer Ø5 (4) | |
| 8 | Gear housing cover | |
| 9 | Ball bearing 6202.RS | |
| 10 | Bearing cover №3 | |
| 11 | Screw M4x10 (7) | |
| 12 | Spring washer Ø4 (7) | |
| 13 | Big gear | |
| 14 | Circlip for shaft Ø15 | |
| 15 | Bronze bush Ø16xØ10x10 | |
| 16 | Screw ST5x40 (4) | |
| 17 | Gear housing | |
| 18 | E ring Ø8 | |
| 19 | Brake spring | |
| 20 | Brake pin | |
| 22 | Side handle | |
| 23 | Thin nut M8x1 (2) | |
| 24 | Small gear | |
| 25 | Ball bearing 6201.RS | |
| 26 | Bearing cover №4 | |
| 27 | Key 2.9x5x13 | |
| 28** | Armature 230V | |
| 29 | Ball bearing 629.RS | |
| 30 | Bearing bush Ø32xØ26x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST5x70 (2) | |
| 33** | Stator 230V | |
| 34 | Connection spring Ø17.5 (2) | |
| 35 | Screw ST4x18 (5) | |
| 36A | Back handle A | |
| 36B | Back handle B | |
| 37** | Condenser 0.33 μF 230V | |
| 38 | Screw ST4x14 (4) | |
| 40** | Switch 230V | |
| 41* | Cord 230V | |
| 41** | Cord 127V | |
| 42 | Rubber sleeve | |
| 46 | Brush holder (2) | |
| 47** | Carbon brush 230V (2) | |
| 48 | Brush cap (2) | |
| 50 | Housing | |
| 51** | Soft start 230V |
