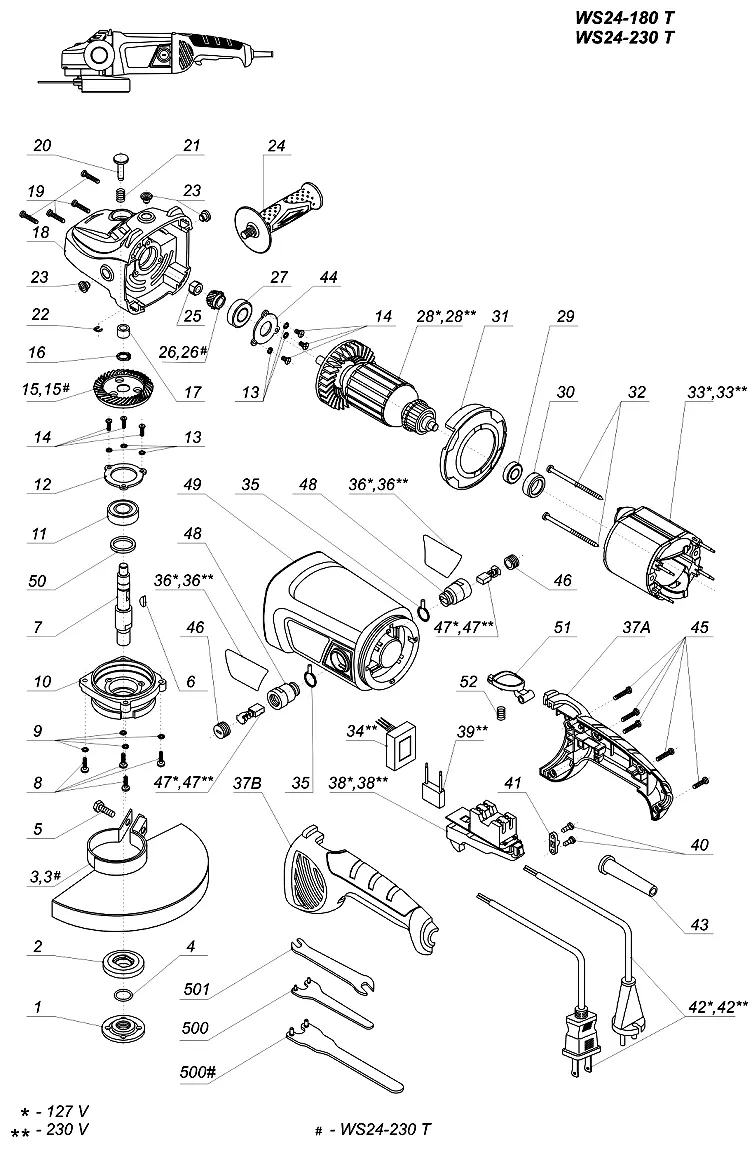

| П-п | Арт | Название |
|---|---|---|
| 1 | Outside flange | |
| 2 | Inner flange | |
| 3 | Wheel guard Ø230 (WS24-230T) | |
| 4 | O-Ring | |
| 5 | Screw M8x25 | |
| 6 | Key 4x5x13 | |
| 7 | Spindle | |
| 8 | Screw M5x16 (4) | |
| 9 | Spring washer Ø5 (4) | |
| 10 | Gear housing cover | |
| 11 | Ball bearing 6202.RS | |
| 12 | Bearing cover Ø28 | |
| 13 | Spring washer Ø4(6) | |
| 14 | Screw M4x10(6) | |
| 15 | Big gear(WS24-230T) | |
| 16 | Circlip for shaft Ø15 | |
| 17 | Bronze bush Ø16xØ10x10 | |
| 18 | Gear housing | |
| 19 | Screw ST5x35 (4) | |
| 20 | Brake pin | |
| 21 | Brake spring | |
| 22 | C ring 6,3 | |
| 23 | Rubber plunge (2) | |
| 24 | Side handle | |
| 25 | Lock nut M8x1 | |
| 26 | Small gear(WS24-230T) | |
| 27 | Ball bearing 6201.RS | |
| 28* | Armature 127V | |
| 28** | Armature 230V | |
| 29 | Ball bearing 629.RS | |
| 30 | Bearing bush Ø32xØ26x9 | |
| 31 | Guide wind circle | |
| 32 | Screw ST5x70 (2) | |
| 33* | Stator 127V | |
| 33** |  |
Stator 230V |
| 34** |  |
Soft start 230V |
| 35 |  |
Connection spring Ø12.5 (2) |
| 36* |  |
Brand label (2) 127 V (WS24-230T) |
| 36** |  |
Brand label (2) 230 V (WS24-230T) |
| 37A |  |
Handle A |
| 37B |  |
Handle B |
| 38* |  |
Switch 127V |
| 38** |  |
Switch 230V |
| 39** |  |
Condenser 0.33 µF 230V |
| 40 |  |
Screw ST4x14(2) |
| 41 |  |
Cord clip |
| 42* |  |
Cord 127V |
| 42** |  |
Cord 230V |
| 43 |  |
Rubber sleeve |
| 44 |  |
Felt ringØ30xØ20x5 |
| 45 |  |
Screw ST4x16 (5) |
| 46 |  |
Brush cap (2) |
| 47* |  |
Carbon brush (2) 127V |
| 47** |  |
Carbon brush (2) 230V |
| 48 |  |
Brush holder (2) |
| 49 |  |
Housing |
| 50 |  |
Bearing cover Ø19,5 |
| 51 |  |
Rotary button |
| 52 |  |
Spring Ø 6x12 |
| 500 |  |
Spanner(WS24-230T) |
| 501 |  |
Hex.spanner M6 |
