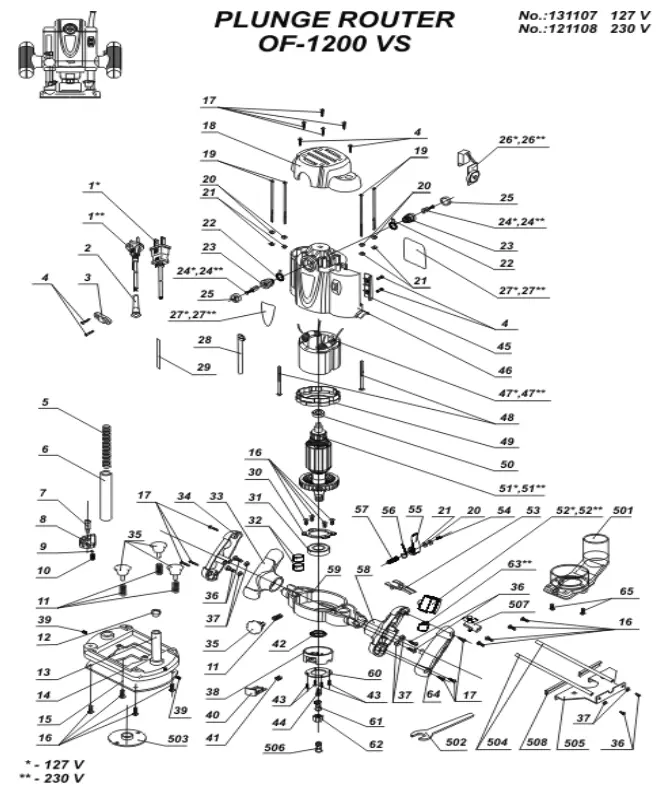

| П-п | Арт | Название |
|---|---|---|
| 1** | Cord 230V | |
| 2 | Rubber sleeve | |
| 3 | Cord clip | |
| 4 | Screw ST4x16 (16) | |
| 5 | Spring Ø15x290 | |
| 6 | Steel pipe Ø24x165 | |
| 7 | Screw | |
| 8 | Depth stop guide | |
| 9 | Steel ball Ø5 | |
| 10 | Spring Ø8x15 | |
| 11 | Spring Ø9x12 (6) | |
| 12 | Retaining ring Ø22 | |
| 13 | Steel pipe Ø22x150 | |
| 14 | Base seat | |
| 15 | Plastic base board | |
| 16 | Bearing bush Ø32xØ28x10 | |
| 17 | Sunc screw M4x8 (10) | |
| 18 | Rear cover | |
| 19 | Screw ST5x45 (4) | |
| 20 | Spring washer Ø5 | |
| 21 | Flat washer Ø5 (5) | |
| 22 | Connection spring Ø20 (2) | |
| 23 | Brush holder (2) | |
| 24** | Carbon brush 230 V (2) | |
| 25 | Brush cap (2) | |
| 26** | Electronic speed regulator 230V | |
| 27** | Name plate 230V (2) | |
| 28 | Depth gauge | |
| 29 | Depth adjusting scale | |
| 30 | Bearing cover | |
| 31 | Ball bearing 6005.RS | |
| 32 | Plastic bush Ø28xØ22x20 | |
| 33 | Left handle | |
| 34 | Left handle cover | |
| 35 | Wing knob M6 (5) | |
| 36 | Screw M5x16 (4) | |
| 37 | Gauge knob | |
| 38 | Front cover | |
| 39 | Pin Ø4x40 (2) | |
| 40 | Lock button | |
| 41 | Spring Ø5x20 (2) | |
| 42 | Show screen | |
| 43 | Snap ring Ø19 | |
| 44 | Micro adjusting knob | |
| 45 | Side cover | |
| 46 | Housing | |
| 47** | Stator 230V | |
| 48 | Screw M5x80 (2) | |
| 49 | Guide wind circle | |
| 50 | Ball bearing 6001.RS | |
| 51** | Armature 230V | |
| 52** | Switch 230V | |
| 53 | Wire box | |
| 54 | Screw M4x14 (2) | |
| 55 | Lock knob | |
| 56 | Rotary spring | |
| 57 | Lock screw | |
| 58 | Right handle | |
| 59 | Head cover | |
| 60 | Screw M6x12 (2) | |
| 61 | Collet 12 mm | |
| 62 | Collet nut M20 | |
| 63** | Condenser 0.33 μF 230V | |
| 64 | Right handle cover | |
| 65 | Washer Ø4 | |
| 66 | Spring washer Ø4 | |
| 67 | Sunc screw M5x10 (6) | |
| 68 | Circlip Ø10 | |
| 69 | Washer Ø9x16 | |
| 70 | Adjusting bolt | |
| 71 | Upper thrust washer | |
| 72 | Spring Ø23x150 | |
| 73 | Plastic tube Ø19x145 | |
| 74 | Lower thrust washer | |
| 75** | Inductor Ø16xØ10x3.5 (2) | |
| 76 | Terminal block (2) | |
| 77 | Screw M4x12 | |
| 78 | Magnetic pole | |
| 79 | Screw ST4x8 (4) | |
| 80 | Screw ST2.5x8 (2) | |
| 81 | Timing button (2) | |
| 82 | Circlip Ø8 (2) | |
| 83 | Screw M5x14 | |
| 84 | Adjusting nut | |
| 85 | Rubber buffer | |
| 86 | Plastic tube Ø19x13 | |
| 87 | Dustproof nut | |
| 88 | Circlip for shaft Ø15 | |
| 89 | Plastic tube Ø27x113 | |
| 501 | Dust ejector | |
| 502 | Spanner | |
| 503 | Guide ring | |
| 504 | Guiding pole Ø8x300 (2) | |
| 505 | Guiding board | |
| 506 | Collet 8 mm | |
| 507 | Localizer | |
| 508 | Lining board (2) | |
| 509 | Collet 6 mm | |
| 510 | Nut M6 (2) | |
| 511 | Adjusting knob | |
| 512 | Wave washer | |
| 513 | Screw pole | |
| 514 | Guide ring bracket | |
| 515 | Washer Ø8 (2) | |
| 516 | Slide frame | |
| 517 | Scale | |
| 518 | Rubber pin | |
| 519 | clip |
