BH 55 25x108 (5100004027) Revision 100/

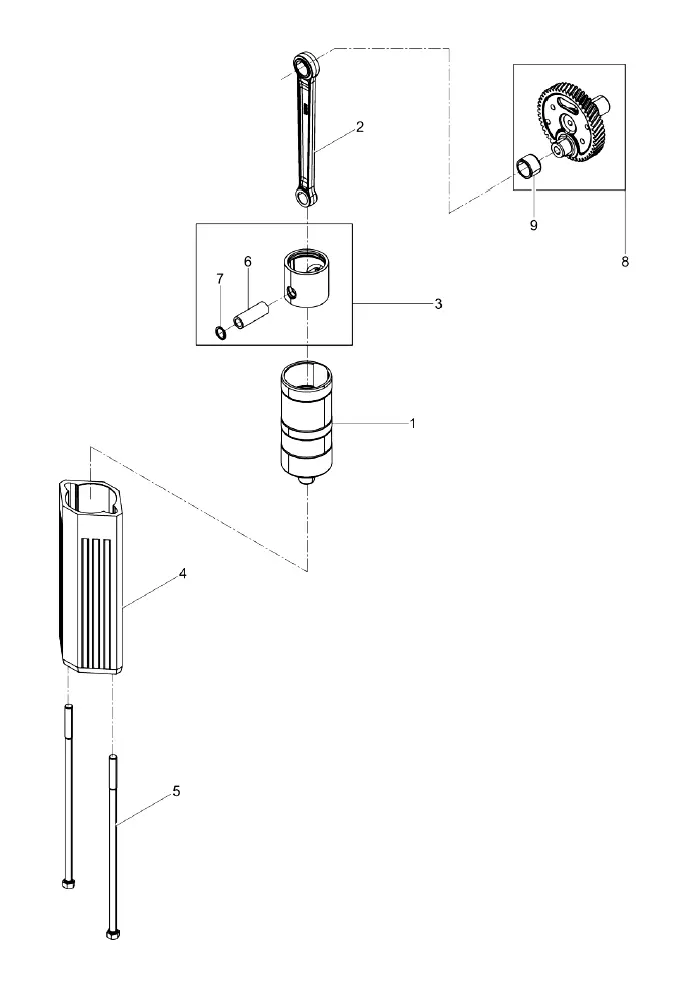

Striking mechanism-Cylinder guide
Striking mechanism-Cylinder guide
| П-п | Арт | Название |
|---|---|---|
| 1 | Percussion piston Schlagkolben | |
| 2 | Connecting rod cpl. Pleuel kpl. | |
| 3 | Guide piston cpl. Führungskolben kpl. | |
| 4 | Guiding cylinder Führungszylinder | |
| 5 | Necked down screw Dehnschraube M12 x 324 75Nm/55ft.lbs | |
| 6 | Retaining ring Sicherungsring 20 x 1,5 DIN472 | |
| 7 | Piston pin Kolbenbolzen | |
| 8 | Crank gear Kurbeltrieb | |
| 9 | Inner raceway Innenring |
