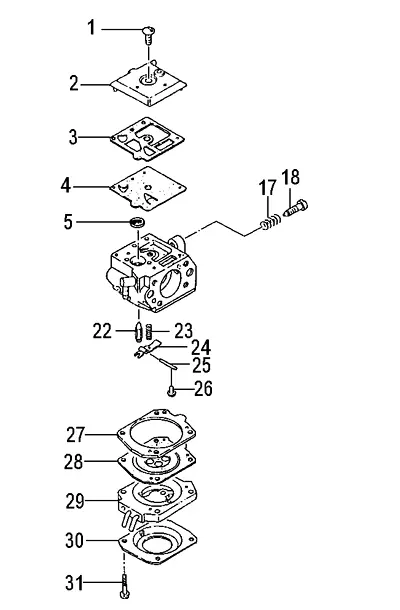

B31-07 CARBURETOR(Serial NO.-ED79999)
B31-07 CARBURETOR(Serial NO.-ED79999)
| П-п | Арт | Название |
|---|---|---|
| 1 | SCREW | |
| 2 | PUMP BODY | |
| 3 | PUMP GASKET | |
| 4 | PUMP DIAPHRAGM | |
| 5 | INLET SCREEN | |
| 17 | IDLE ADJUST SPRING | |
| 18 | IDLE ADJUST SCREW | |
| 22 | NEEDLE VALVE | |
| 23 | VALVE SPRING | |
| 24 | CONTROL LEVER | |
| 25 | HINGE PIN | |
| 26 | HINGE PIN SET SCREW | |
| 27 | DIAPHRAGM GASKET | |
| 28 | METERING DIAPHRAGM COMP. | |
| 29 | AIR PURGE COMP. | |
| 30 | DIAPHRAGM COVER | |
| 31 | SET SCREW |
