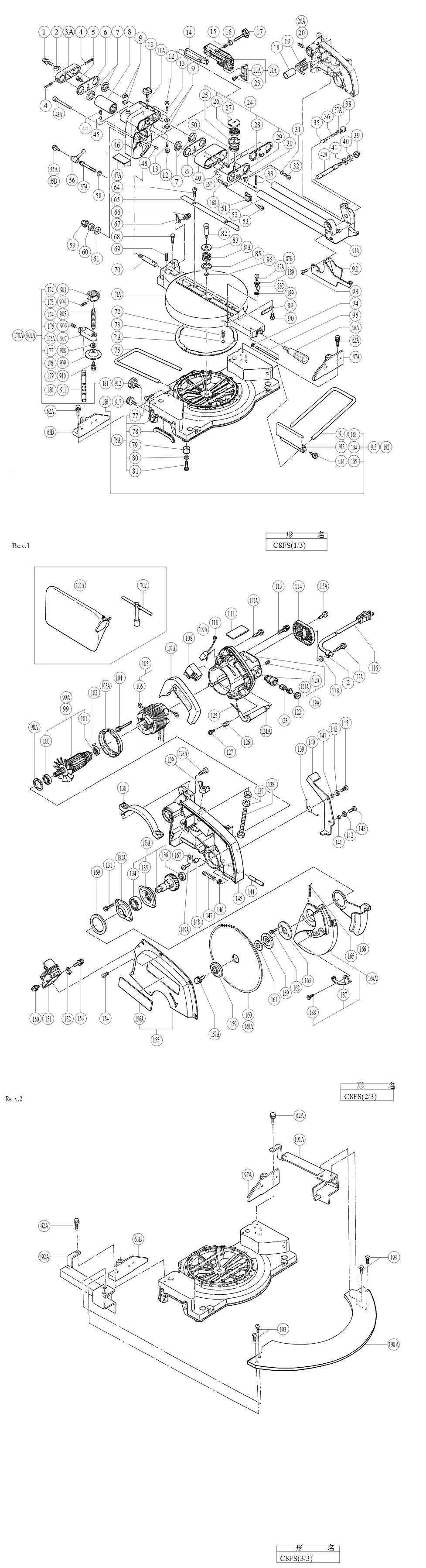

C8FS Деталировка
C8FS Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | MACHINE SCREW (W/WASHERS) M4X16 | |
| *2 | NYLON CLIP ((TILL 5.2004 FOR FRA,BEL,FRG)) | |
| *2 | NYLON CLIP (FOR SUI,GBR,ESP,ITA (SINCE 6.2004 FOR FRA,BEL,FRG)) | |
| 3A | SUPPORT | |
| 4 | ROLL PIN D6X40 (10 PCS.) | |
| 5 | MACHINE SCREW M5X12 (10 PCS.) | |
| 6 | PACKING COVER | |
| 7 | FELT | |
| 8 | BALL BUSHING | |
| 9 | BUSHING | |
| 10 | KNOB BOLT M8X20 | |
| 11A | LOCK SPRING | |
| 12 | LOCK NUT M8 (10 PCS.) | |
| 13 | HEX. SOCKET SET SCREW M8X16 | |
| 14 | HOLDER PIECE | |
| 15 | GOVERNOR SPRING | |
| 16 | SLEEVE | |
| 17 | KNOB BOLT M8X60 | |
| 18 | SLEEVE | |
| 19 | SPRING | |
| 20 | HEX. SOCKET SET SCREW M6X16 (TILL 4.2001) | |
| 20A | HEX. SOCKET SET SCREW M6X16 (SINCE 5.2001) | |
| 21A | GUARD ASS\\\'Y (INCLUD.22A,23) | |
| 22A | GUARD (C) | |
| 23 | FLAT HD. SCREW (BRASS) M4X6 | |
| 24 | SPRING ASS\\\'Y (B) (INCLUD.25-27,29,30 FOR FRG) | |
| 25 | SPRING CASE (B) (FOR FRG) | |
| 26 | SPRING (B) (FOR FRG) | |
| 27 | CAP (B) (FOR FRG) | |
| 28 | COVER (A) (FOR BEL,SUI,HOL,FIN,GBR,NOR,ESP,SIN,ITA,FRA) | |
| 29 | SPRING COVER (FOR FRG) | |
| 30 | CUSHION PIECE (FOR FRG) | |
| 31 | SPRING WASHER M5 (10 PCS.) | |
| 32 | MACHINE SCREW M5X10 (10 PCS.) | |
| 33 | ROLL PIN D5X50 (10 PCS.) (FOR FRG) | |
| 35 | SET PIN | |
| 36 | GAUGE SPRING | |
| 37A | ROLL PIN D3X20 (10 PCS.) | |
| 38 | GRIP | |
| 39 | CAP NUT M12 (TILL 4.2001) | |
| 40 | NUT M12 (10 PCS.) (TILL 4.2001) | |
| 41 | BOLT WASHER M12 (10 PCS.) (TILL 4.2001) | |
| 42B | HINGE SHAFT (A) | |
| 43A | HEX. SOCKET HD. BOLT M6X75 (10 PCS.) | |
| 44 | HEX. SOCKET SET SCREW M8X8 | |
| 45 | BEARING LOCK | |
| 46 | HOLDER (A) | |
| 47A | CAUTION LABEL (A) | |
| 48 | PIN D5X12 (10 PCS.) | |
| 49 | CASE | |
| 50 | MACHINE SCREW M5X12 (10 PCS.) | |
| 51 | LOCK SPRING (FOR FRG) | |
| 52 | SPRING WASHER M5 (10 PCS.) (FOR FRG) | |
| 53 | MACHINE SCREW M5X10 (10 PCS.) (FOR FRG) | |
| 55A | MACHINE SCREW (W/WASHERS) M6X12 (BLACK) (TILL 1.2001) | |
| 55B | MACHINE SCREW (W/WASHERS) M4X12 (BLACK) (SINCE 2.2001) | |
| 56 | CLAMP LEVER | |
| 57A | SPECIAL BOLT ASS\\\'Y M10 (INCLUD.55B) | |
| 58 | WASHER (I) | |
| 59 | CAP NUT M12 | |
| 60 | NUT M12 (10 PCS.) | |
| 61 | BOLT WASHER M12 (10 PCS.) | |
| 62A | BOLT (W/WASHERS) M8X35 (BLACK) | |
| 63B | FENCE (B) | |
| 64 | MACHINE SCREW M6X30 (10 PCS.) | |
| 65 | TABLE INSERT | |
| 66 | MACHINE SCREW (W/WASHERS) M6X10 | |
| 67 | INDICATOR | |
| 68 | NYLOCK BOLT M8X25 | |
| 69 | SLOTTED PIN D8X30 | |
| 70 | HOLDER SHAFT | |
| 71A | TURN TABLE | |
| 72 | SPRING (C) | |
| 73 | STEEL BALL D12.7 (10 PCS.) | |
| 74A | LINER | |
| 75 | HOLDER | |
| 76A | BASE ASS\\\'Y (INCLUD.77-81) | |
| 77 | BOLT M6X25 (10 PCS.) | |
| 78 | BASE GRIP | |
| 79 | BASE RUBBER | |
| 80 | BOLT WASHER M5 (10 PCS.) | |
| 81 | MACHINE SCREW M5X20 (10 PCS.) | |
| 82 | SHAFT (A) | |
| 83 | WASHER (R) | |
| 84A | SPRING (E) | |
| 85 | WASHER (G) | |
| 86 | SPRING WASHER M8 (10 PCS.) | |
| 87A | MACHINE SCREW M4X8 (10 PCS.) (TILL 2.2003) | |
| 87B | MACHINE SCREW (W/WASHERS) M4X12 (BLACK) (SINCE 3.2003) | |
| 88C | INDICATOR ASS\\\'Y (INCLUD.87B) | |
| 89 | SPACER | |
| 90 | MACHINE SCREW M4X10 (10 PCS.) | |
| 91A | HINGE ASS\\\'Y (INCLUD.3A) | |
| 92 | HINGE ARM | |
| 93 | FLAT HD. SCREW M6X16 (10 PCS.) | |
| 94 | RETAINING RING (E-TYPE) FOR D7 SHAFT | |
| 95 | SHAFT | |
| 96A | SIDE HANDLE | |
| 97A | FENCE (A) | |
| 98A | RUBBER RING | |
| 99A | ARMATURE ASS\\\'Y 110V-115V (INCLUD.100,101) | |
| 99S | ARMATURE ASS\\\'Y 220V-230V (INCLUD.100,101) | |
| 100 | BALL BEARING 6001VVCMPS2L | |
| 101 | BALL BEARING 608VVC2PS2L | |
| 102 | BEARING LOCK | |
| 103A | FAN GUIDE | |
| 104 | MACHINE SCREW (W/SP. WASHER) M5X60 | |
| *105 | STATOR ASS\\\'Y (A) 110V (INCLUD.106) | |
| *105 | STATOR ASS\\\'Y (A) 220V-230V (INCLUD.106) | |
| 106 | BRUSH TERMINAL | |
| 107A | HANDLE COVER | |
| 108 | SWITCH (2P PILLAR TYPE) W/O LOCK | |
| 109A | NOISE SUPPRESSOR | |
| 110 | TERMINAL | |
| 111 | NAME PLATE | |
| 112A | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) | |
| 113 | MACHINE SCREW (W/WASHERS) M5X50 (BLACK) | |
| 114 | TAIL COVER | |
| 115A | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) | |
| *116 | CORD ((CORD ARMOR D10.1) FOR HOL,FIN,NOR (TILL 5.2004 FOR FRA,BEL,FRG)) | |
| *116 | CORD ((CORD ARMOR D8.8) FOR GBR) | |
| *116 | CORD ((CORD ARMOR D8.8) FOR SUI) | |
| *116 | CORD ((CORD ARMOR D8.8) FOR ESP,ITA (SINCE 6.2004 FOR FRA,BEL,FRG)) | |
| *116 | CORD ((CORD ARMOR D8.8) FOR SIN) | |
| 117A | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) | |
| 118 | WASHER (B) | |
| 120 | HEX. SOCKET SET SCREW M5X6 | |
| 121A | BRUSH HOLDER | |
| 122 | BRUSH CAP | |
| 123 | CARBON BRUSH (1 PAIR) | |
| 124A | CORD ARMOR D8.8 | |
| *124A | CORD ARMOR D10.1 | |
| 125 | TUBE (D) | |
| 126 | CORD CLIP | |
| 127 | TAPPING SCREW (W/WASHER) D4X16 | |
| 128A | SEAL LOCK HEX. SOCKET HD. BOLT M5X10 | |
| 129 | WING NUT M8 (10 PCS.) | |
| 130 | HANDLE | |
| 131 | FLAT HD.SCREW (W/TOOTHED LOCK WASH)M5X35 | |
| 132A | COVER HOLDER ASS\\\'Y (INCLUD.169) | |
| 133A | SPINDLE ASS\\\'Y (INCLUD.134-136) | |
| 134 | BALL BEARING 6004VVCMPS2L | |
| 135 | BEARING HOLDER | |
| 136 | BALL BEARING 608VVC2PS2L | |
| 137 | NUT M8 (10 PCS.) | |
| 138 | BOLT M8X100 | |
| 139 | STOP SPRING | |
| 140 | LOCK LEVER | |
| 141 | SPACER | |
| 142 | WASHER | |
| 143 | MACHINE SCREW M5X12 (10 PCS.) | |
| 144 | STOPPER PIN | |
| 145 | GEAR CASE (A) | |
| 146 | RETAINING RING (E-TYPE) FOR D7 SHAFT | |
| 147 | SPRING | |
| 148 | COLLAR (B) | |
| 149A | MACHINE SCREW (W/WASHERS) M5X20 (BLACK) | |
| 150 | MACHINE SCREW (W/WASHERS) M5X8 | |
| 151 | DUCT | |
| *152 | NYLON CLIP | |
| *152 | NYLON CLIP (FOR SUI,GBR,ESP,ITA) | |
| 153 | MACHINE SCREW (W/WASHERS) M5X16 | |
| 154 | PAN HD. SCREW M5X10 | |
| 155 | SAW COVER ASS\\\'Y (INCLUD.156) | |
| 156A | HITACHI LABEL | |
| 157A | BOLT (LEFT HAND) W/WASHER M7X17.5 | |
| 159 | WASHER (C) (FOR D30 HOLE) | |
| 160 | TCT SAW BLADE 216MM-D30 HOLE-NT24 (EXCEPT FOR SUI,HOL,ESP) | |
| 160A | TCT SAW BLADE 216MM-D30 HOLE-NT60 (FOR FIN,NOR,SWE,DEN) | |
| 161 | COLLAR (A) FOR D30 HOLE | |
| 162 | FLAT HD. SCREW(W/TOOTHED LOCK WASH)M4X12 | |
| 163 | COVER | |
| 164A | SAFETY COVER ASS\\\'Y (INCLUD.187,188) | |
| 165 | RETURN SPRING | |
| 166 | SUB COVER | |
| 167 | SPRING WASHER M5 (10 PCS.) | |
| 168 | MACHINE SCREW M5X30 (10 PCS.) | |
| 169 | LINER (A) | |
| 170A | VISE AND KNOB ASS\\\'Y (INCLUD.172-181 FOR GBR,SIN,FRA) | |
| 172 |  |
KNOB (FOR GBR,SIN,FRA,ITA) |
| 173 |  |
ROLL PIN D4X25 (10 PCS.) (FOR GBR,SIN,FRA,ITA) |
| 174 |  |
SCREW (FOR GBR,SIN,FRA,ITA) |
| 175 |  |
HEX. SOCKET SET SCREW M8X16 (FOR GBR,SIN,FRA,ITA) |
| 176A |  |
SCREW HOLDER (FOR GBR,SIN,FRA,ITA) |
| 177 |  |
BOLT WASHER M10 (10 PCS.) (FOR GBR,SIN,FRA,ITA) |
| 178 |  |
VISE PLATE (FOR GBR,SIN,FRA,ITA) |
| 179 |  |
MACHINE SCREW (W/WASHERS) M6X10 (FOR GBR,SIN,FRA,ITA) |
| 180 |  |
VISE SHAFT (FOR GBR,SIN,FRA,ITA) |
| 181 |  |
KNOB BOLT M8X20 (FOR GBR,SIN,FRA,ITA) |
| 182 |  |
GUIDE ASS\\\'Y (INCLUD.183-186 FOR SIN) |
| 183 |  |
HOLDER (FOR SIN) |
| 184 |  |
STOPPER (FOR SIN) |
| 185 |  |
KNOB BOLT M6X11 (FOR SIN) |
| 186 |  |
KNOB BOLT M6X22 (FOR SIN) |
| 187 |  |
SUB PLATE |
| 188 |  |
TAPPING SCREW D4X10 |
| 189 |  |
BOLT WASHER M4 (10 PCS.) (TILL 2.2003) |
| 190A |  |
SUB TABLE (FOR GBR,FRA) |
| 191A |  |
TABLE HOLDER (A) (FOR GBR,FRA) |
| 192A |  |
TABLE HOLDER (B) (FOR GBR,FRA) |
| 193 |  |
FLAT HD. SCREW M8X25 (10 PCS.) (FOR GBR,FRA) |
| 701A |  |
DUST BAG (BLACK) |
| 702 |  |
BOX WRENCH 10MM |
| 901A |  |
VISE AND KNOB ASS\\\'Y (INCLUD.903-912) |
| 903 |  |
KNOB |
| 904 |  |
ROLL PIN D4X25 (10 PCS.) |
| 905 |  |
SCREW |
| 906 |  |
HEX. SOCKET SET SCREW M8X16 |
| 907 |  |
SCREW HOLDER |
| 908 |  |
BOLT WASHER M10 (10 PCS.) |
| 909 |  |
VISE PLATE |
| 910 |  |
MACHINE SCREW (W/WASHERS) M6X10 |
| 911 |  |
VISE SHAFT |
| 912 |  |
KNOB BOLT M8X20 |
| 913 |  |
GUIDE ASS\\\'Y (INCLUD.914-917) |
| 914 |  |
HOLDER |
| 915 |  |
STOPPER |
| 916 |  |
KNOB BOLT M6X11 |
| 917 |  |
KNOB BOLT M6X22 |
| 918 |  |
TCT SAW BLADE 216MM-D30 HOLE-NT36 |
| 918 |  |
TCT SAW BLADE 216MM-D30 HOLE-NT60 |
| 919 |  |
TCT SAW BLADE 216MM-D30 HOLE-NT24 |
