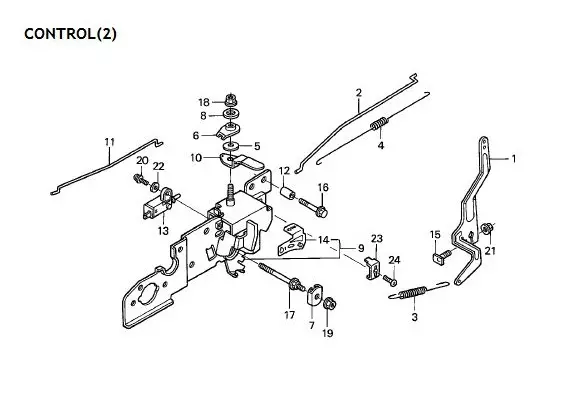

СИСТЕМА УПРАВЛЕНИЯ(2)
СИСТЕМА УПРАВЛЕНИЯ(2)
| П-п | Арт | Название |
|---|---|---|
| 2 | ||
| 3 | SPRING, GOVERNOR | |
| 4 | ||
| 5 | SPRING, LEVER | |
| 6 | WASHER, CONTROL LEVER | |
| 7 | PLATE, LEVER CENTER | |
| 8 | SPACER, CONTROL LEVER | |
| 9 | BASE COMP., CONTROL | |
| 10 | LEVER, CHOKE | |
| 11 | ROD, CHOKE | |
| 13 | SWITCH ASSY., ENGINE STOP (N.O) | |
| 14 | MARK, THROTTLE INDICATION | |
| 15 | BOLT, GOVERNOR ARM | |
| 16 | BOLT, FLANGE, 6X32 | |
| 17 | BOLT, SPECIAL, 6X45 | |
| 18 | NUT, SELF-LOCK, 6MM | |
| 19 | NUT, SELF-LOCK, 5MM | |
| 20 | SCREW-WASHER, 4X12 | |
| 21 | NUT, FLANGE, 6MM | |
| 22 |  |
WASHER, PLAIN, 4MM |
