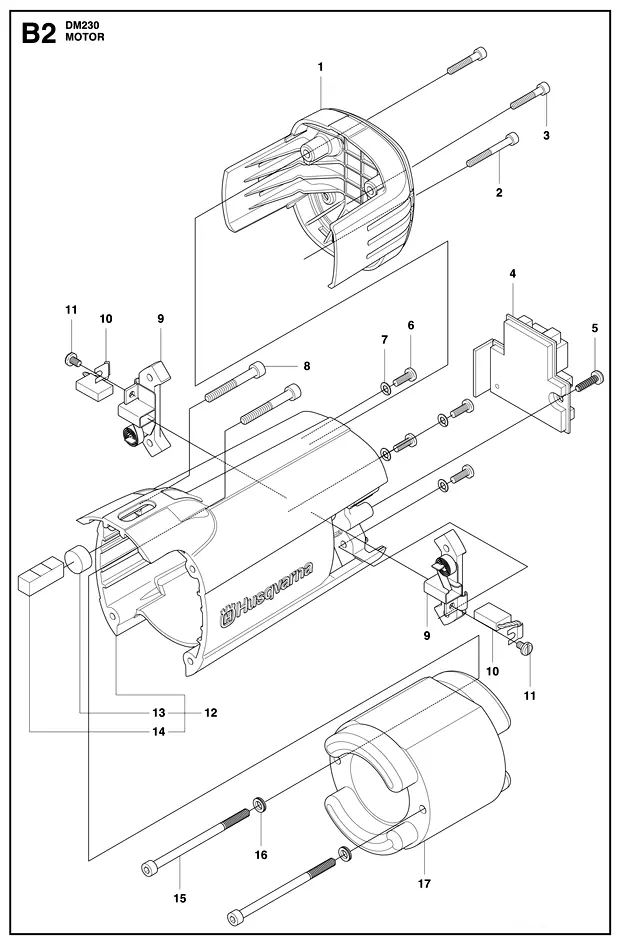

B2 Двигатель
B2 Двигатель
| П-п | Арт | Название |
|---|---|---|
| 1 | REAR COVER | |
| 2 | SCREW | |
| 3 | SCREW | |
| 4a | PRINTED CIRCUIT ASSY 120V | |
| 4b | PRINTED CIRCUIT ASSY 230V | |
| 5 | SCREW | |
| 6 | SCREW | |
| 7 | SPRING WASHER | |
| 8 | SCREW | |
| 9 | BRUSH HOLDER | |
| 10 | CARBON BRUSH | |
| 11 | SCREW | |
| 12 | MOTOR HOUSING ASSY | |
| 13 | LEVELL | |
| 14 | LEVELL | |
| 15 | SCREW | |
| 16 | LOCK WASHER | |
| 17a | STATOR 120V | |
| 17b | STATOR 230V |
