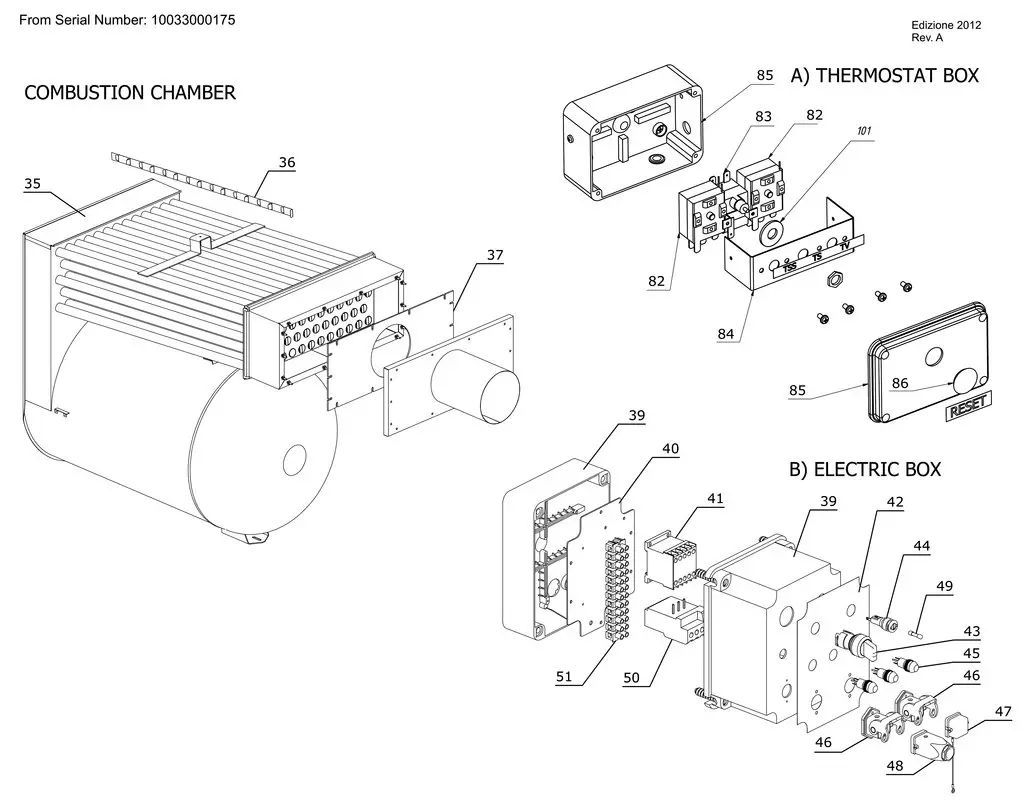

02 Камера сгорания, Термостат, Электрика
02 Камера сгорания, Термостат, Электрика
| П-п | Арт | Название |
|---|---|---|
| 35 | Combustion Chamber | |
| 36 | Bracket For Turbulence | |
| 37 | Exit Smoke Chamber Seal | |
| 39 | Waterprof Case (Front And Back) | |
| 40 | Electric Components Plate | |
| 41 | Contactor 4Kw 400V for BV 470 FS | |
| 42 | Panels Label | |
| 43 | Switch 3P | |
| 44 | Fuseholder 5X20, 6,3A | |
| 45 | Indicator Light 230V | |
| 46 | Socket Case | |
| 47 | Cap For Thermostat Plug | |
| 48 | Thermostat Plug | |
| 49 | Fuse 5X20 3,15A 250V | |
| 50 | Thermal Relay 6-9A for BV 470 FS | |
| 51 | Terminal Block 12T 4^2 | |
| 82 | Capillary Thermostat | |
| 83 | Over-Heat Termostat 16A/250V 90°C-110°C | |
| 84 | Thermostat Support | |
| 85 | Thermostat Plastic Box (Front And Back) | |
| 86 | Button Plug | |
| 101 | Distance Washer fi10x2 | |
| A | Thermostat Box | |
| B | Electric Box for BV 470 FS |
