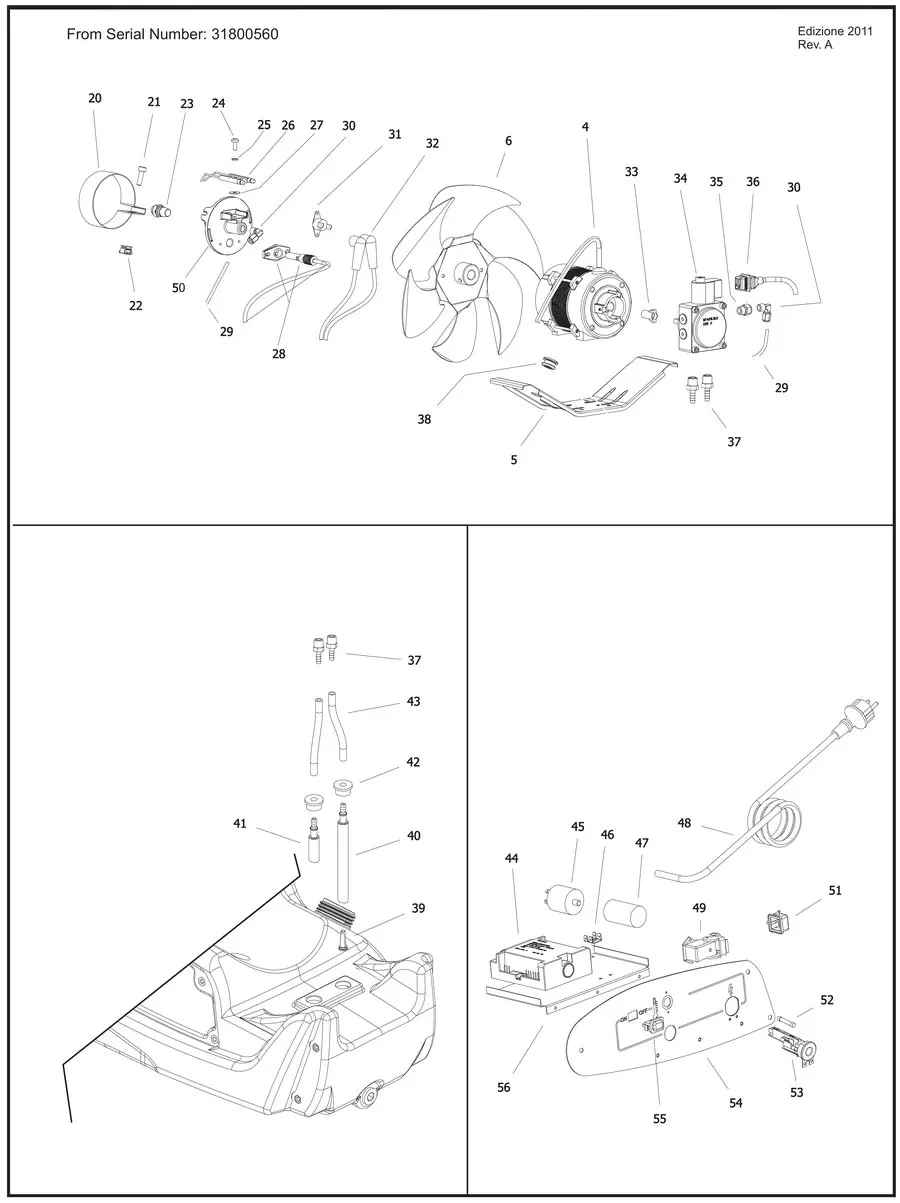

02 Сопло, Мотор, Элeктроклапан топлива, Насос топлива, Фильтр, Электрощит
02 Сопло, Мотор, Элeктроклапан топлива, Насос топлива, Фильтр, Электрощит
| П-п | Арт | Название |
|---|---|---|
| 4 | MOTOR | |
| 5 | MOTOR BRACKET | |
| 6 | FAN | |
| 20 | AIR REGULATION FLAP | |
| 21 | SCREW | |
| 22 | CAGE NUT | |
| 23 | NOZZLE | |
| 24 | SCREW | |
| 25 | WASHER | |
| 26 | BIFILAR ELECTRODE | |
| 27 | WASHER | |
| 28 | PHOTOCELL | |
| 29 | OIL SUPPLY PIPE | |
| 30 | ELBOW | |
| 31 | LIMIT THERMOSTAT | |
| 32 | HT CABLE | |
| 33 | COUPLING | |
| 34 | PUMP | |
| 35 | NIPPLES | |
| 36 | POWER CORD SOLENOID SPOOL | |
| 37 | FITTING 1/4\\\" | |
| 38 | CABLE PROTECTION | |
| 39 | FUEL FILTER | |
| 40 | FUEL LINE TANK-PUMP | |
| 41 | FUEL PIPE PUMP-TANK | |
| 42 | RUBBER BUSHING | |
| 43 | FUEL LINE | |
| 44 | IGNITION CONTROL ASSEMBLY | |
| 45 | POWER LINE RFI FILTER | |
| 46 | POP RIVET WITH TERMIN. 4 WAY | |
| 47 | CAPACITOR 6,3 µf | |
| 48 | POWER CORD | |
| 49 | THERMOSTAT SOCKET | |
| 50 | BURNER FLANGE | |
| 51 | CAP FOR THERMOSTAT SOCKET | |
| 52 | FUSE (6,3X32) 15A | |
| 53 | STRAIN RELIEF | |
| 54 | ELECTR. COMPONENTS PANEL | |
| 55 | ON/OFF SWITCH | |
| 56 | ELECTR. COMPONENTS BASE |
