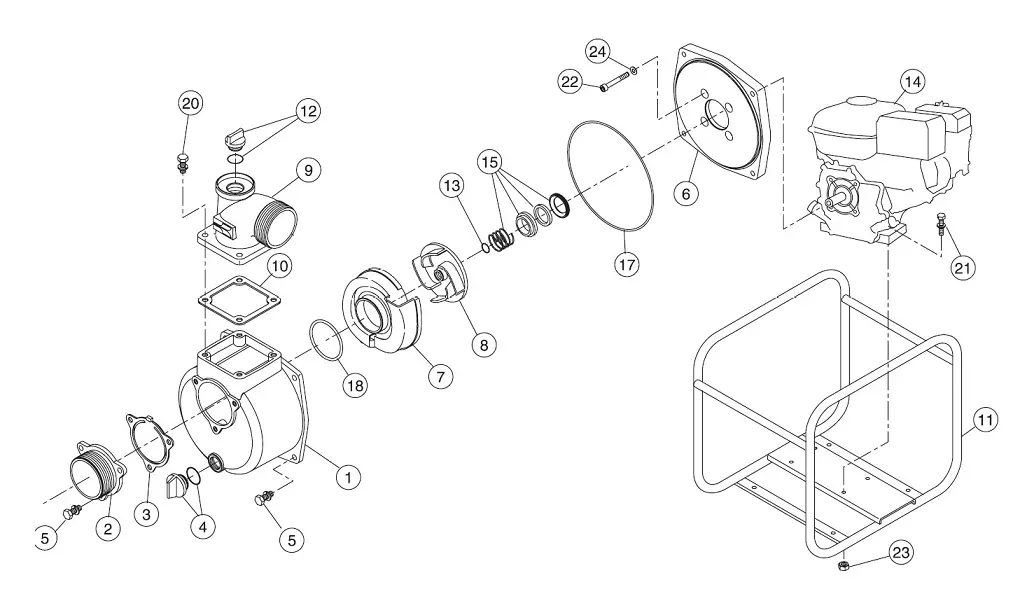

| П-п | Арт | Название |
|---|---|---|
| 1 | PUMP CASING | |
| 2 | SUCTION FLANGE | |
| 3 | CHECK VALVE | |
| 4 | 20A PLUG SET | |
| 5 | M10*25 HEX BOLT | |
| 6 | FLANGE BRACKET | |
| 7 | VOLUTE CASING | |
| 8 | IMPELLER | |
| 9 | DELIVERY FLANGE* | |
| 10 | DEL. FLANGE GASKET | |
| 11 | FRAME ROLL CAGE | |
| 12 | 25A PLUG SET | |
| 13 | ADJUSTING WASHER | |
| 15 | MECHANCIAL SEAL | |
| 17 | O RING | |
| 18 | O RING | |
| 20 | M10*30 HEX BOLT | |
| 21 | M8*40 HEX BOLT | |
| 22 | M8*60 SOCKET BOLT | |
| 23 | M8 NUT | |
| 24 | M8 SEAL WASHER | |
| 25 | RUBBER MOUNT |
