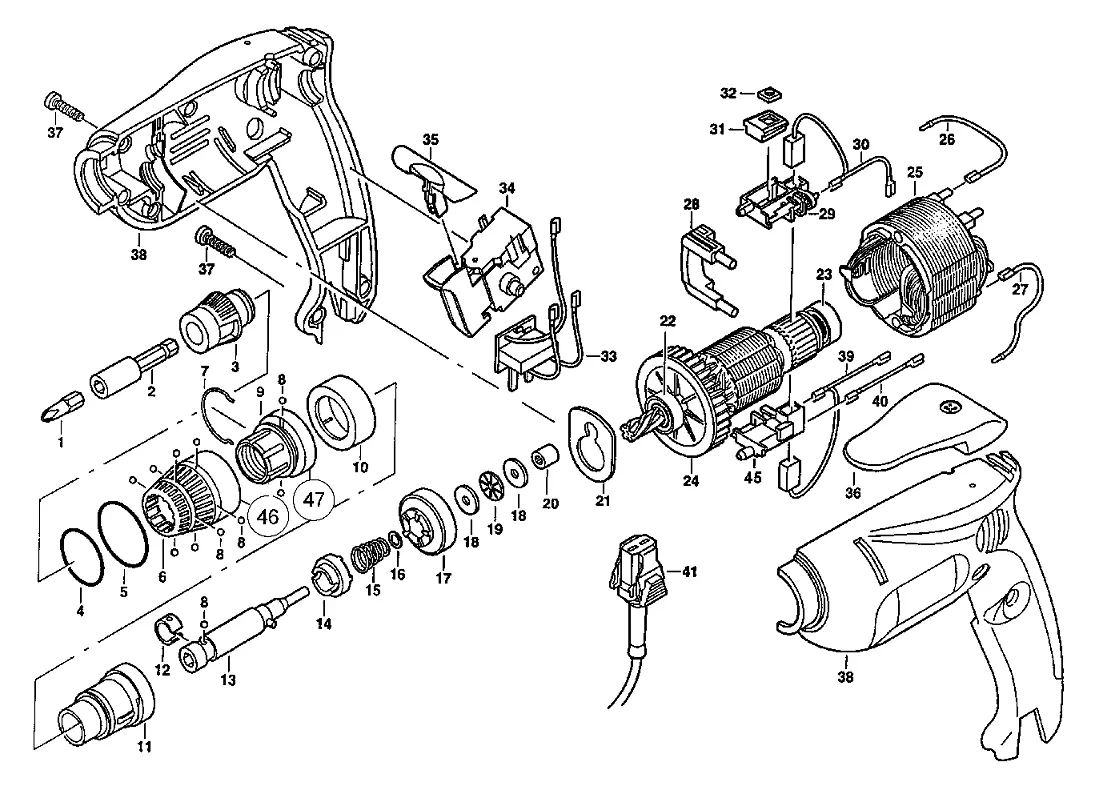

450 TBS (04050401)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
BIT 1/4\\\", NR. |
| 2 |  |
FASTENER |
| 3 |  |
DEPT STOP Wearing part |
| 4 |  |
O-RING |
| 5 |  |
O-RING |
| 6 |  |
ADJUSTING TUBING |
| 7 |  |
CLAMPING DIVICE |
| 8 |  |
STEEL BALL 4 MM DIAM.DIN 5401 |
| 9 |  |
THREAD TUBE |
| 10 |  |
CASING RING |
| 11 |  |
ADAPTER |
| 12 |  |
LEAF SPRINGS |
| 13 |  |
SPINDLE |
| 14 |  |
COUPLING |
| 15 |  |
PRESSURE SPRING |
| 16 |  |
SPACER 0,2 |
| 17 |  |
HOLLOW WHEEL |
| 18 |  |
WASHER |
| 19 |  |
AXIAL DISC |
| 20 |  |
SLIDING BEARING |
| 21 |  |
BEARING PART |
| 22 |  |
BALL BEARING |
| 23 |  |
BALL BEARING 607 ZZ |
| 24 |  |
ARMATURE WITH BEARINGS |
| 25 | STATOR MAXX POWER | |
| 26 | STRANDED WIRE 190 MM | |
| 27 | STRANDET WIRE 140 MM | |
| 28 | ARCH FOR CORD | |
| 29 | CARBON BRUSH HOLDER | |
| 30 | CARBON BRUSH WITH WIRE | |
| 31 | BELT HOOK RETAINER | |
| 32 | NUT M 5 | |
| 33 | RADIO INTERFERENCE SUPPRESSION | |
| 34 | ELECTRONIC SWITCH | |
| 35 | SWITCHING SHAFT | |
| 36 | BELT HOOK | |
| 37 | SCREW | |
| 38 | CASING | |
| 39 | CARBON BRUSH WITH WIRE | |
| 40 | CORD 60 MM | |
| 41 | MAINS SUPPLY MODULE | |
| 45 | CARBON BRUSH HOLDER | |
| 46 | ADJUSTING TUBING | |
| 47 | THREAD TUBE |
