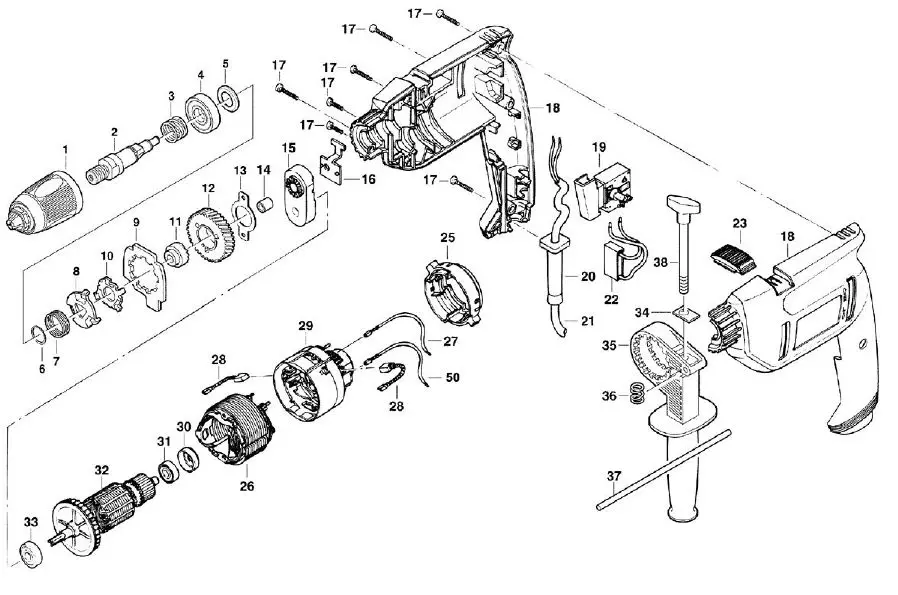

| П-п | Арт | Название |
|---|---|---|
| 1 | QUICK ACTION CHUCK | |
| 2 | SPINDLE | |
| 3 | COMPRESSION SPRING | |
| 4 | BALL BEARING 11496 | |
| 5 | PRESSURE PLATE | |
| 6 | RETAINING RING A 15 X1,0 V | |
| 7 | PRESSURE SPRING | |
| 8 | LOCKING PLATE | |
| 9 | ARRESTOR PLATE | |
| 10 | FOLLOWER | |
| 11 | HAMMER RING | |
| 12 | GEAR WHEEL | |
| 13 | BUFFER PLATE | |
| 14 | NEEDLE BUSH | |
| 15 | PERCUSSION PLATE | |
| 16 | SWITCHING PLATE | |
| 17 | SCREW KT 4X23 | |
| 18 | CASING | |
| 19 | ELECTRONIC-SWITCH | |
| 20 | RUBBER BUSHING | |
| 21 | POWER-CORD | |
| 22 | CAPACITOR 24812 | |
| 23 | CHANGE OVER SWITCH | |
| 25 | SWITCHING RING | |
| 26 | STATOR MAXX POWER | |
| 27 | WIRE,YELLOW | |
| 28 | CARBON BRUSH | |
| 29 | ENDSHIELD MAXX +C.BRUSH RING | |
| 30 | RUBBER BEARING BUSHING | |
| 31 | BALL BEARING 26466/28508 | |
| 32 | ARMATURE WITH BEARINGS | |
| 33 | BALL BEARING 608 DD | |
| 34 | CLAMPING PART | |
| 35 | HANDLE CPL. | |
| 36 | PRESSURE SPRING | |
| 37 | DEPT STOP | |
| 38 | WING NUT | |
| 50 |  |
WIRE,BLACK |
| 101 |  |
LOGO |
| 102 |  |
TYPE LOGO |
| 103 |  |
USER MANUAL |
