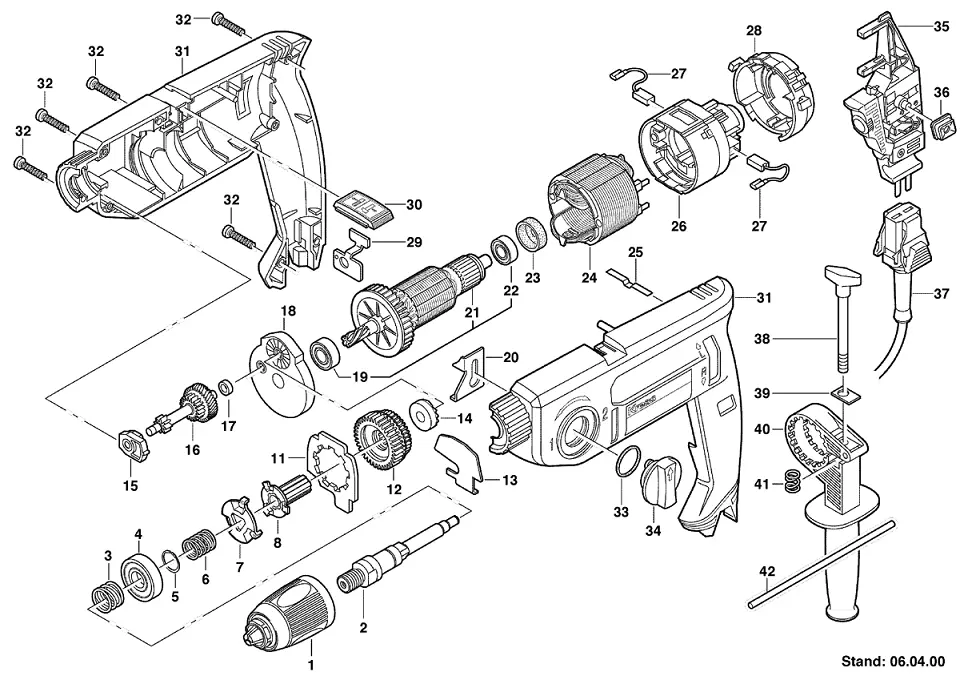

SBLR 2480/s (04130401)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
QUICK ACTION CHUCK |
| 2 |  |
SPINDLE |
| 3 |  |
COMPRESSION SPRING |
| 4 |  |
BALL BEARING |
| 5 |  |
RETAINING RING A 15 X1,0 V |
| 6 |  |
SPRING |
| 7 |  |
LOCKING PLATE |
| 8 | COUPLING RING | |
| 11 | ARRESTOR PLATE | |
| 12 | GEAR WHEEL BLOCK | |
| 13 | BUFFER PLATE | |
| 14 | STOP DISK | |
| 15 | ADADAPTER WITH NEEDLE BUSH | |
| 16 | BACK GEAR SHAFT | |
| 17 | DISTANCE SLEEVE | |
| 18 | PERCUSSION PLATE | |
| 19 | BALL BEARING 608 DD | |
| 20 | SWITCHING PLATE | |
| 21 | ARMARTURE | |
| 22 | BALL BEARING 607 ZZ | |
| 23 | RUBBER BEARING BUSHING | |
| 24 | STATOR MAXX POWER | |
| 25 | STOP SPRING | |
| 26 | ENDSHIELD MAXX +C.BRUSH RING | |
| 27 | CARBON BRUSH | |
| 28 | L/R-SWITCHING RING | |
| 29 | SWITCHING PLATE | |
| 30 | CHANGE OVER SWITCH | |
| 31 | CASING | |
| 32 | SCREW KT 4,0 x 19 | |
| 33 | O-RING | |
| 34 | SWITCHING KNOB | |
| 35 | SWITCHING MODULE | |
| 36 | LOCK KNOB ADAPTER | |
| 37 | MAINS SUPPLY MODULE | |
| 38 | WING NUT | |
| 39 | CLAMPING PART | |
| 40 | HANDLE HMT 910 CPL. | |
| 41 | PRESSURE SPRING | |
| 42 | DEPT STOP |
