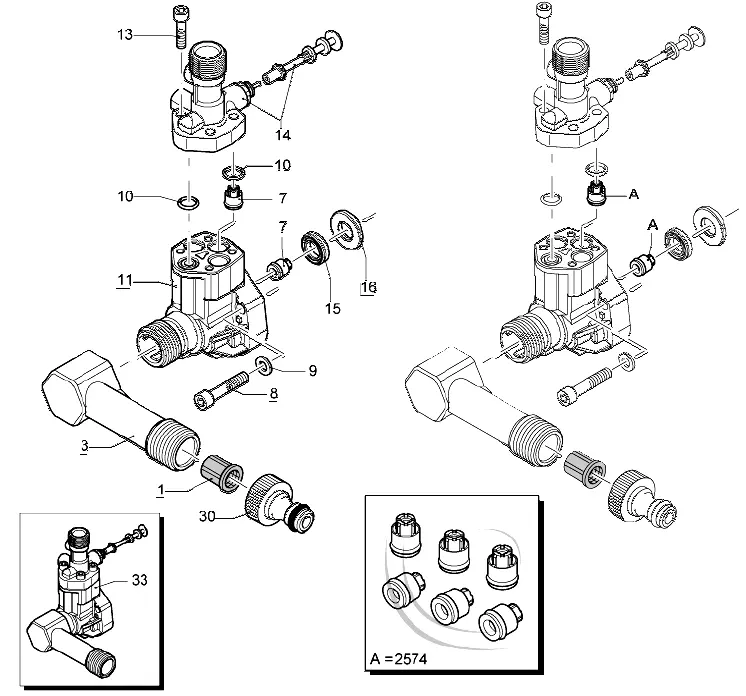

Схема 2
Схема 2
| П-п | Арт | Название |
|---|---|---|
| 2_A | VALVES SET EHP4011/371 RHP3710 | |
| 2_001 | SUCTION STRAINER RHP410/4121/4130 | |
| 2_003 | SUCTION FITTING | |
| 2_007 | COMPLETE VALVE EHP4011/371 RHP3710 | |
| 2_008 | SCREW M6X30 RHP51354120/4130/5140 | |
| 2_009 | WASHER DIA.I 6.4 EHP1037/1137 | |
| 2_010 | O-RING | |
| 2_011 | PUMP HEAD EHP1037/1137 | |
| 2_013 | SCREW M5X20 EHP1037/1137 | |
| 2_014 | OUTLET FITTING ASSEMBLY EHP1137 | |
| 2_015 | GASKET DIA.12X18 EHP1037/1137 | |
| 2_016 | GASKET SUPPORT RING EHP1037/1137/12 | |
| 2_030 | ATTACHMENT FOR TAP+GASKET RHP410/41 | |
| 2_033 | HEAD ASSEMBLY + TSS KIT EHP1137 |
