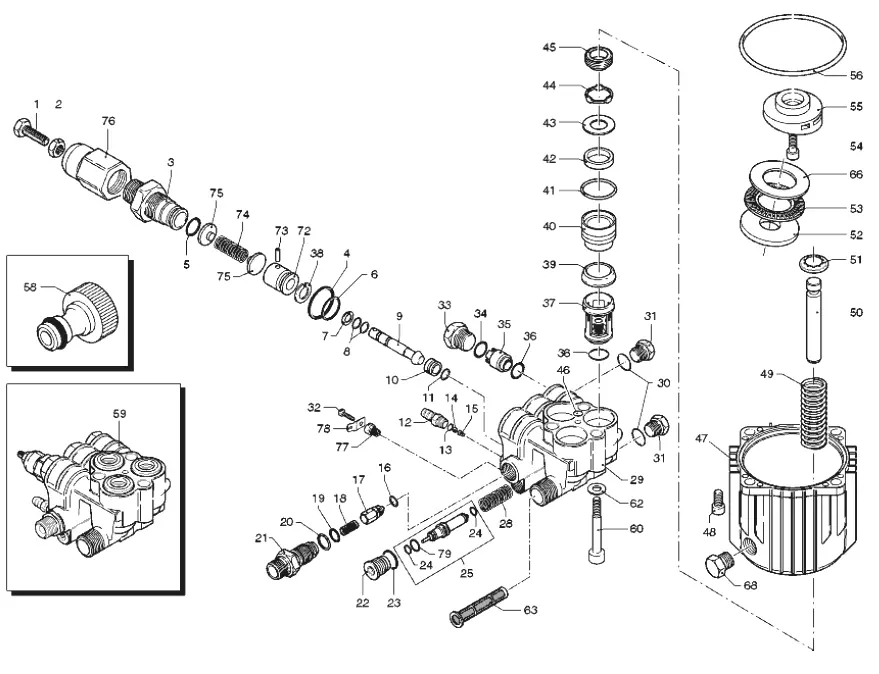

Помпа
| П-п | Арт | Название |
|---|---|---|
| 1 | ITEM DISCONTINUED TO CANCEL | |
| 2 | NUT | |
| 3 | PISTON GUIDE | |
| 4 | O-RING | |
| 5 | O-RING | |
| 6 | O-RING | |
| 7 | RING | |
| 7 | SCREW | |
| 8 | O-RING | |
| 9 | LOWER PISTON | |
| 10 | VALVE SEAT | |
| 11 | O-RING | |
| 12 | HOSE TAIL | |
| 13 | O-RING 4.48 X 1.78 | |
| 14 | STEEL BALL | |
| 15 | SPRING | |
| 16 | O-RING 4X2.5 | |
| 17 | JET | |
| 18 | SPRING | |
| 19 | O-RING 12.42X1.78 | |
| 20 | O-RING | |
| 21 | CONNECTOR | |
| 22 | PLUG | |
| 25 | SYSTEM TRONIC PISTON | |
| 28 | SPRING | |
| 29 | PUMP HEAD RHP6150 | |
| 30 | O-RING 10.82 X 1.78 | |
| 32 | ITEM DISCONTINUED TO CANCEL | |
| 33 | PLUG | |
| 34 | O-RING | |
| 35 | VALVE EHP1360X PRO RHP1120/1150 | |
| 36 | O-RING 15.54X2.62 | |
| 37 | COMPLETE VALVE | |
| 38 | RING | |
| 39 | GASKET | |
| 40 | PISTON GUIDE | |
| 41 | O-RING | |
| 42 | GASKET | |
| 43 | ITEM DISCONTINUED TO CANCEL | |
| 44 | SPACER | |
| 45 | SEAL | |
| 46 | O-RING | |
| 47 | PUMP HOUSING | |
| 48 | SCREW M8X20 | |
| 49 | SPRING | |
| 50 | PISTONS KIT | |
| 51 | RING RHP6150 | |
| 52 | RAIL | |
| 53 | BEARING | |
| 54 | SCREW M8X16 | |
| 55 | WOBBLE PLATE | |
| 56 | O-RING | |
| 58 | CONNECTOR | |
| 59 | HEAD ASSEMBLY | |
| 60 | SCREW M10X65 | |
| 62 | WASHER | |
| 63 | FILTER | |
| 66 | RAIL | |
| 68 | PLUG | |
| 72 | UPPER PISTON | |
| 73 | PIN | |
| 74 | ITEM DISCONTINUED TO CANCEL | |
| 75 | SPRING PLATE RHP6150 | |
| 76 | ITEM DISCONTINUED TO CANCEL | |
| 77 | SCREW | |
| 78 | ITEM DISCONTINUED TO CANCEL | |
| 79 | O-RING RHP2150/5140 |
