RBV26 (5133000175)(RBV26#1)(от BL-2010051801 -)(от 10.05.2010 до - )/

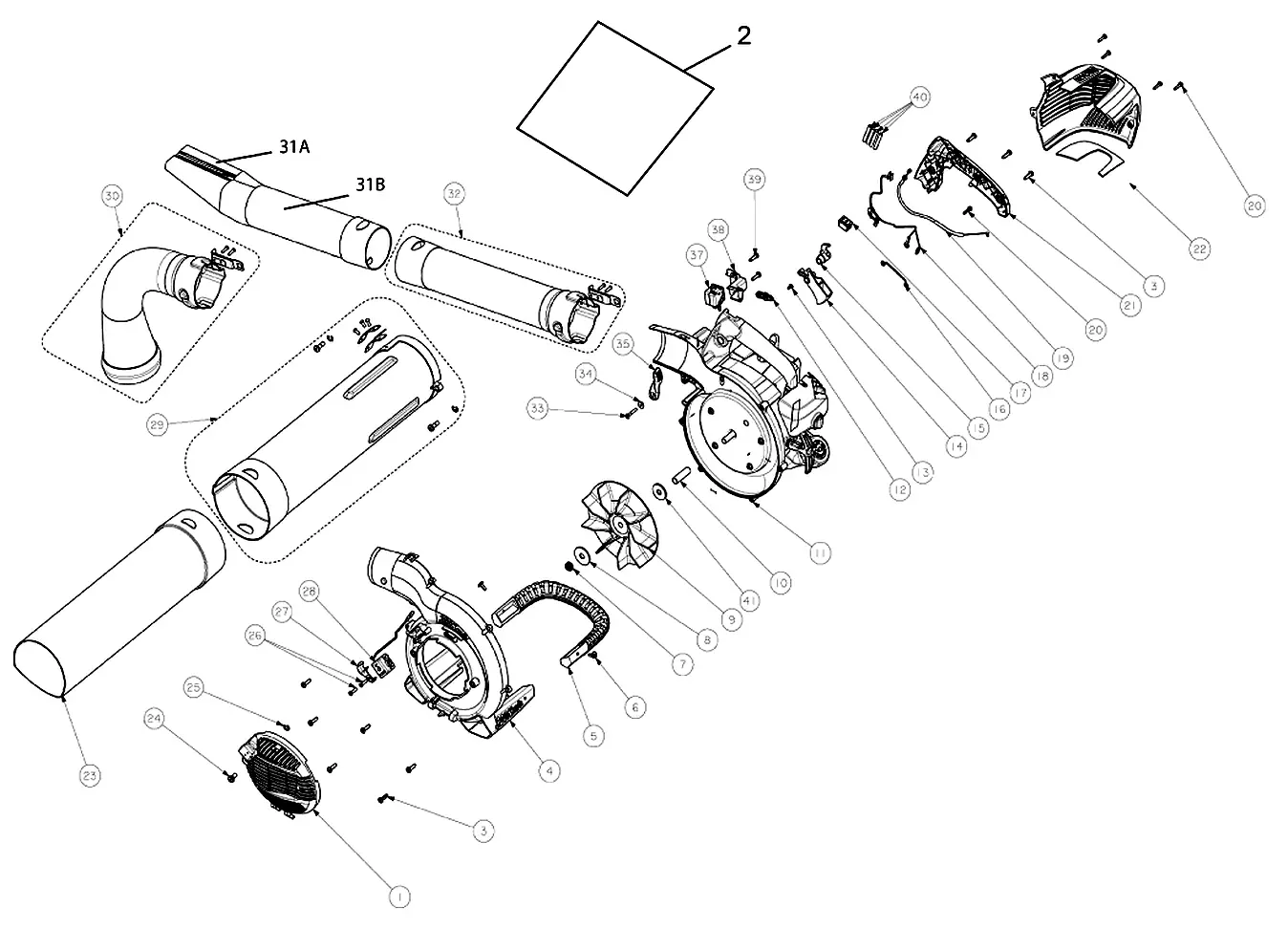

01 Схема 1
01 Схема 1
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
COVER |
| 2 |  |
DUST BAG |
| 3 |  |
SCREW |
| 4 |  |
HOUSING |
| 5 |  |
HANDLE |
| 6 |  |
SCREW |
| 7 |  |
NUT |
| 8 |  |
WASHER FLAT HBV30 |
| 9 |  |
FAN HBL26YB |
| 10 |  |
SPACER |
| 12 |  |
LEVEL RBL30MVA |
| 13 |  |
SCREW RBL30MVA |
| 14 |  |
TRIGGER |
| 15 |  |
TRIGGER RBL30MVA |
| 16 |  |
WIRE |
| 17 |  |
SWITCH |
| 18 |  |
WIRE |
| 19 |  |
CABLE |
| 20 |  |
SCREW HLT26CD |
| 21 |  |
COVER |
| 22 |  |
COVER |
| 23 |  |
TUBE |
| 24 |  |
SCREW |
| 25 |  |
BOLT |
| 26 |  |
NUT RBL26BV |
| 27 |  |
COVER |
| 28 |  |
SWITCH |
| 29 |  |
TUBE |
| 30 |  |
TUBE |
| 31A |  |
NOZZLE |
| 31B |  |
TUBE |
| 32 |  |
TUBE |
| 33 |  |
SCREW RBL26BV |
| 34 |  |
WASHER RBL26BV |
| 35 |  |
CRUISE LEVER RBL26BV |
| 37 |  |
SWITCH |
| 38 | HANDLE COVER | |
| 39 | SCREW | |
| 41 | WASHER HBL26YB | |
| 2 | RAC358 RPLT COLLECTION BAG EMEA |
