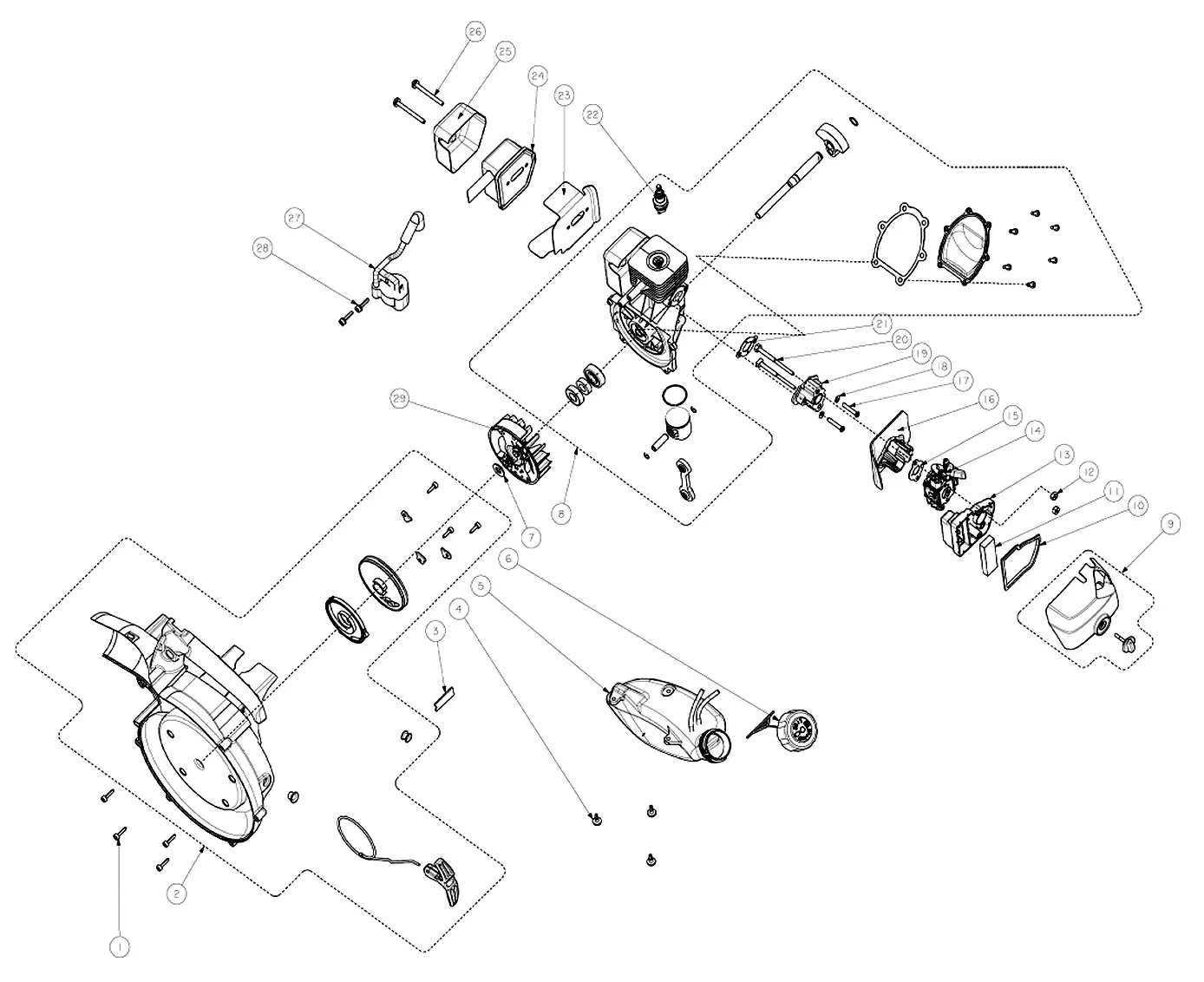

02 Схема 2
02 Схема 2
| П-п | Арт | Название |
|---|---|---|
| 1 | SCREW HLT26CD | |
| 2 | HOUSING | |
| 3 | PLATE | |
| 4 | SCREW HLT26CD | |
| 5 | TANK | |
| 6 | CAP | |
| 7 | WASHER | |
| 8 | SHORT BLOCK | |
| 9 | COVER | |
| 10 | GASKET | |
| 11 | FILTER | |
| 12 | NUT | |
| 13 | HOUSING | |
| 14 | CARBURETTOR | |
| 15 | GASKET RHT2660DA | |
| 16 | INSULATOR | |
| 17 | SCREW RHT2660DA | |
| 18 | WASHER RHT2660DA | |
| 19 | HEAT DAM RHT2660DA | |
| 20 | SCREW RHT2660DA | |
| 21 | GASKET HLT26CD | |
| 22 | SPARK PLUG RCJ6Y | |
| 23 | GASKET | |
| 24 | MUFFLER | |
| 25 | HOUSING COVER | |
| 26 | SCREW | |
| 27 | COIL | |
| 28 | SCREW HLT26CD | |
| 29 | ROTOR |
