RBV26 (5133001651)(5133001651#1)(от BC-2012020208 -)(от 01.09.2013 до - )/

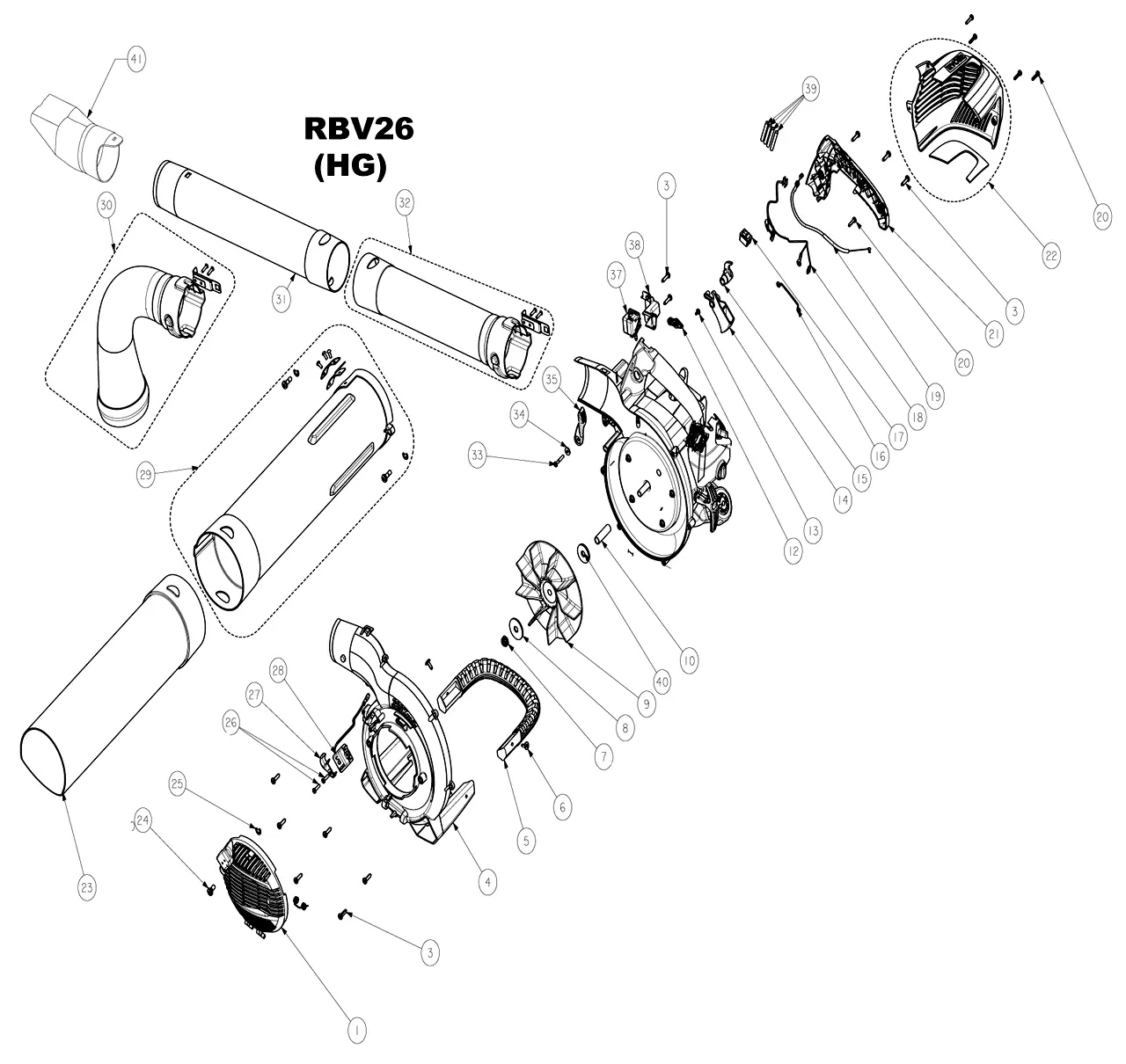

01 Схема 1
01 Схема 1
| П-п | Арт | Название |
|---|---|---|
| 1 | COVER | |
| 2 | DUST BAG | |
| 3 | SCREW | |
| 4 | HOUSING | |
| 5 | HANDLE | |
| 6 | SCREW | |
| 7 | NUT | |
| 8 | WASHER FLAT HBV30 | |
| 9 | FAN HBL26YB | |
| 10 | WASHER | |
| 12 | LEVER | |
| 13 | SCREW RBL30MVA | |
| 14 | TRIGGER | |
| 15 | TRIGGER RBL30MVA | |
| 16 | WIRE | |
| 17 | SWITCH | |
| 18 | WIRE | |
| 19 | CABLE | |
| 20 | SCREW HLT26CD | |
| 21 | COVER | |
| 22 | COVER | |
| 23 | TUBE | |
| 24 | SCREW | |
| 25 | BOLT | |
| 26 | NUT RBL26BV | |
| 27 | COVER | |
| 28 | SWITCH | |
| 29 | TUBE | |
| 30 | TUBE | |
| 31 | TUBE | |
| 32 | TUBE | |
| 33 | SCREW RBL26BV | |
| 34 | WASHER RBL26BV | |
| 35 | LEVER | |
| 37 | SWITCH | |
| 38 | HANDLE COVER | |
| 39 | TUBE | |
| 40 | WASHER HBL26YB | |
| 41 |  |
NOZZLE |
