RBV26 (5133001651)(5133001651#1)(от BC-2012020208 -)(от 01.09.2013 до - )/

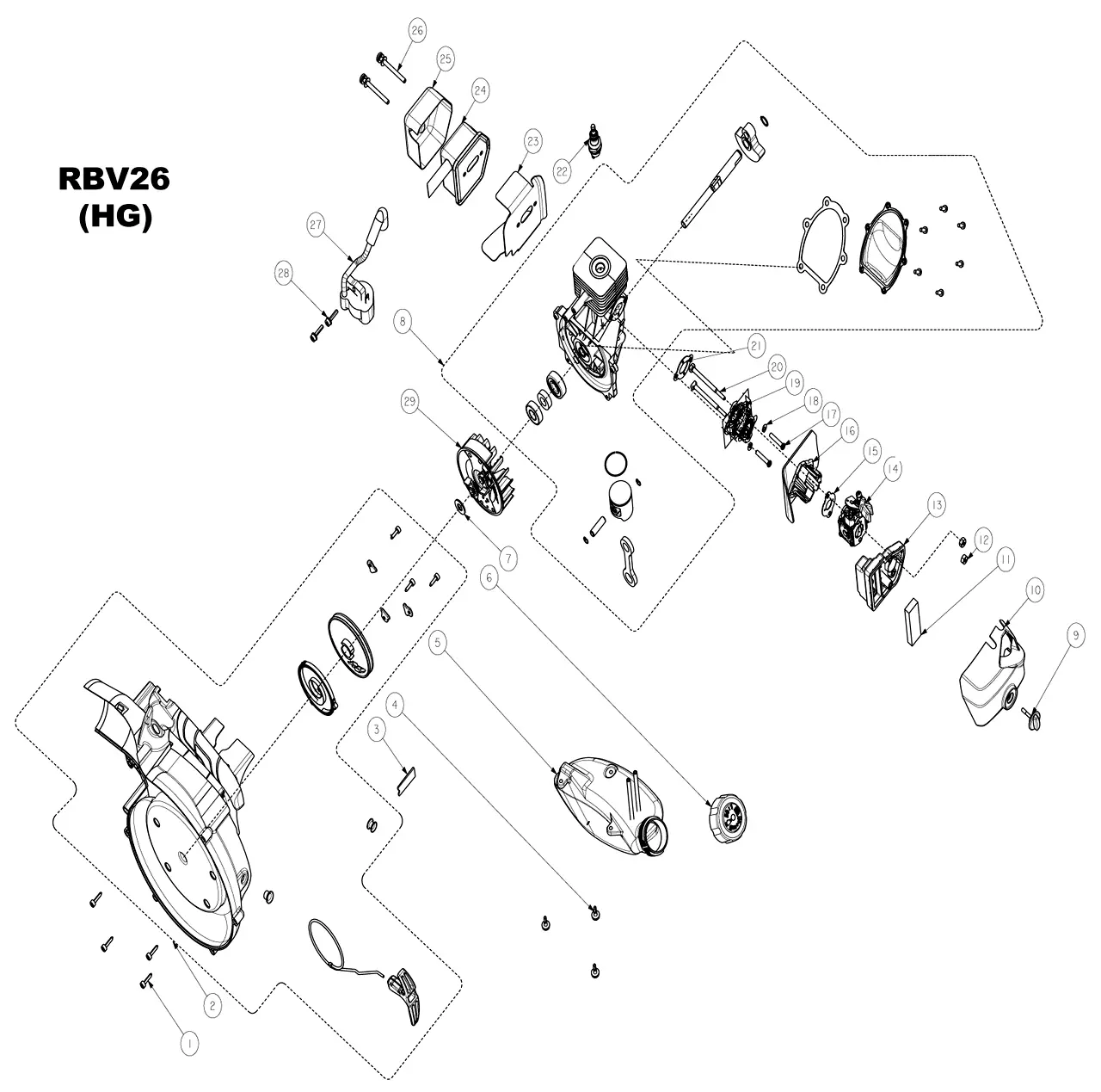

02 Схема 2
02 Схема 2
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
SCREW HLT26CD |
| 2 |  |
RECOIL STARTER |
| 3 |  |
PLATE |
| 4 |  |
SCREW HLT26CD |
| 5 |  |
TANK |
| 6 |  |
CAP |
| 7 |  |
WASHER |
| 8 |  |
SHORT BLOCK |
| 9 |  |
KNOB |
| 10 |  |
COVER |
| 11 |  |
FILTER |
| 12 |  |
NUT |
| 13 |  |
BASE PLATE |
| 14 |  |
CARBURETOR |
| 15 |  |
GASKET RHT2660DA |
| 16 |  |
TUBE |
| 17 |  |
SCREW RHT2660DA |
| 18 |  |
WASHER RHT2660DA |
| 19 |  |
HEAT DAM RHT2660DA |
| 20 |  |
SCREW |
| 21 |  |
GASKET HLT26CD |
| 22 |  |
SPARK PLUG |
| 23 |  |
GASKET |
| 24 |  |
MUFFLER |
| 25 |  |
WASHER HCS3435 |
| 26 |  |
SCREW |
| 27 |  |
COIL |
| 28 |  |
SCREW HLT26CD |
| 29 |  |
FLYWHEEL |
