Двигатель

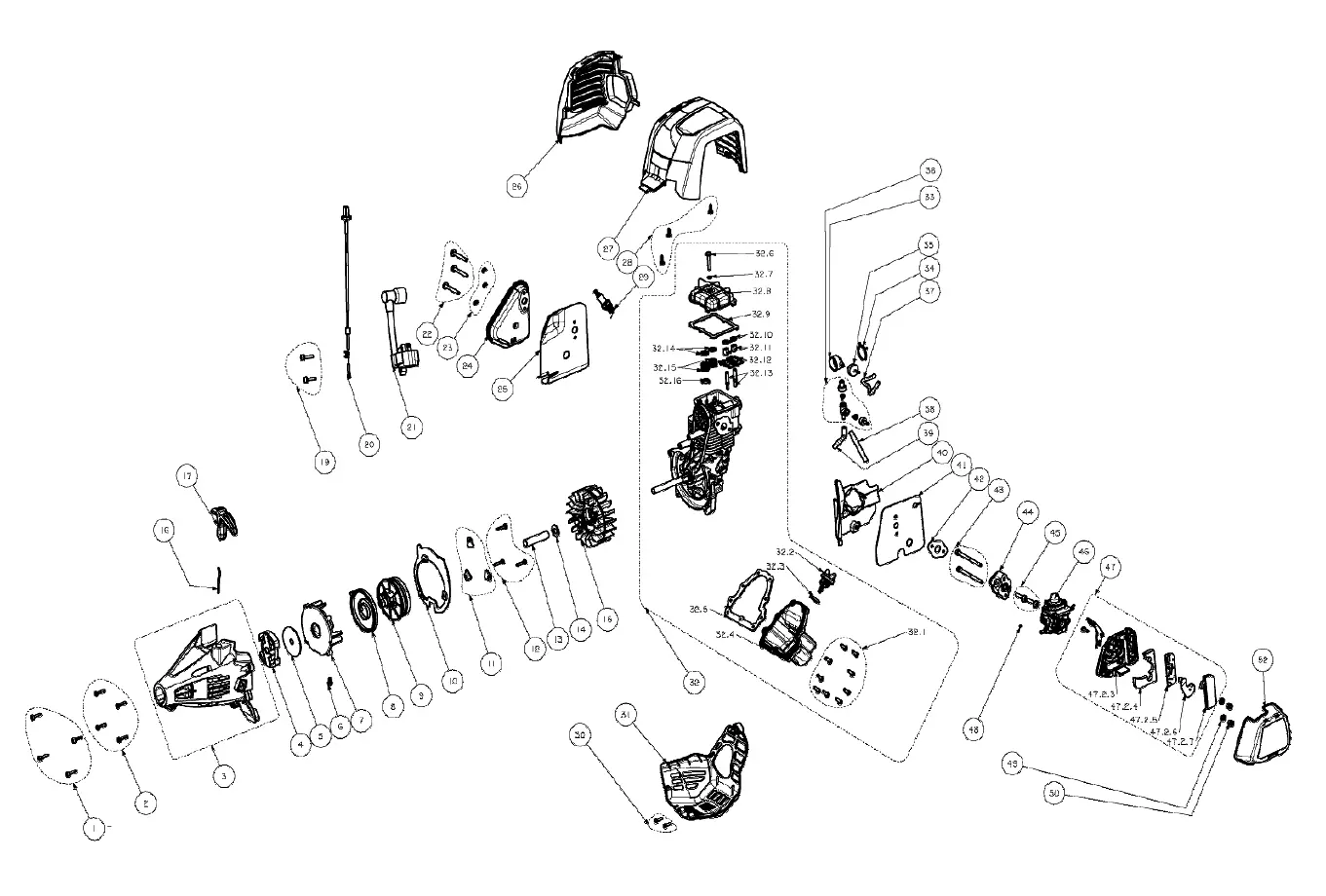

Двигатель
| П-п | Арт | Название |
|---|---|---|
| 1 | SCREW | |
| 2 | SCREW | |
| 3 | HOUSING | |
| 4 | COUPLING | |
| 5 | SPACER | |
| 6 | SCREW | |
| 7 | ACCEPTANCE | |
| 8 | SPRING | |
| 9 | PULLEY | |
| 10 | PLATE | |
| 11 | HOLDER | |
| 12 | SCREW | |
| 13 | SPACER | |
| 14 | WASHER | |
| 15 | FLYWHEEL | |
| 16 | ROPE | |
| 17 | GRIP | |
| 18 | NUT | |
| 19 | SCREW | |
| 20 | CUTTING LINE | |
| 21 | COIL | |
| 22 | SCREW | |
| 23 | SPRING WASHER | |
| 24 | MUFFLER | |
| 26 | HOUSING | |
| 27 | HOUSING | |
| 28 | SCREW | |
| 29 | SPARK PLUG | |
| 30 | SCREW | |
| 31 | HOUSING COVER | |
| 32 | SHORT BLOCK | |
| 32.1 | SCREW | |
| 32.2 | GAUGE | |
| 32.3 | O-RING | |
| 32.4 | HOUSING | |
| 32.5 | GASKET | |
| 32.6 | SCREW RLT430CES | |
| 32.7 | O-RING | |
| 32.8 | COVER | |
| 32.9 | GASKET | |
| 32.10 | NUT | |
| 32.11 | BUSH | |
| 32.12 | ROCKER | |
| 32.13 | STUD | |
| 32.14 | RETAINER | |
| 32.15 | SPRING | |
| 32.16 | SEAL | |
| 33 | RUBBER | |
| 34 | CLAMP | |
| 35 | VALVE | |
| 36 | VALVE | |
| 37 | HOSE | |
| 38 | HOSE | |
| 39 | HOSE | |
| 40 | DEFLECTOR | |
| 41 | GASKET | |
| 42 | GASKET | |
| 43 | BOLT | |
| 44 | SPACER | |
| 45 | SCREW | |
| 46 | CARBURETOR | |
| 47 | AIR FILTER | |
| 47.1 | COVER | |
| 47.2 | BASE PLATE | |
| 47.2.4 | FELT | |
| 47.2.5 | DEFLECTOR | |
| 47.2.6 | PLATE | |
| 47.2.7 | RUBBER | |
| 48 | RUBBER | |
| 49 | WASHER | |
| 50 |  |
NUT |
| 52 |  |
COVER |
