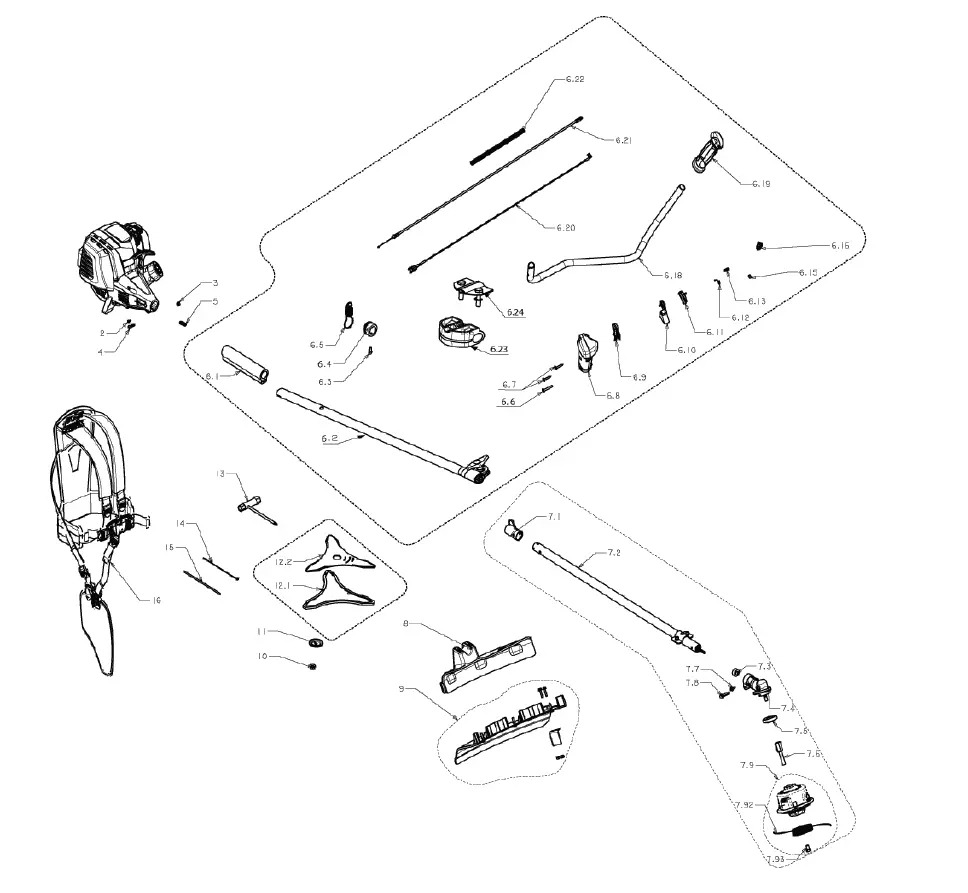

Штанга, Ручки, Редуктор
Штанга, Ручки, Редуктор
| П-п | Арт | Название |
|---|---|---|
| 2 |  |
SCREW |
| 3 |  |
NUT PBC254YES |
| 4 |  |
SCREW |
| 5 |  |
SPRING |
| 6 |  |
TUBE |
| 6.1 |  |
HANDLE PIECE |
| 6.2 |  |
TUBE |
| 6.3 |  |
SCREW |
| 6.4 |  |
COLLAR |
| 6.5 |  |
SPRING |
| 6.6 |  |
SCREW |
| 6.7 |  |
SCREW |
| 6.8 |  |
HANDLE HALF |
| 6.9 |  |
LOCKING PART |
| 6.10 |  |
TRIGGER |
| 6.11 |  |
KNOB |
| 6.12 |  |
SPRING |
| 6.13 |  |
SPRING |
| 6.14 |  |
HANDLE |
| 6.15 |  |
NUT |
| 6.16 |  |
SWITCH |
| 6.18 |  |
HANDLE BAR |
| 6.19 |  |
HANDLE PIECE |
| 6.20 |  |
WIRE |
| 6.21 |  |
CABLE |
| 6.22 |  |
GUARD |
| 6.23 |  |
BRACKET |
| 6.24 |  |
CLAMP |
| 7.1 |  |
PLUG |
| 7.2 |  |
TUBE |
| 7.3 |  |
SPACER |
| 7.4 |  |
GEAR BOX |
| 7.5 |  |
FLANGE |
| 7.6 |  |
DRIVING SHAFT |
| 7.7 |  |
SCREW |
| 7.8 |  |
SCREW |
| 7.9 |  |
HEAD |
| 7.92 |  |
50M NYLON 2.4MM |
| 7.93 |  |
SCREW |
| 8 |  |
GUARD |
| 9 |  |
GUARD |
| 10 |  |
CUTTER NUT |
| 11 |  |
WASHER |
| 12.1 |  |
KNIFE PROTECTION |
| 12.2 |  |
blade D.200 X 25.4 X 3D |
| 13 | CAP WRENCH | |
| 14 | WIRE | |
| 15 | ROD | |
| 16 | BAND |
