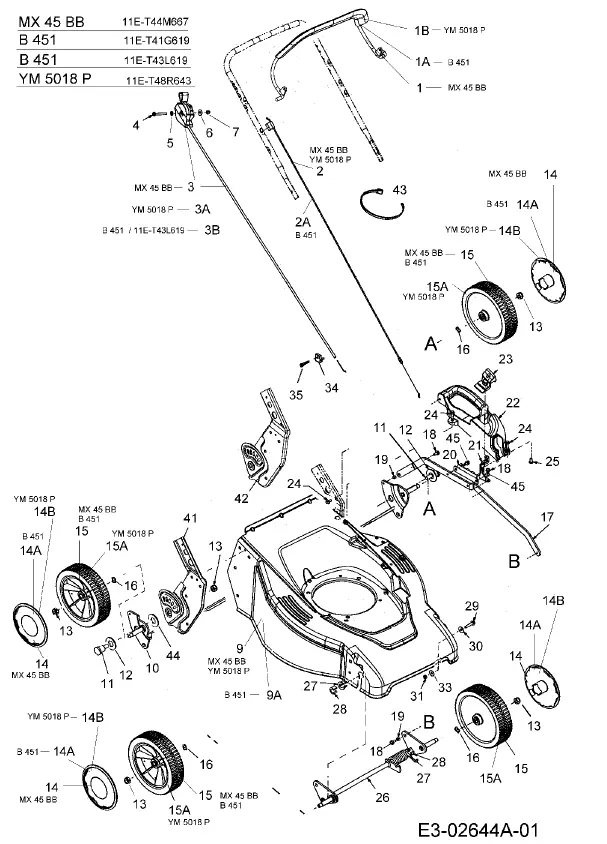

Wheels, Cutting hight adjustment
Wheels, Cutting hight adjustment
| П-п | Арт | Название |
|---|---|---|
| 1 | BRAKE BAIL | |
| 1A | BRAKE BAIL MODIFIED ERGO | |
| 1B | BRAKE BAIL | |
| 2 | BRAKE CABLE | |
| 2A | CBL:CONT:1210mm EXPORT:ERS | |
| 3 | THROTTLE CONTROL + CABLE B&S | |
| 3A | B&S - SCHWARZ | |
| 3B | THROTTLE CABLE TECUMSEH | |
| 4 | SCR:M6x50mm:DIN 7985 | |
| 5 | WASH: FLAT: 6.4x12x1.6 | |
| 6 | WASH:FLAT:6.4 IDX18OD DIN 9021 | |
| 7 | NUT:HEXLK:M6-1:NYLON:DIN 985 | |
| 9 | DECK:45cm:CENT HA | |
| 9A | DECK:45cm:CENT HA | |
| 10 | BRKT ASM:PIVOT CENT HGT ADJ | |
| 11 | M10x1.25 | |
| 12 | WASH:FLAT:19mm x 40mm x 2.5mm | |
| 13 | NUT:HEX:M10x1.25 DIN 985 | |
| 14 | HUBCAP:WHL:T-DECK:MOSS GREEN | |
| 14A | HUBCP:WHL:\\\"T\\\" | |
| 14B | HUBCP:WHL:\\\"T\\\" YARDMAN W/SPRIG | |
| 15 | WHL:COMP:500x50 IDLE ELLIPSE | |
| 15A | WHL:COMP:500x50 IDLE ELLIPSE | |
| 16 | WASH:WAVE:.510x.750 x.017 | |
| 17 | FINISH:PAINT | |
| 18 | SCR:M6x1:12 MM:DIN 7500 | |
| 19 | SPACER:6.60mm ID x9mm OD x5.69 | |
| 20 | BRKT:ADJ:HT | |
| 21 | BRKT:SPR:HGT ADJ | |
| 22 | HNDL:HGT ADJ:\\\"T\\\" | |
| 23 | BUT:HGT ADJ | |
| 24 | SCR:M6x1:25mm:DIN 7500 | |
| 25 | SCR:HL:1/4-20:.5:PANPHI | |
| 26 | AXLE ASM:WHL | |
| 27 | BRG:FLG:HEX SPLIT .500 ID | |
| 28 | SPCR:CLIP:12.5mm ID x 13 LG | |
| 29 | HEX. SCREW M8x35 DIN 933-8.8 | |
| 30 | WASH:FLAT:10.5IDX30OD:DIN 9021 | |
| 31 | NUT:HEXLK:M8-1.25 NYLON DIN985 | |
| 33 | washer | |
| 34 | CLAMP:CASING | |
| 35 | HEXSCREW:T:10-32:.625:HXINDWSH | |
| 41 | BRKT:HNDL:RH \\\"T\\\" REAR DIS RWD | |
| 42 | BRKT:HNDL:LH: \\\"T\\\" PUSH | |
| 43 | CABLE TIE | |
| 44 | HEIGHT ADJUSTMENT BEARING | |
| 45 | SCREW:TT:1/4-20:0.375:HXINDWSH |
