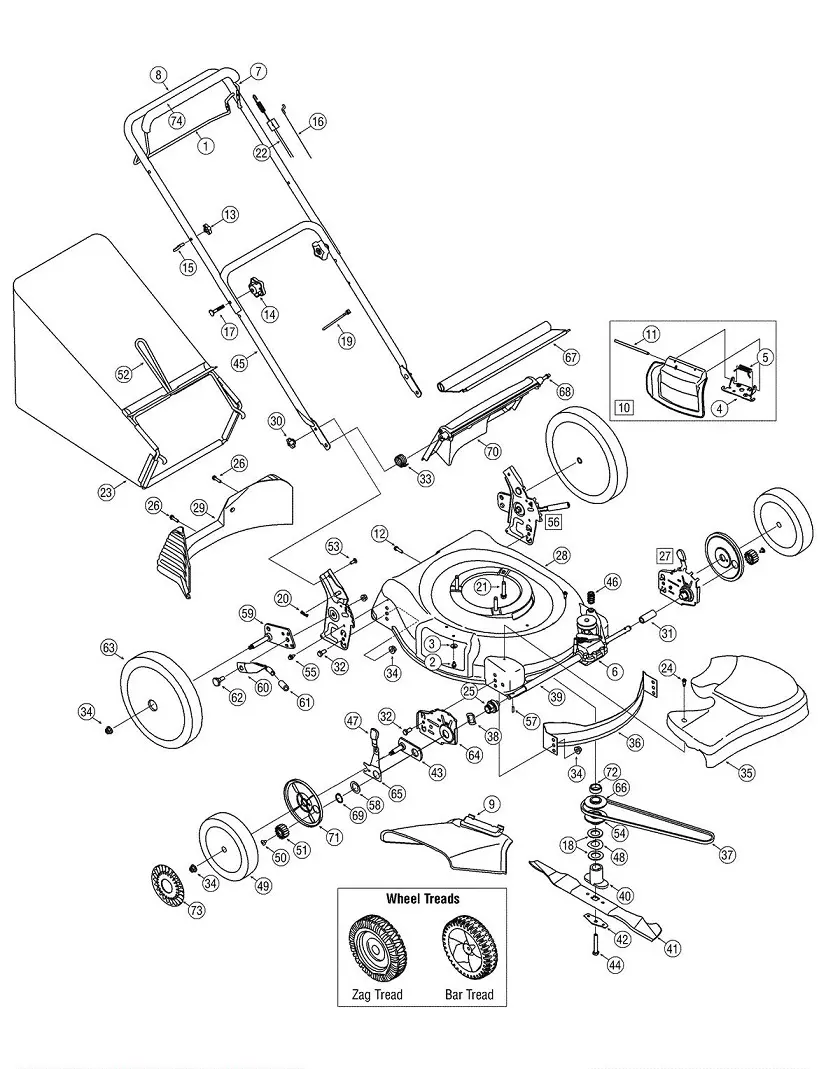

Косилка в сборе
Косилка в сборе
| П-п | Арт | Название |
|---|---|---|
| 1 | Drive Control | |
| 2 | TT Screw 1/4-20x0.5 | |
| 3 | Bell Washer.265 x 0.75 | |
| 4 | Deflector Chute Adapter | |
| 5 | Torsion Spring | |
| 6 | Transmission Assembly | |
| 7 | Blade Control | |
| 8 | Upper Handle | |
| 9 | Chute Deflector | |
| 10 | Mulch Plug Assembly | |
| 11 | Hinge Pin | |
| 12 | Screw, Machine, 1/4-20 x .500 | |
| 13 | Handle Knob | |
| 14 | StarKnob | |
| 15 | Eye Bolt | |
| 16 | ЗА CABLE 37.375LG | |
| 17 | Carriage Bolt 5/16-18x2.0 | |
| 18 | Washer, Flat, 1.00 x 1.25 x .107 | |
| 19 | Cable Anchor | |
| 20 | Pin, Cotter, .072 Dia.x 1.13 | |
| 21 | Self-Tapping Sems Screw | |
| 22 | Drive Cable-51\\\" | |
| 23 | Grass Bag | |
| 24 | Shoulder Screw # 12 -24 | |
| 25 | Front Bearing Assembly | |
| 26 |  |
Screw, 1/4-15x1.000 |
| 26 |  |
Screw, 1/4-15x1.000 |
| 27 |  |
Height Adjustment Ass\\\'y - RH |
| 27 |  |
Height Adjustment Ass\\\'y - LH |
| 28 |  |
21\\\" Deck |
| 29 |  |
Rear Baffle |
| 30 |  |
Wing Nut |
| 31 |  |
Slev. Spacer 1.4\\\" Lg. |
| 32 |  |
Hex Screw, 3/8-16 x.75 |
| 32 |  |
Hex Screw, 3/8-16 x.75 |
| 33 |  |
Torsion Spring - RH |
| 34 |  |
Flange Lock Nut, 3/8-16 |
| 35 |  |
Transmission Cover - Black |
| 35 |  |
Transmission Cover-Yellow |
| 36 |  |
Front Baffle |
| 37 |  |
Drive Belt |
| 38 |  |
Wave Washer, 1.5 x 1.0 x .029 |
| 39 |  |
Sleeve Spacer 8.985” Lg. |
| 40 |  |
Blade Adapter |
| 41 |  |
Mulching Blade |
| 42 |  |
Blade Bell Support |
| 43 |  |
Pivot Plate Assembly |
| 44 |  |
Hex Screw 3/8-24 x 2.50 |
| 45 |  |
Lower Handle |
| 46 |  |
Belt Tension Spring |
| 47 |  |
Adjustment Knob |
| 48 |  |
Wash, Sprg, 1.005 x 1.825 x .048 |
| 49 |  |
Front Wheel, 8x1.8, Bar, Gray |
| 49 |  |
Front Wheel, 8 x 1.8 |
| 50 |  |
Screw, 1/4-20 X .390 |
| 51 |  |
Gear 14T RH FWD |
| 51 |  |
Gear 14TLH FWD |
| 52 |  |
Grass Bag Frame |
| 53 |  |
Carriage Bolt 1/4-20 |
| 54 |  |
Half Pulley: Key 25mm x 2.62 OD |
| 55 |  |
T T Scr. w/Washer 1/4-20 x.625 |
| 56 |  |
Rear Handle Bracket Assy. - LH |
| 56 |  |
Rear Handle Bracket Assy. - RH |
| 57 |  |
Pin |
| 58 |  |
Washer |
| 59 |  |
Rear Pivot Arm Assy - RH |
| 59 |  |
Rear Pivot Arm Assy - LH |
| 60 |  |
Rear Spring Lever |
| 61 |  |
Foam Grip |
| 62 |  |
Shoulder Bolt .500\\\" Dia. x .375\\\" Lg. |
| 63 |  |
Rear Wheel, 12 x 1.8, Bar, Gray |
| 63 |  |
Rear Wheel, 12 x 1.8, Bar, Yellow |
| 64 |  |
Height Adjuster Plate - RH |
| 64 |  |
Height Adjuster Plate - LH |
| 65 |  |
Front Lever-RH |
| 65 |  |
Front Lever-LH |
| 66 | Half Pulley: Upper 25mm x 2.62 | |
| 67 | TrailshiekJ | |
| 68 | Pivot Rod | |
| 69 | Snap Ring | |
| 70 | Rear Discharge Door | |
| 71 | Wheel Dust Cap | |
| 72 | Spcr, Slev, 25mm x 1.375 x .620 | |
| 73 | Hubcap - Radial Spoke If equipped | |
| 74 | Deluxe Bail Cover If equipped |
