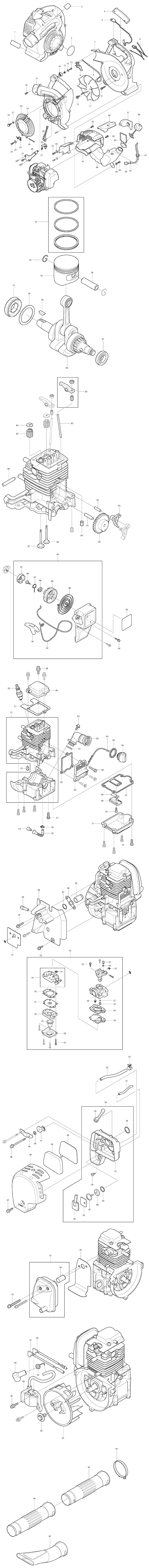

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
CAUTION LABEL |
| 2 |  |
BHX2501 MODEL NO.LABEL |
| 3 |  |
CAUTION LABEL |
| 4 |  |
GRIP |
| 5 |  |
SWITCH COMPLETE |
| 6 |  |
LEAD UNIT |
| 7 |  |
VOLUTE CASE R |
| 8 |  |
CONTROL CABLE |
| 9 |  |
THROTTLE LEVER |
| 10 |  |
H.S.H. BOLT M5X30 WITH WR (NEW) |
| 11 |  |
FAN 180 |
| 12 |  |
HEX SOCKET HEAD BOLT M6X20 WR |
| 13 |  |
TAPPING SCREW BT 5X16 |
| 14 |  |
FLAT WASHER 4 |
| 15 |  |
COMPRESSION SPRING 8 |
| 16 |  |
LOCK BUTTON |
| 17 |  |
VOLUTE CASE L ASSEMBLY |
| 18 |  |
TAPPING SCREW BT 5X16 |
| 19 |  |
O RING 3 |
| 20 | PROTECTOR | |
| 21 | GASKET | |
| 22 | THUMB SCREW M4 | |
| 23 | TAPPING SCREW BT 5X16 | |
| 24 | FLAT WASHER 5 | |
| 25 | TORSION SPRING 5 | |
| 26 | ROD 4 | |
| 27 | TAPPING SCREW BT 5X16 | |
| 28 | SWITCH COVER | |
| 29 | SWITCH UNIT | |
| 30 | SWITCH LEVER | |
| 31 | COMPRESSION SPRING 4 | |
| 32 | TAPPING SCREW BT 5X16 | |
| 33 | FLAT WASHER 4 | |
| 34 | INNER COVER | |
| 35 | TAPPING SCREW BT 5X16 | |
| 36 | PLUG COVER | |
| 37 | OIL GUARD | |
| 38 | FUEL TANK CAP ASSEMBLY | |
| 39 | PAN HEAD SCREW M4X16 | |
| 40 | CAUTION PLATE | |
| 41 | TUBE COMPLETE | |
| 42 | HOSE CLAMP | |
| 43 | GASOLINE FILTER | |
| 44 | TAPPING SCREW BT 5X16 | |
| 45 | FLAT WASHER 5 | |
| 46 | FUEL TANK | |
| 47 | ENGINE COVER | |
| 48 | H.S.H.BOLT M5X16 WITH WR | |
| 49 | ROCKER COVER COMPLETE | |
| 50 | SPARK PLUG | |
| 51 | ROCKER COVER GASKET | |
| 52 | CYLINDER BLOCK SET | |
| 53 | CHECK VALVE | |
| 54 | OIL WEIGHT | |
| 55 | OIL TUBE | |
| 56 | HOSE CLAMP | |
| 57 | HEX. SOCKET HEAD BOLT M5X14 | |
| 58 | CAM GEAR COVER GASKET | |
| 59 | CAM GEAR COVER | |
| 60 | HEX. SOCKET HEAD BOLT M5X14 | |
| 61 | O RING 14 | |
| 62 | H.S.H.BOLT M5X12 WITH WR | |
| 63 | OIL PIPE COMPLETE | |
| 64 | OIL GAUGE | |
| 65 | GASKET | |
| 66 | OIL CAP | |
| 67 | CASE GASKET | |
| 68 | LEAD VALVE | |
| 69 | RETAINER PLATE | |
| 70 | HEX. SOCKET HEAD BOLT M4X10 | |
| 71 | OIL CASE | |
| 72 | HEX. SOCKET HEAD BOLT M5X14 | |
| 73 | PISTON RING SET | |
| 74 | CLIP | |
| 75 | PISTON | |
| 76 | PISTON PIN | |
| 77 | OIL SEAL 12 | |
| 78 | FLAT WASHER 23 | |
| 79 | WOODRUFF KEY 3 | |
| 80 | CRANKSHAFT ASS. (NEW) | |
| 81 | OIL SEAL 10 (NEW) | |
| 82 | ROCKER ARM ASSEMBLY | |
| 83 | ROD 2.5 | |
| 84 | SPRING RETAINER | |
| 85 | COMPRESSION SPRING 9 | |
| 86 | PIN 5 | |
| 87 | INTAKE VALVE | |
| 88 | EXHAUST VALVE | |
| 89 | SPACER | |
| 90 | CAM GEAR ASSEMBLY | |
| 91 | PIN 5 | |
| 92 | PIN 4 | |
| 93 | CAM LIFTER | |
| 94 | STARTER COVER ASSY INC. 95-102 | |
| 95 | PULLEY | |
| 96 | TAPPING SCREW 5X12 | |
| 97 | SWING ARM | |
| 98 | COLLAR | |
| 99 | REEL | |
| 100 | SPIRAL SPRING | |
| 101 | STARTER KNOB | |
| 102 | STARTER ROPE | |
| 103 | MAKITA LOGO LABEL | |
| 104 | PAN HEAD SCREW M4X16 | |
| 105 | INTAKE PIPE | |
| 106 | INSULATOR GASKET | |
| 107 | O-RING 10 | |
| 108 | INSULATOR ASSY | |
| 109 | ADJUST SCREW (NEW) | |
| 110 | H.S.H.BOLT M5X18 WITH WR | |
| 111 | CARBURETOR GASKET | |
| 112 | H.S.H.BOLT M5X12 WITH WR | |
| 113 | CARBURETOR INC. 114-130 | |
| 114 | BODY PUMP ASSY INC. 115 | |
| 115 | INLET SCREEN | |
| 116 | METERING DIAPHRAGM GASKET | |
| 117 | METERING DIAPHRAGM | |
| 118 | AIR PURGE BODY | |
| 119 | PRIMER PUMP | |
| 120 | PRIMER PUMP COVER | |
| 121 | TAPPING SCREW 3X24 | |
| 122 | PAN HEAD SCREW M3X8 WITH W | |
| 123 | SWIVEL | |
| 124 | WASHER | |
| 125 | STOP RING E-3 | |
| 126 | CONICAL COMPRESSION SPRING 5-9 | |
| 127 | O RING 2 | |
| 128 | JET | |
| 129 | PUMP GASKET | |
| 130 | PUMP DIAPHRAGM | |
| 131 | HOSE CLAMP | |
| 132 | BREATHER PIPE | |
| 133 | PIPE | |
| 134 | CLEANER PLATE ASSEMBLY INC. 135-143 | |
| 135 | CHOKE LEVER | |
| 136 | O RING 15 | |
| 137 | AIR CLEANER PLATE COMPLETE | |
| 138 | CHECK VALVE | |
| 139 | O RING 14 | |
| 140 | CHECK VALVE PLATE | |
| 141 | CHECK VALVE | |
| 142 | SEPARATOR GASKET | |
| 143 | SEPARATOR PLATE | |
| 144 | AIR CLEANER ELEMENT | |
| 145 | AIR CLEANER ELEMENT | |
| 146 | AIR CLEANER COVER | |
| 147 | PAN HEAD SCREW M5X14 (NEW) | |
| 148 | PAN HEAD SCREW M5X68 | |
| 149 | PLATE | |
| 150 | GASKET | |
| 151 | CHOKE PLATE | |
| 152 | HEX SOCKET HEAD BOLT M5X40 | |
| 153 | MUFFLER,EXHAUST INC. 154 | |
| 154 | SPARK ARRESTER | |
| 155 | MUFFLER GASKET | |
| 156 | LEAD WIRE | |
| 157 | LEAD WIRE | |
| 158 | PLUG CAP | |
| 159 | PLUG CAP SPRING | |
| 160 | IGNITION COIL | |
| 161 | H.S.H.BOLT M4X20 WITH WR | |
| 162 | HEX HEAD BOLT M6X16 | |
| 163 | FLYWHEEL | |
| 164 | HOSE CLAMP | |
| 165 | NOZZLE | |
| 166 | NOZZLE | |
| 167 | NOZZLE END | |
| A01 | BOX WRENCH SET |
