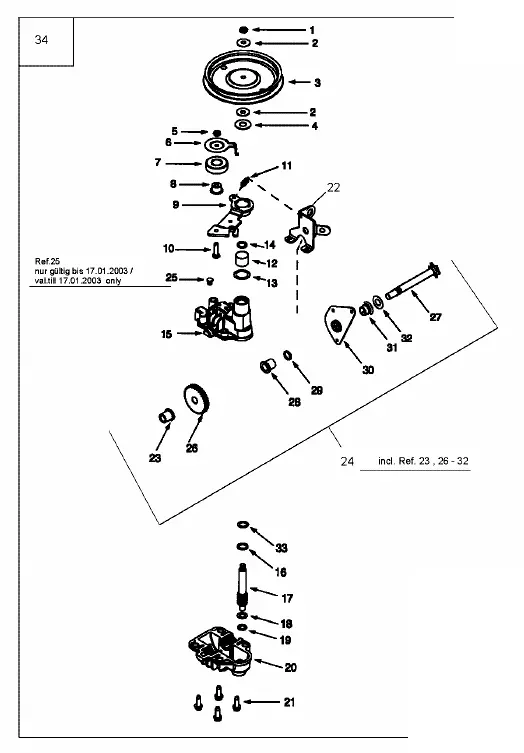

Gearbox
Gearbox
| П-п | Арт | Название |
|---|---|---|
| 1 | HEX JAM NUT 5/16-24 GR 5 712-3025 | |
| 2 | WASH:BELL:.325 x .930 x .045 FINISH:701-01001 | |
| 3 | PULLEY 756-0656 | |
| 4 | WASH:THRST:.510 X 1.120 X .060 FINISH:MTD STD 701-01001 | |
| 5 | NUT:HEXLK:1/4-28:GR2:NYLON FINISH:701-01000 | |
| 6 | GUIDE ASSY-BELT 782-7598 | |
| 7 | BRG:BALL:17x40x12:6203 FINISH: | |
| 8 | FLANGE SPACER 750-1050 | |
| 9 | BRACKET ASSY-VAR SPD 682-0027A/982-0027A | |
| 10 | SCRE.HHCS:1/4-28:1.00:GR5:SPEC FINISH:701-01000 | |
| 11 | TENSION SPRING 732-0849A / 932-0849A | |
| 12 | SPACER-PIVOT-LH 741-0682A | |
| 13 | WSH:FLAT:.865 X 1.145 X .030 736-0570/936-0570 | |
| 14 | OIL SEAL: .500 X .687 X .094 921-0329 | |
| 15 | UPPER HOUSING HALF 618-0253 | |
| 16 | WASH:THRST:.510x.750x.033 FINISH:SIEHE ZG. 936-0616 | |
| 17 | PINION SHAFT 717-1487 / 917-1487 | |
| 18 | WASH:THRST:.375x.700x.030 FINISH:MTD STD 701-01001 | |
| 19 | WASHER 736-0569/936-0569 | |
| 20 | HOUSING-LOWER 618-0252/918-0252 | |
| 21 | SCR:TT:1/4-20:.750:HXINDWSH MTD SPEC-701-01002 910-0642 | |
| 22 | CABLE BRACKET 782-7601A-0637 | |
| 23 | Thrust flange - half 741-0674/941-0674 | |
| 24 | SHAFT ASSY. 611-0066/911-0066 | |
| 25 | GREASE PLUG 721-0325 | |
| 26 | GEAR 34 TEETH 717-1469 | |
| 27 | OUTPUT SHAFT 6 TEETH 711-1168 | |
| 28 | BUSHING, BRUSH SHAFT (PM) 741-0673/941-0673 | |
| 29 | OIL SEAL: .500 X .687 X .094 921-0329 | |
| 30 | LEVER BRAKE CABLE 782-7595 | |
| 31 | BRG:FLG:HEX:.506 ID x.590 LG LG SCHWARZ | |
| 32 | WASH:THRST:.508x1.000x.020 FINISH:SIEHE ZG. 936-0369 | |
| 33 | THRUST BEARING 741-0690 | |
| 34 | TRANSMISSION COMP. 618-0263A / 918-0263A MIT KRS |
