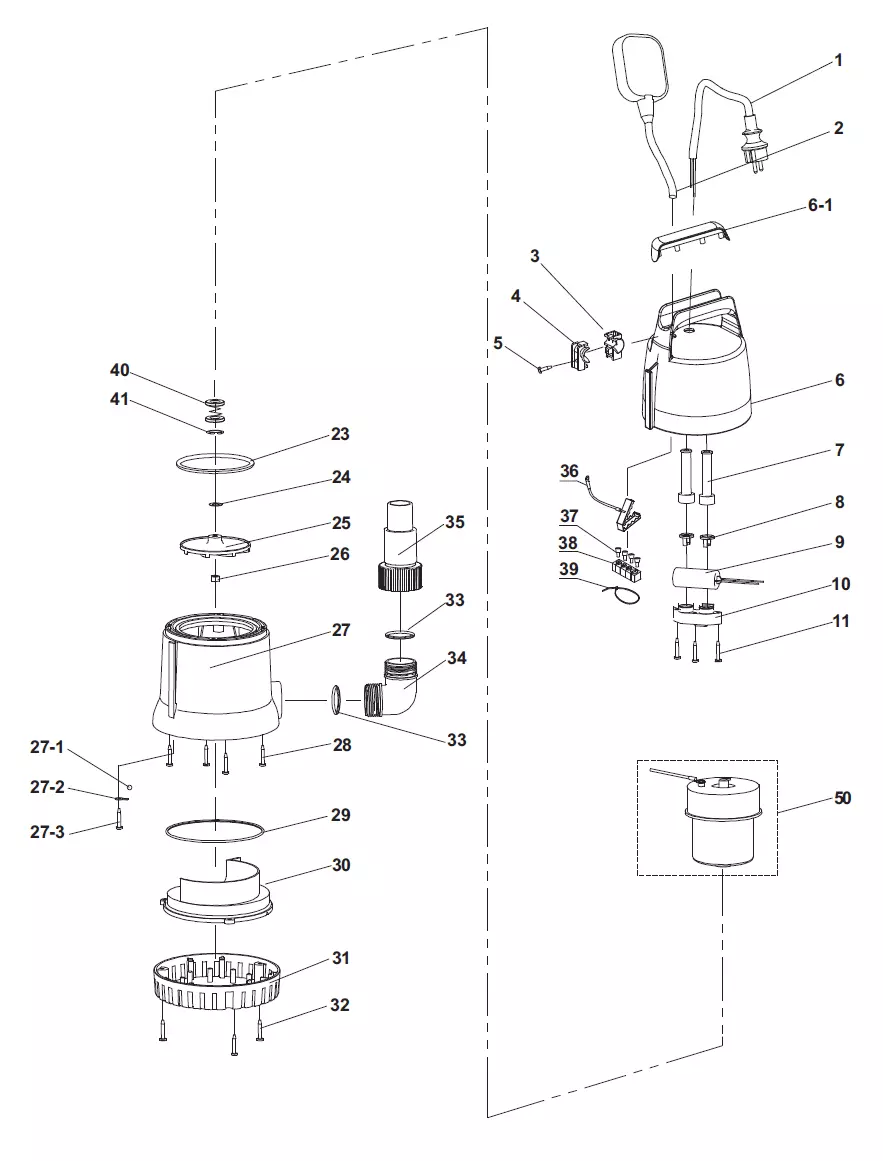

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
POWER SUPPLY CORD W. PLUG H05RN-F 3G0.75mm2,«J>7m m* 10.27m |
| 2 | FLOAT SWITCH H07RN - F 3G1 .Omm2,09.Om m*0.64m (MAKITA) | |
| 3 | WIRE CLAMP | |
| 4 | WIRE CLAMP | |
| 5 | SELF-TAPPING SCREW | |
| 6 | BACK PUMP CASING MAKITA | |
| 6-1 | HANDLE COVER MAKITA | |
| 7 | CABLE JACKET 43226 | |
| 7 | CABLE JACKET 43228 | |
| 8 | CABLE PRESS PAD | |
| 8 | CABLE PRESS PAD | |
| 9 | CAPACITOR 6pF | |
| 10 | CABLE PRESS PAD | |
| 11 | SELF-TAPPING SCREW | |
| 23 | O-RING 89x5.2 | |
| 24 | ADJUSTING GASKET d8.5*D20*H1 | |
| 25 | IMPELLER | |
| 26 | NUT | |
| 27 | MAIN PUMP SHELL | |
| 27-1 | STEEL BALL | |
| 27-2 | SMALL PADS | |
| 27-3 | SELF-TAPPING SCREW | |
| 28 | SELF-TAPPING SCREW | |
| 29 | O-RING 125x3 | |
| 30 | INNER BASE 32 | |
| 31 | BASE | |
| 32 | SELF-TAPPING SCREW | |
| 33 | O-RING 37.5x3 | |
| 34 | ELBOW | |
| 35 | OUTPUT CONNECTOR | |
| 36 | GROUND COVER | |
| 37 | NYLON SAFTY PRESS CAP | |
| 37 | NYLON SAFTY PRESS CAP | |
| 38 | RUBBER CLIP | |
| 39 | NYLON BAND | |
| 40 | MECHANICAL SEAL | |
| 41 | RETAINING RING | |
| 50 | MOTOR KIT PF0300 |
