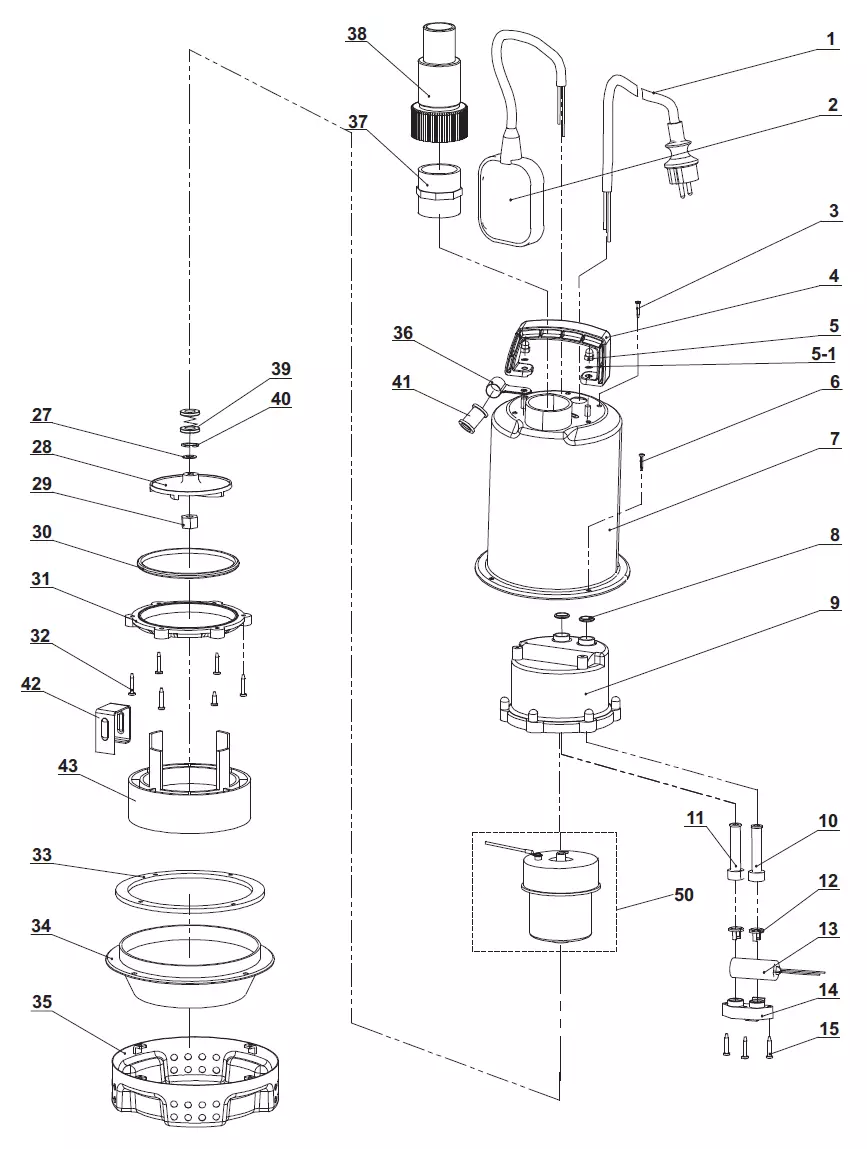

| П-п | Арт | Название |
|---|---|---|
| 1 | POWER SUPPLY CORD W. PLUG H07RN-F 3G1.0mm2,«J>9mm* 10.27m | |
| 2 | FLOAT SWITCH H07RN - F 3G1.Omm2,09.Om m’0.64m (MAKITA) | |
| 3 | SELF-TAPPING SCREW F type | |
| 4 | HANDLE MAKITA | |
| 5 | NUT | |
| 5-1 | WASHER 5*9*0.5 | |
| 6 | BOLT | |
| 7 | MAIN PUMP | |
| 8 | O-RING 14x2.65 | |
| 9 | BACK PUMP CASING | |
| 10 | CABLE JACKET 08.5 | |
| 11 | CABLE JACKET 08.5 | |
| 12 | CABLE PRESS PAD | |
| 12 | CABLE PRESS PAD | |
| 13 | CAPACITOR 16uF | |
| 14 | CABLE PRESS PAD | |
| 15 | SELF-TAPPING SCREW | |
| 27 | ADJUSTING GASKET d8.5*D20*H1 | |
| 27 | ADJUSTING GASKET d8.2*D20*H0.5 | |
| 28 | IMPELLER | |
| 29 | NUT | |
| 30 | O-RING 89x5.2 | |
| 31 | PRESSURE RING | |
| 32 | SELF-TAPPING SCREW F type | |
| 33 | SEAL 4-4.2*2(d123.5*D1 47*H2) | |
| 34 | INNER BASE | |
| 35 | BASE | |
| 36 | WIRE CLAMP | |
| 37 | SHRINKAGE JOINT | |
| 38 | OUTPUT CONNECTOR | |
| 39 | MECHANICAL SEAL | |
| 40 | RETAINING RING | |
| 41 | CABLE JACKET | |
| 42 | GROUND CONNECTOR | |
| 43 | LOCATING RING | |
| 50 | MOTOR KIT PF1100 |
