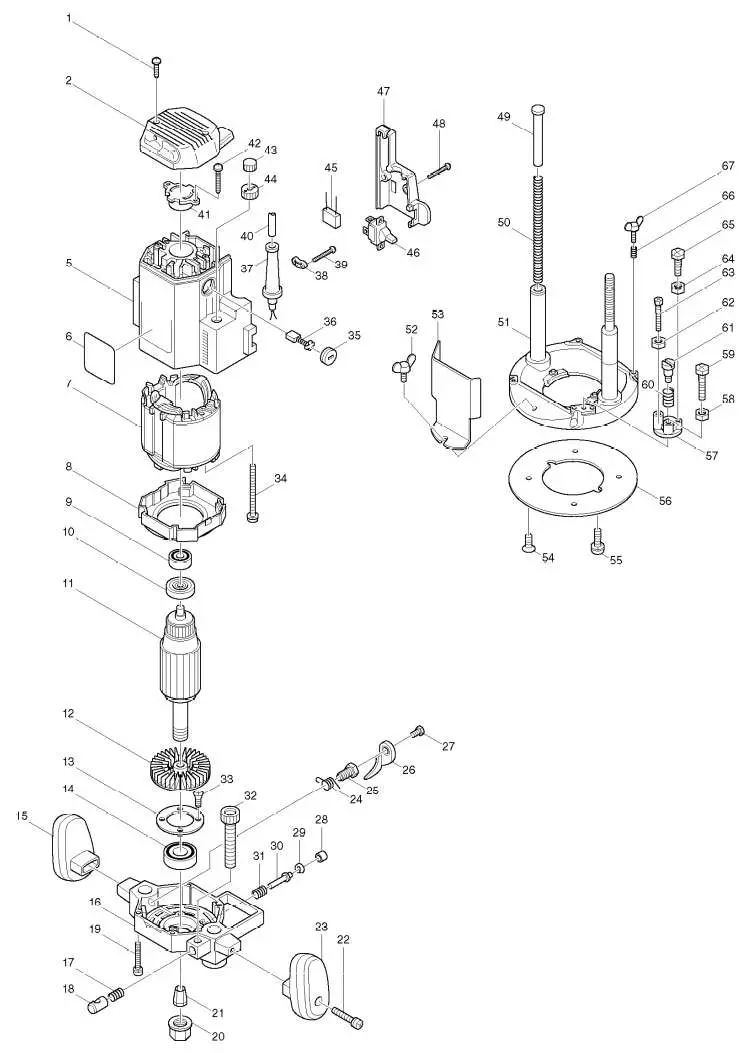

| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 5X20 | |
| 2 | REAR COVER | |
| 5 | MOTOR HOUSING COMPLETE | |
| 6 | NAME PLATE 3612 | |
| 7 | FIELD 220V | |
| 8 | BAFFLE PLATE | |
| 9 | BALL BEARING 629DDW | |
| 10 | INSULATION WASHER | |
| 11 | ARMATURE ASS\\\\\'Y 220V INC. 9,10,12 | |
| 12 | FAN 83 | |
| 13 | BEARING RETAINER 50 | |
| 14 | BALL BEARING 6004DDW | |
| 15 | KNOB (L) | |
| 16 | MOTOR BRACKET COMPLETE | |
| 17 | COMPRESSION SPRING 10 | |
| 18 | HALF NUT | |
| 19 | PAN HEAD SCREW M5X40 | |
| 20 | COLLET NUT | |
| 21 | COLLET CONE 12MM | |
| 22 | PAN HEAD SCREW M6X45 | |
| 23 | KNOB (R) | |
| 24 | TORSION SPRING 15 | |
| 25 | SET BOLT M10 | |
| 26 | LOCK LEVER | |
| 27 | HEX. BOLT M5X12 | |
| 28 | CAP 11 | |
| 29 | RETAINING RING R-12 | |
| 30 | PIN 6 | |
| 31 | COMPRESSION SPRING 7 | |
| 32 | SCREW M10X77 | |
| 33 | + COUNTERSUNK HEAD SCREW M4X14 | |
| 34 | PAN HEAD SCREW M5X80 | |
| 35 | BRUSH HOLDER CAP 7-18 | |
| 36 | CARBON BRUSH CB-203 фото аналога | |
| 37 | CORD GUARD 9.3-90 | |
| 38 | STRAIN RELIEF | |
| 39 | TAPPING SCREW 4X18 | |
| 40 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 41 | BEARING BOX | |
| 42 | TAPPING SCREW 4X18 | |
| 43 |  |
NUT M10 |
| 44 |  |
NYLON NUT M10 |
| 45 |  |
NOISE SUPPRESSOR |
| 46 |  |
SWITCH |
| 47 |  |
COVER |
| 48 |  |
TAPPING SCREW 4X18 |
| 49 |  |
POLE |
| 50 |  |
COMPRESSION SPRING 11 |
| 51 |  |
BASE COMPLETE |
| 52 |  |
WING BOLT M5X10 |
| 53 |  |
CHIP DEFLECTOR |
| 54 |  |
COUNTERSUNK HEAD SCREW M4X10 |
| 56 |  |
BASE PLATE |
| 57 |  |
STOPPER ASS\\\\\'Y INC. 58,59,62-65 |
| 58 |  |
HEX. NUT M5 |
| 59 |  |
+ HEX. BOLT M5X28 |
| 60 |  |
COMPRESSION SPRING 12 |
| 61 |  |
- FLAT HEAD SCREW M6 |
| 62 |  |
HEX. NUT M5 |
| 63 |  |
+ HEX. BOLT M5X40 |
| 64 |  |
HEX. NUT M5 |
| 65 |  |
+ HEX. BOLT M5X16 |
| 66 |  |
COMPRESSION SPRING 7 |
| 67 |  |
WING BOLT M5X15 |
| A01 |  |
STRAIGHT GUIDE |
| A02 |  |
WRENCH 8 |
| A03 |  |
WRENCH 24 |
| A06 |  |
COLLET SLEEVE FOR 8 MM BIT |
| A07 |  |
COLLET SLEEVE FOR 6 MM BIT |
| A08 |  |
WING BOLT M6X12 |
| A09 |  |
SPRING WASHER 6 |
| A10 |  |
FLAT WASHER 6 |
| A11 |  |
GUIDE HOLDER ASS\\\\\'Y INC. A08-A10,A12 |
| A12 |  |
SCREW M10X34 |
| E01 |  |
DUST NOZZLE |
| E02 |  |
COMPRESSION SPRING 5 |
| E03 |  |
TENSION SPRING 5 |
| E04 |  |
COMPRESSION SPRING 4 |
| E05 |  |
PIN 3 |
| E06 |  |
TAPPING SCREW 4X18 |
| E07 |  |
SET BOLT M5X10 |
| E08 |  |
CAP 14 |
| E09 |  |
LOCK PLATE |
| E10 |  |
SWITCH LEVER |
| E11 |  |
KNOB COVER |
| E12 |  |
LOCK OFF BUTTON |
| E15 |  |
FLAT WASHER 5 |
