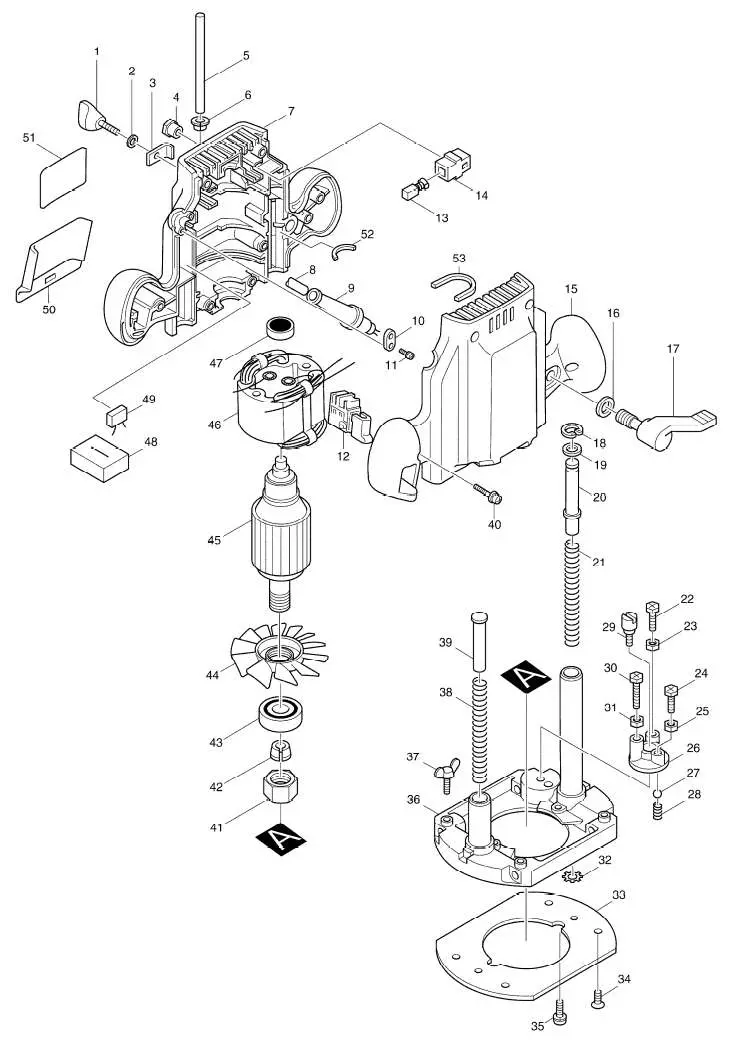

| П-п | Арт | Название |
|---|---|---|
| 1 | SCREW M5X20 | |
| 2 | FLAT WASHER 5 | |
| 3 | PRESSURE PLATE | |
| 4 | HEX. NUT M8 | |
| 5 | STOPPER POLE | |
| 6 | DEPTH POINTER | |
| 7 | HOUSING SET INC. 15 | |
| 8 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 9 | CORD GUARD 8-85 | |
| 10 | STRAIN RELIEF | |
| 11 | PAN HEAD SCREW M4X18 | |
| 12 | SWITCH SGE115CDY-5 | |
| 13 | CARBON BRUSH CB-106 | |
| 14 | BRUSH HOLDER | |
| 15 | HOUSING SET INC. 7 | |
| 16 | FLAT WASHER 8 | |
| 17 | LEVER 45 фото | |
| 18 | RETAINING RING R-15 | |
| 19 | FLAT WASHER 10 | |
| 20 | PIN 10 | |
| 21 | COMPRESSION SPRING 10 | |
| 22 | + HEX. BOLT M5X20 | |
| 23 | HEX. NUT M5 | |
| 24 | + HEX. BOLT M5X16 | |
| 25 | HEX. NUT M5 | |
| 26 | STOPPER ASS\\\\\'Y INC. 22-25,29-31 | |
| 27 | STEEL BALL 7.1 | |
| 28 | COMPRESSION SPRING 5 | |
| 29 | - FLAT HEAD SCREW M6 | |
| 30 | + HEX. BOLT M5X28 | |
| 31 | HEX. NUT M5 | |
| 32 | SELF LOCK 15 | |
| 33 | BASE PLATE | |
| 34 | COUNTERSUNK HEAD SCREW M4X10 | |
| 35 | PAN HEAD SCREW M5X10 | |
| 36 | BASE COMPLETE | |
| 37 | WING BOLT M5X15 | |
| 38 | COMPRESSION SPRING 10 | |
| 39 | PIN 10 | |
| 40 | PAN HEAD SCREW M5X25 | |
| 41 | COLLET NUT | |
| 42 | COLLET CONE 8MM | |
| 43 | BALL BEARING 6003DDW | |
| 44 | FAN 72 | |
| 45 | ARMATURE ASS\\\\\'Y 220V INC. 22-25,29-31 | |
| 46 | FIELD ASS\\\\\'Y 220V | |
| 47 | BALL BEARING 608LLB | |
| 48 | SPONGE | |
| 49 | NOISE SUPPRESSOR | |
| 50 | CHIP DEFLECTOR | |
| 51 | NAME PLATE 3620 | |
| 52 | FELT | |
| 53 | FELT | |
| 54 | COMPRESSION SPRING 7 | |
| 401 | WRENCH 13 | |
| 402 | WRENCH 22 | |
| 403 | WRENCH 8 | |
| 405 | COLLET CONE 6MM | |
| 406 | STRAIGHT GUIDE | |
| 905 | VACUUM HEAD SET |
