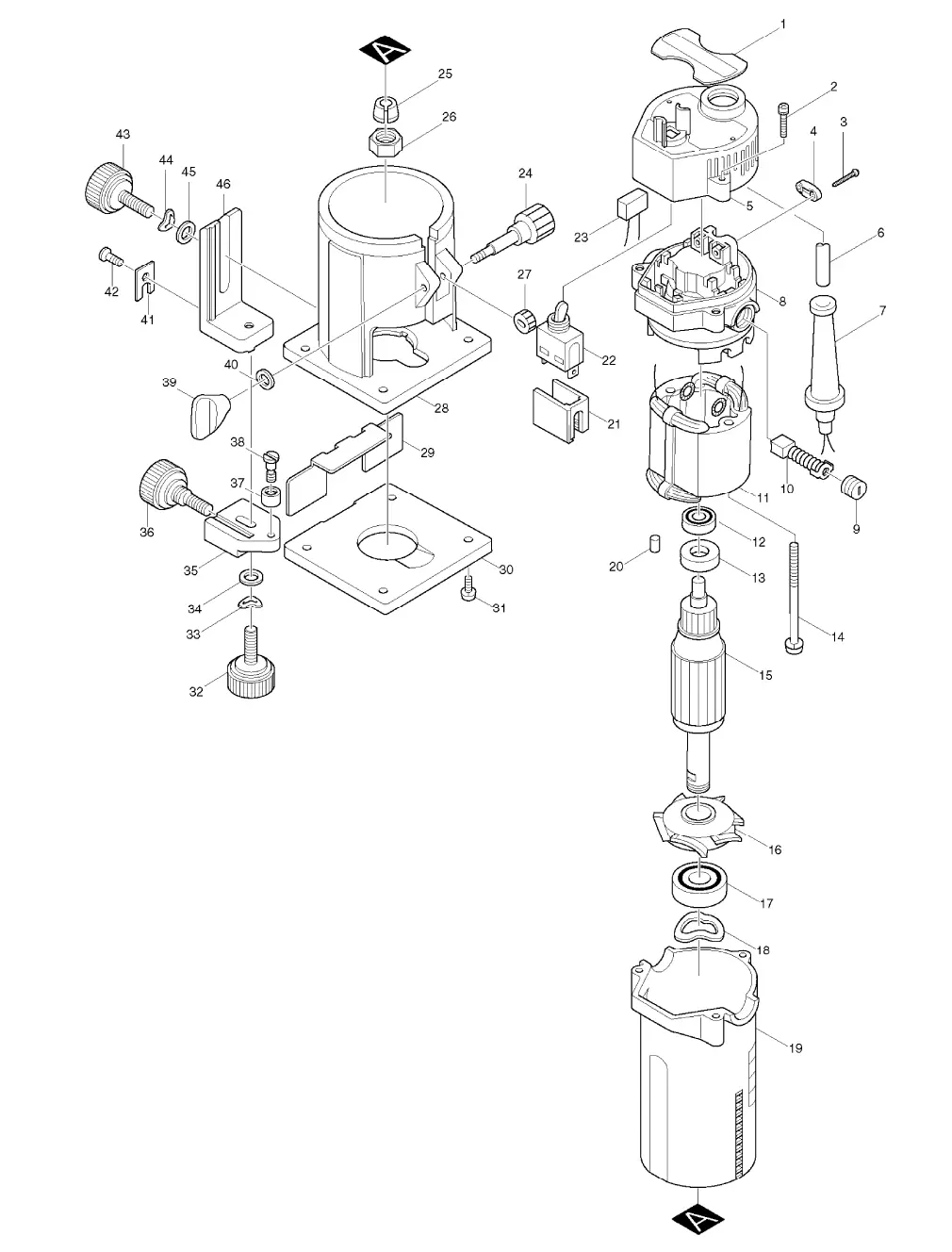

| П-п | Арт | Название |
|---|---|---|
| 1 | NAME PLATE 3703 | |
| 2 | PAN HEAD SCREW M4X40 | |
| 3 | Tapping screw 4x18 OLD | |
| 4 | CORD CLAMP | |
| 5 | REAR COVER | |
| 6 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 7 | CORD GUARD 8-85 | |
| 8 | MOTOR REAR HOUSING INC. 20 | |
| 9 | BRUSH HOLDER CAP 5-8 | |
| 10 | CARBON BRUSH CB-411 | |
| 11 | FIELD ASS\\\'Y 220V | |
| 12 | BALL BEARING 627LB | |
| 13 | INSULATION WASHER | |
| 14 | PAN HEAD SCREW M4X70 | |
| 15 | ARMATURE ASS\\\'Y 220V INC. 12,13,16,17 | |
| 16 | Fan 52 OLD | |
| 17 | BALL BEARING 6002LLUX OLD | |
| 18 | WAVE WASHER 23 | |
| 19 | MOTOR HOUSING | |
| 20 | RUBBER PIN 4 | |
| 21 | SWITCH HOLDER | |
| 22 | SWITCH STE206K | |
| 23 | NOISE SUPPRESSOR | |
| 24 | SCREW M5X33 | |
| 25 | Collet cone 6mm OLD | |
| 26 | COLLET NUT 6 | |
| 27 | SPUR GEAR 16 | |
| 28 | BASE | |
| 29 | Chip deflector OLD | |
| 30 | BASE PROTECTOR | |
| 31 | PAN HEAD SCREW M4X10 | |
| 32 | Thumb screw M6x25 | |
| 33 | WAVE WASHER 6 | |
| 34 | FLAT WASHER 6 | |
| 35 | Trimmer guide | |
| 36 | Thumb screw M6 | |
| 37 | Roller 11 | |
| 38 | Flat head screw M5 | |
| 39 | WING NUT M5 | |
| 40 | FLAT WASHER 5 | |
| 41 | HOOK | |
| 42 | Countersunk head screw M4 | |
| 43 | Thumb screw M6x25 | |
| 44 | WAVE WASHER 6 | |
| 45 | FLAT WASHER 6 | |
| 46 | ____ | |
| 47 | ______ | |
| A01 | CAP SQUARE NECK BOLT M6X20 | |
| A02 | GUIDE PLATE | |
| A03 | STRAIGHT GUIDE ASS\\\'Y | |
| INC. | ||
| A04 | FLAT WASHER 6 | |
| A05 | WAVE WASHER 6 | |
| A06 | WING NUT M6 | |
| A07 | TEMPLET GUIDE 10 | |
| A08 | WRENCH 10 | |
| A09 | WRENCH 17 | |
| A10 | ______ |
