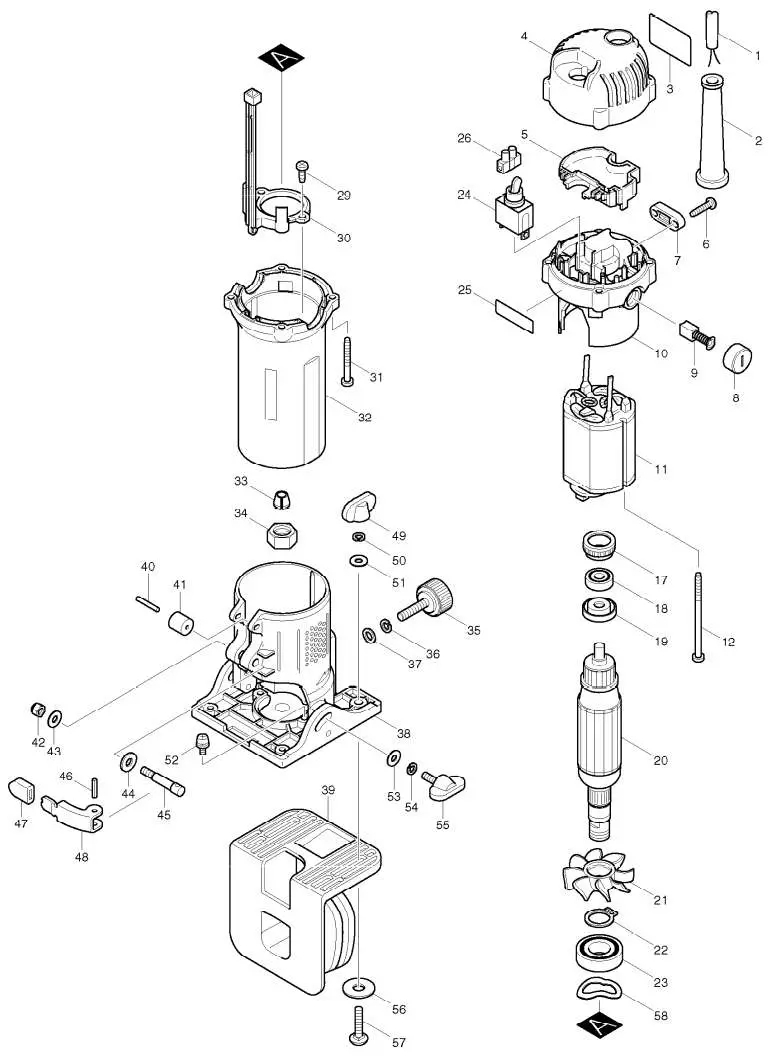

| П-п | Арт | Название |
|---|---|---|
| 1 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 2 | CORD GUARD 8-85 | |
| 3 | NAME PLATE 3708 | |
| 4 | REAR COVER | |
| 5 | CASE | |
| 6 | TAPPING SCREW 4X18 | |
| 7 | CORD CLAMP | |
| 8 | BRUSH HOLDER CAP | |
| 9 | CARBON BRUSH CB-411 | |
| 10 | MOTOR REAR HOUSING INC. 25 | |
| 11 | FIELD ASSY 240V | |
| 12 | TAPPING SCREW 4X70 | |
| 17 | RUBBER RING 19 | |
| 18 | BALL BEARING 607DDW | |
| 19 | INSULATION WASHER | |
| 20 | ARMATURE ASSY 240V INC. 18,19,21,22 | |
| 21 | FAN 48 | |
| 22 | RETAINING RING S-15 | |
| 23 | BALL BEARING 6002DDW | |
| 24 | SWITCH | |
| 25 | MAKITA LABEL | |
| 26 | TERMINAL BLOCK | |
| 29 | + TAPPING SCREW M4X12 | |
| 30 | SUPPORTER | |
| 31 | TAPPING SCREW 4X35 | |
| 32 | MOTOR HOUSING COMPLETE | |
| 33 | COLLET CONE 6MM | |
| 34 | COLLET NUT 6 | |
| 35 | SCREW M6X18 | |
| 36 | SPRING WASHER 6 | |
| 37 | FLAT WASHER 6 | |
| 38 | BASE COMPLETE | |
| 39 | TRIMMER SHOE | |
| 40 | PIN 3 | |
| 41 | ROLLER W/O PIN | |
| 42 | HEX. LOCK NUT M5-8 | |
| 43 | FLAT WASHER 5 | |
| 44 | FLAT WASHER 6 | |
| 45 | SUPPORT PIN | |
| 46 | SPRING PIN 3-14 | |
| 47 | RUBBER CAP | |
| 48 | LOCK LEVER | |
| 49 | WING NUT M5 | |
| 50 | SPRING WASHER 5 | |
| 51 |  |
FLAT WASHER 5 |
| 52 |  |
PAN HEAD SCREW M4X10 |
| 53 |  |
FLAT WASHER 5 |
| 54 |  |
SPRING WASHER 5 |
| 55 |  |
SCREW M5X15 |
| 56 |  |
FLAT WASHER 8 |
| 57 |  |
CAP SQUARE NECK BOLT M5X25 |
| 58 |  |
WAVE WASHER 23 |
| A01 |  |
TRIMMER GUIDE ASS\\\\\'Y INC A02-A08,A10 |
| A02 |  |
THUMB SCREW M6 |
| A03 |  |
+ COUNTERSUNK HEAD SCREW M4X10 |
| A04 |  |
HOOK |
| A05 |  |
- FLAT HEAD SCREW M5 |
| A06 |  |
ROLLER 11 |
| A07 |  |
GUIDE HOLDER |
| A08 |  |
FLAT WASHER 6 |
| A09 |  |
WAVE WASHER 6 |
| A10 |  |
THUMB SCREW M6X25 |
| A11 |  |
CAP SQUARE NECK BOLT M6X20 |
| A12 |  |
WAVE WASHER 6 |
| A13 |  |
TEMPLET GUIDE 10 |
| A14 |  |
WRENCH 10 |
| A15 |  |
WRENCH 17 |
| A16 |  |
WING NUT M6 |
| A17 |  |
FLAT WASHER 6 |
| A18 |  |
GUIDE PLATE |
| A19 |  |
STRAIGHT GUIDE |
| A20 |  |
STRAIGHT BITS 6 |
| E01 |  |
NOISE SUPPRESSOR |
