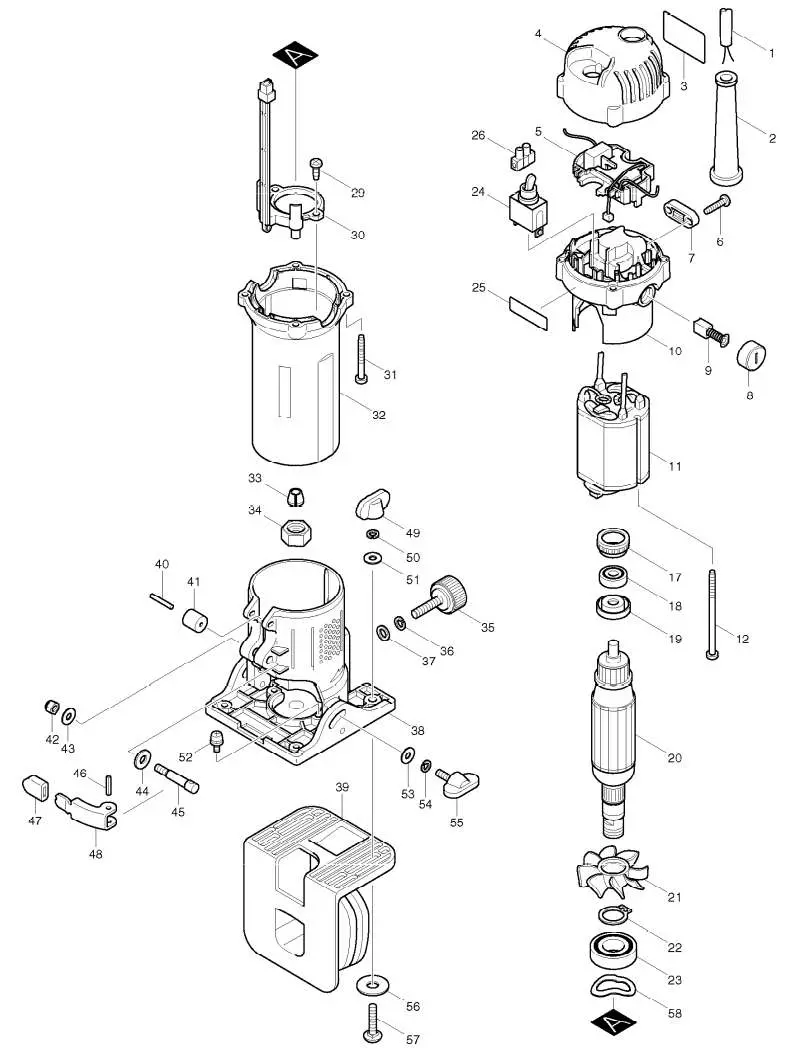

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
POWER SUPPLY CORD 1.0-2-2.5 |
| 2 |  |
CORD GUARD 8-85 |
| 3 |  |
NAME PLATE 3708F |
| 4 |  |
REAR COVER |
| 5 |  |
LED POWER SUPPLY CIRCUIT |
| 6 |  |
TAPPING SCREW 4X18 |
| 7 |  |
CORD CLAMP |
| 8 |  |
BRUSH HOLDER CAP |
| 9 |  |
CARBON BRUSH CB-411 |
| 10 |  |
MOTOR REAR HOUSING INC. 25 |
| 11 |  |
FIELD ASSY 240V |
| 12 |  |
TAPPING SCREW 4X70 |
| 17 |  |
RUBBER RING 19 |
| 18 |  |
BALL BEARING 607DDW |
| 19 |  |
INSULATION WASHER |
| 20 |  |
ARMATURE ASSY 240V INC. 18,19,21,22 |
| 21 |  |
FAN 48 |
| 22 |  |
RETAINING RING S-15 |
| 23 |  |
BALL BEARING 6002DDW |
| 24 |  |
SWITCH |
| 25 |  |
MAKITA LABEL |
| 26 |  |
TERMINAL BLOCK |
| 29 | + TAPPING SCREW M4X12 | |
| 30 | LED CIRCUIT | |
| 31 | TAPPING SCREW 4X35 | |
| 32 | MOTOR HOUSING COMPLETE | |
| 33 | COLLET CONE 6MM | |
| 34 | COLLET NUT 6 | |
| 35 | SCREW M6X18 | |
| 36 | SPRING WASHER 6 | |
| 37 | FLAT WASHER 6 | |
| 38 | BASE COMPLETE | |
| 39 | TRIMMER SHOE | |
| 40 | PIN 3 | |
| 41 | ROLLER W/O PIN | |
| 42 | HEX. LOCK NUT M5-8 | |
| 43 | FLAT WASHER 5 | |
| 44 | FLAT WASHER 6 | |
| 45 | SUPPORT PIN | |
| 46 | SPRING PIN 3-14 | |
| 47 | RUBBER CAP | |
| 48 | LOCK LEVER | |
| 49 | WING NUT M5 | |
| 50 | SPRING WASHER 5 | |
| 51 | FLAT WASHER 5 | |
| 52 | PAN HEAD SCREW M4X10 | |
| 53 | FLAT WASHER 5 | |
| 54 | SPRING WASHER 5 | |
| 55 | SCREW M5X15 | |
| 56 | FLAT WASHER 8 | |
| 57 | CAP SQUARE NECK BOLT M5X25 | |
| 58 | WAVE WASHER 23 | |
| A01 | TRIMMER GUIDE ASS\\\\\'Y INC A02-A08,A10 | |
| A02 | THUMB SCREW M6 | |
| A03 | + COUNTERSUNK HEAD SCREW M4X10 | |
| A04 | HOOK | |
| A05 | - FLAT HEAD SCREW M5 | |
| A06 | ROLLER 11 | |
| A07 | GUIDE HOLDER | |
| A08 | FLAT WASHER 6 | |
| A09 | WAVE WASHER 6 | |
| A10 | THUMB SCREW M6X25 | |
| A11 | CAP SQUARE NECK BOLT M6X20 | |
| A12 | WAVE WASHER 6 | |
| A13 | TEMPLET GUIDE 10 | |
| A14 | WRENCH 10 | |
| A15 | WRENCH 17 | |
| A16 | WING NUT M6 | |
| A17 | FLAT WASHER 6 | |
| A18 | GUIDE PLATE | |
| A19 | STRAIGHT GUIDE | |
| A20 | STRAIGHT BITS 6 | |
| A21 | FLEXIBLE HOSE DE | |
| A22 | + PAN HEAD SCREW M4X8 | |
| A23 | JOINT |
