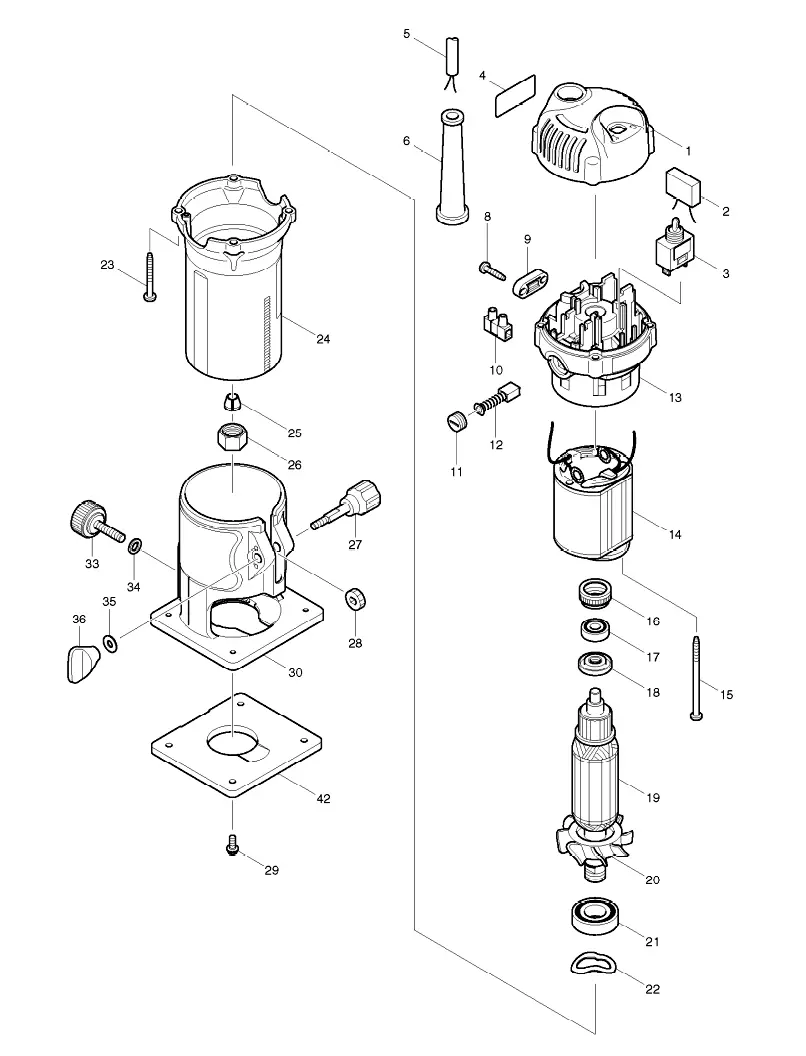

| П-п | Арт | Название |
|---|---|---|
| 1 | TOP COVER | |
| 2 | NOISE SUPPRESSOR | |
| 3 | SWITCH STL115ADT | |
| 4 | 3709 NAME PLATE | |
| 5 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 6 | CORD GUARD 8-85 | |
| 8 | TAPPING SCREW 4X18 | |
| 9 | STRAIN RELIEF | |
| 10 | TERMINAL BLOCK 1P | |
| 11 | BRUSH HOLDER CAP 5-8 | |
| 12 | CARBON BRUSH CB-411 | |
| 13 | BRACKET COMPLETE | |
| 14 | FIELD ASS\\\'Y 240V | |
| 15 | TAPPING SCREW 4X65 | |
| 16 | RUBBER RING 19 | |
| 17 | BALL BEARING 607LLB | |
| 18 | INSULATION WASHER | |
| 19 | ARMATURE ASS\\\'Y 240V INC. 17,18,20,21 | |
| 20 | FAN 52 | |
| 21 | BALL BEARING 6002LLUX | |
| 22 | WAVE WASHER 23 | |
| 23 | TAPPING SCREW 4X35 | |
| 24 | MOTOR HOUSING COMPLETE | |
| 25 | COLLET CONE 6 | |
| 26 | COLLET NUT 6 | |
| 27 | THUMB SCREW M5X33 | |
| 28 | SPUR GEAR 16 | |
| 29 | #ИМЯ? | |
| 30 | BASE | |
| 33 | THUMB SCREW M6X25 | |
| 34 | FLAT WASHER 6 | |
| 35 | FLAT WASHER 5 | |
| 36 | THUMB NUT M5 | |
| 42 | BASE PROTECTOR | |
| A01 | TRIMMER GUIDE ASS\\\'Y | |
| A02 | STRAIGHT GUIDE ASS\\\'Y | |
| A03 | TEMPLET GUIDE 10 | |
| A04 | WRENCH 10 | |
| A05 | WRENCH 17 | |
| A06 | CHIP DEFLECTOR | |
| A07 | STRAIGHT BIT 6 |
