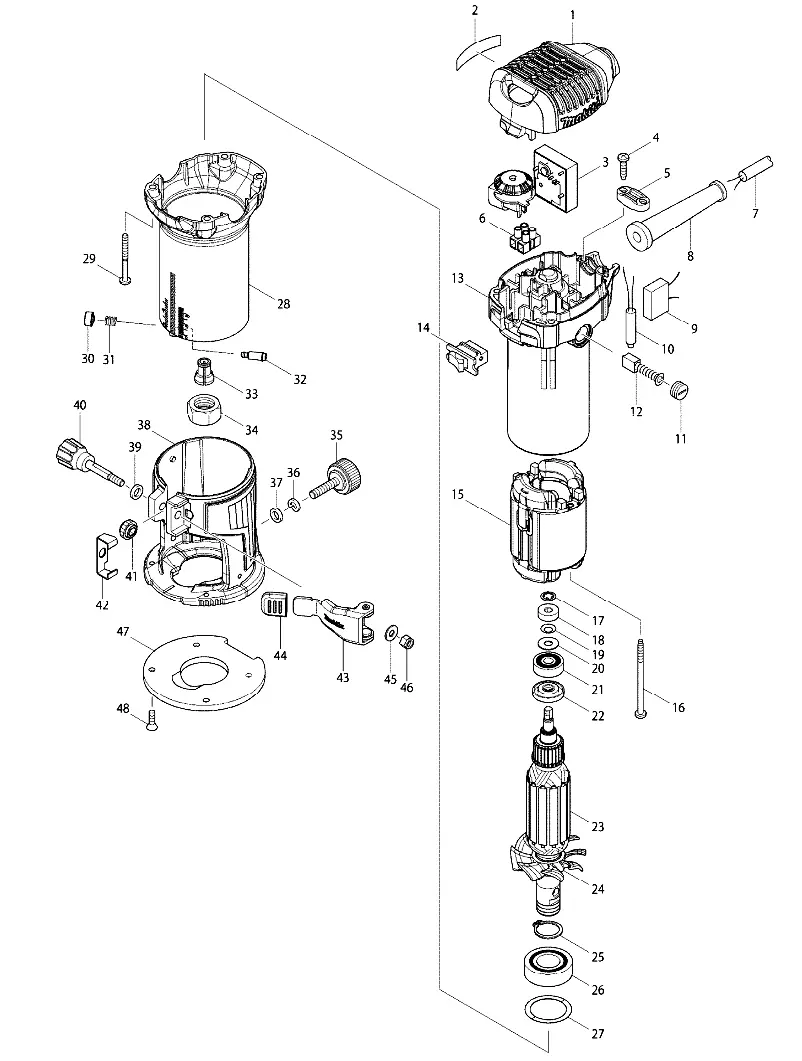

RT 0700C
| П-п | Арт | Название |
|---|---|---|
| 1 | TOP COVER | |
| 2 | RT0700C NAME PLATE | |
| 3 | CONTRLLER | |
| 4 | TAPPING SCREW 4X18 | |
| 5 | STRAIN RELIEF | |
| 6 | TERMINAL BLOCK 2P | |
| 7 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 8 | CORD GUARD 8-85 | |
| 9 | NOISE SUPPRESSOR | |
| 10 | CHOKE COIL | |
| 11 | BRUSH HOLDER CAP 5-8 | |
| 12 | CARBON BRUSH CB-411 | |
| 13 | BRACKET COMPLETE | |
| 14 | SWITCH | |
| 15 | FIELD 240V | |
| 16 | TAPPING SCREW 4X65 | |
| 17 | SELF LOCK 6 | |
| 18 | MAGNET SLEEVE | |
| 19 | THIN WASHER 6 | |
| 20 | WAVE WASHER 6 | |
| 21 | BALL BEARING 627DDW | |
| 22 | WASHER | |
| 23 | ARMATURE ASS\\\'Y 240V INC. 17-22,24-26 | |
| 24 | FAN 55 | |
| 25 | RETAINING RING S-17 | |
| 26 | BALL BEARING 6003DDW | |
| 27 | WAVE WASHER 26 | |
| 28 | OUTER HOUSING COMPLETE | |
| 29 | TAPPING SCREW 4X40 | |
| 30 | PUSH BUTTON | |
| 31 | COMPRESSION SPRING 7 | |
| 32 | PIN 4 | |
| 33 | COLLET CONE 6MM | |
| 34 | COLLET NUT | |
| 35 | THUMB SCREW M6X25 | |
| 36 | SPRING WASHER 6 | |
| 37 | FLAT WASHER 6 | |
| 38 | TRIMMER BASE COMPLETE (140739-4) | |
| 39 | FLAT WASHER 6 | |
| 40 | THUMB SCREW M5X35 | |
| 41 | SPUR GEAR 16 | |
| 42 | CAM PLATE | |
| 43 | LOCK LEVER COMPLETE | |
| 44 | RUBBER CAP | |
| 45 | FLAT WASHER 5 | |
| 46 | HEX. LOCK NUT M5-8 | |
| 47 | BASE BASE PROTECTOR (413149-1) | |
| 48 | COUNTERSUNK HEAD SCREW M4X10 | |
| A01 | STRAIGHT GUIDE ASSEMBLY | |
| A02 | DUST NOZZLE SET (194733-8) | |
| A03 | TEMPLET GUIDE 10 (195559-1) | |
| A04 | COLLET CONE 8MM | |
| A05 | WRENCH 22 | |
| A06 | WRENCH 33 | |
| A07 | WRENCH 13 | |
| A08 | TEMPLET GUIDE 16 | |
| A09 | TRIMMER GUIDE ASS\\\'Y | |
| A10 | PLUNGE BASE SET COMPO-PARTS | |
| A11 | TILT BASE SET | |
| A12 | GRIP 36 COMPLETE | |
| A13 | GUIDE HOLDER SET | |
| A14 | TOOL BAG |
