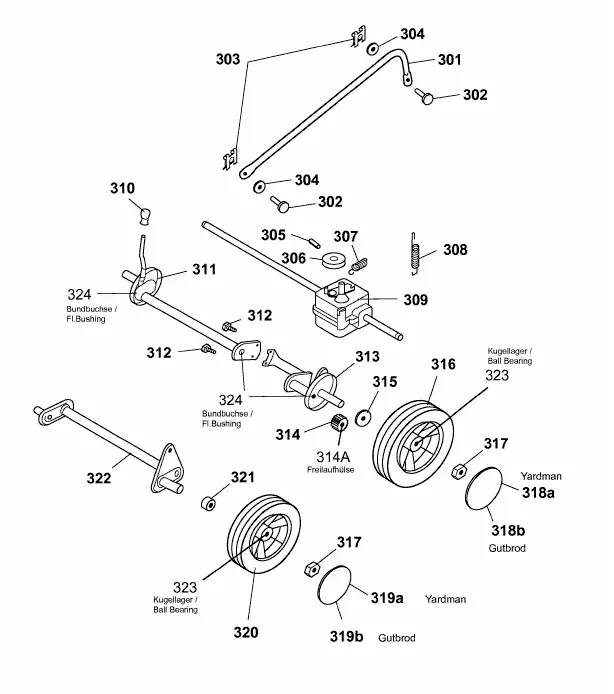

Gearbox, Wheels
Gearbox, Wheels
| П-п | Арт | Название |
|---|---|---|
| 301 | CONNECTING ROD 2.48BA ack. | |
| 302 | BOLT (SV4/SV4M) 6340214 | |
| 303 | RETAINING CLIP NACH ZEICHNUNG / 0020981 | |
| 304 | rubber washer m | |
| 305 | DOWEL PIN 1097202 // 33706 | |
| 306 | V-BELT PULLEY 1304 | |
| 307 | Zugfeder für Klauenkupplungsge triebe | |
| 308 | GEAR SPRING 2.48BA/2.53BA A | |
| 309 | clutch gear 1082001 | |
| 310 | ADJUSTING LEVER ver. | |
| 311 | REAR AXLE 2.48BA RIGHT k schwarz | |
| 312 | SCREW HICHTET | |
| 313 | REAR AXLE LEFT PAINTED BLACK 48/53 CM | |
| 314 | gear wheel 40/18 z=15 ohne Lager / TN-Lager 1082101 | |
| 314A | FREEWHEEL HF1216B INA Nr.1372 137226-2 | |
| 315 | WASHER A13 DIN9021-St verz. 1082102 | |
| 316 | DRIVING WHEEL z RAM 94 | |
| 317 | NUT M12H8 Din 985-8 16886 | |
| 318A | WHEEL CAP D200 MTD NUMMER:731-07602 | |
| 318B | WHEEL CAP MTD NUMMER:731-07603 | |
| 319A | WHEEL CAP MTD NUMMER:731-07600 | |
| 319B | WHEEL CAP MTD NUMMER:731-07601 | |
| 320 | WHEEL, 180MM z | |
| 321 | DISTANCE RING 20/12/11 achse | |
| 322 | FRONT AXLE 48 CM PAINTED schwarz | |
| 323 | BEARING 6340516 | |
| 324 | BUSH, FLANGED d=12 e 15) |
